เครื่องสำรองไฟ APC SRT รุ่น SRT10KXLI

APC SRT10KXLI

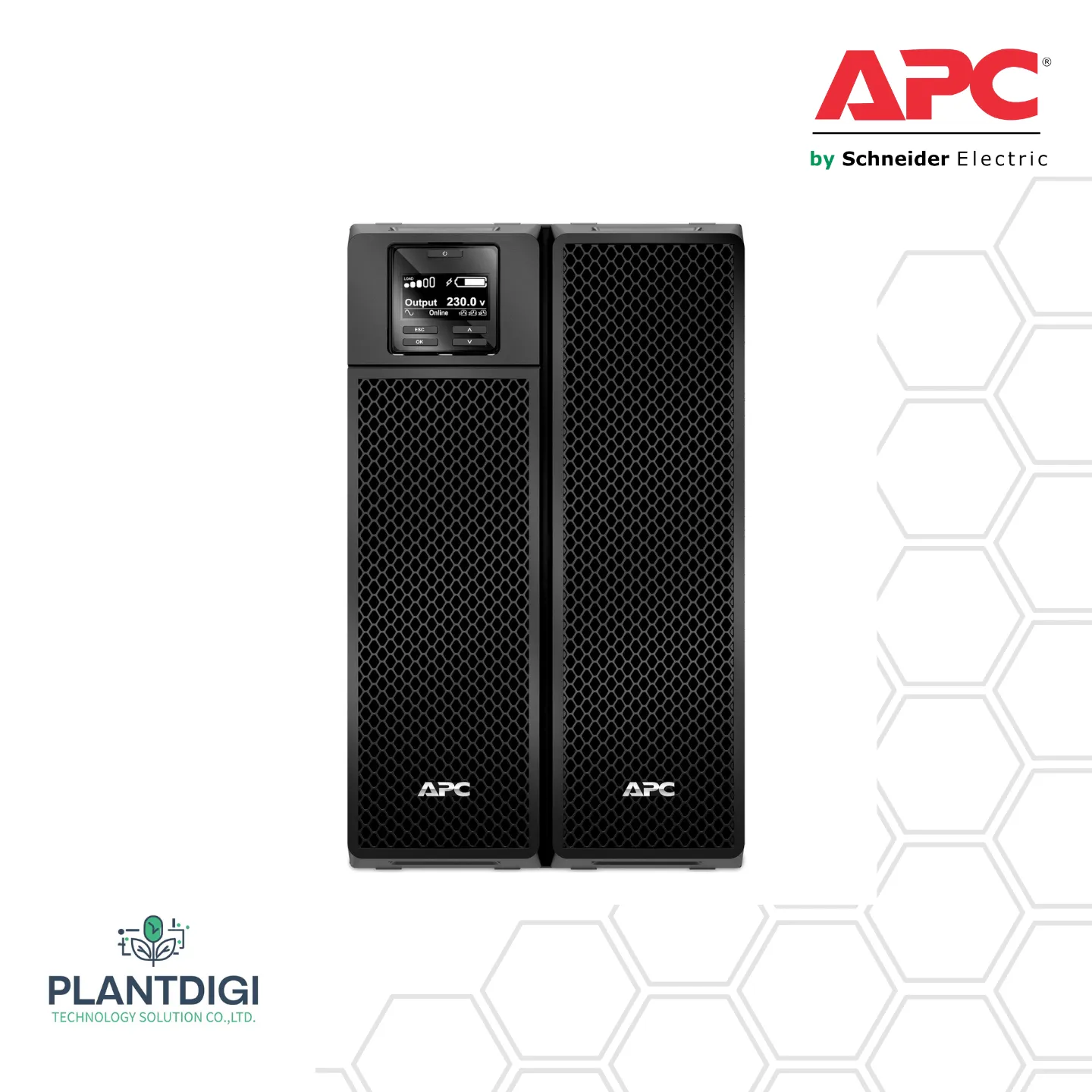

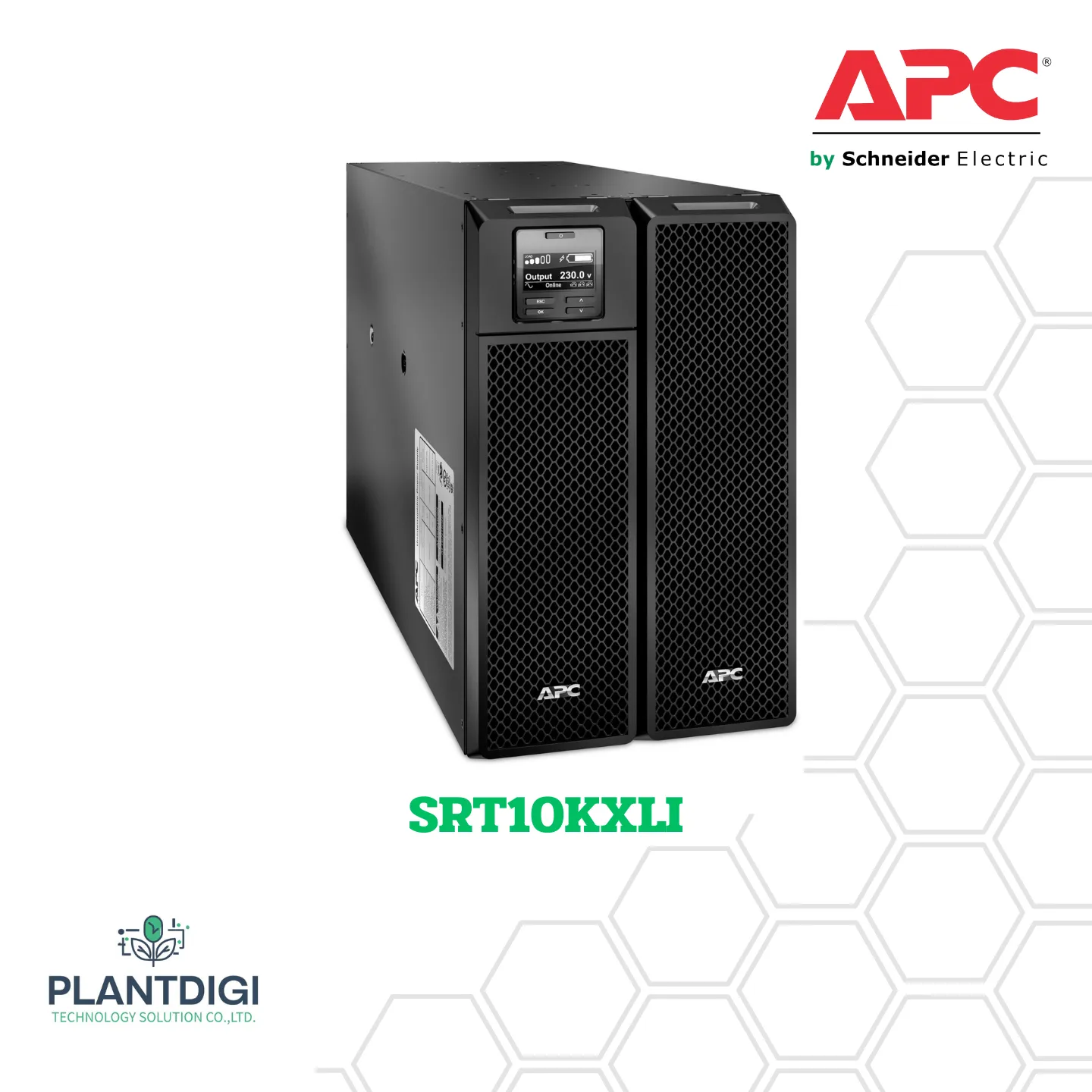

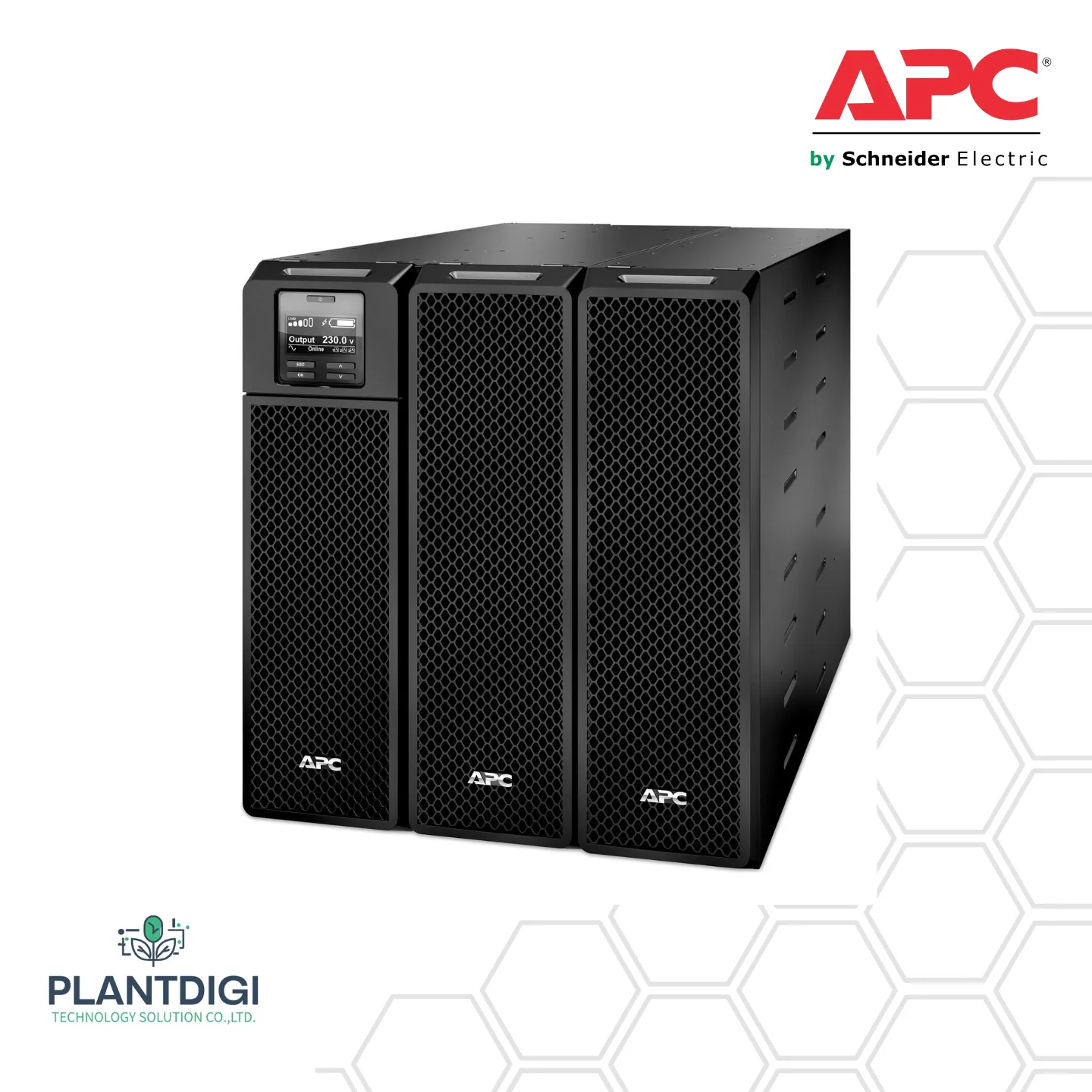

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

———
Overview
———–
Presentation: High density, double-conversion on-line power protection with scalable runtime.

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 10000 W
ต่ำสุด-สูงสุด: 1000-10000 W 3min 45s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V , 400 V 3 phases
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220 V , 240 V , 380 V , 415 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V , 240 V
Rated power in W: 10000 W
Rated power in VA: 10000 VA

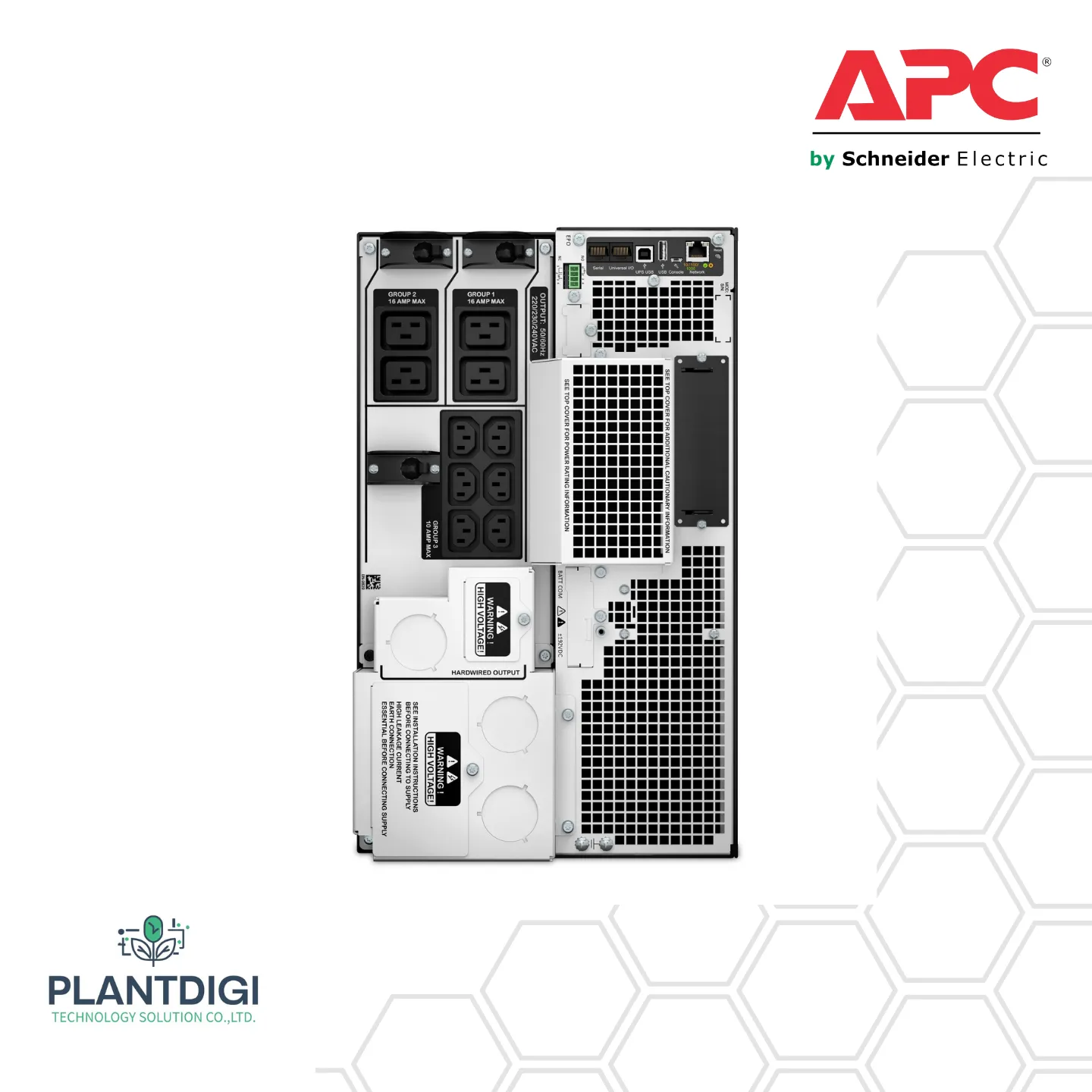

output connection type: 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19
Output connector type: Hard wire 3-wire (H N + E) 1
Provided equipment: CD with software, Documentation CD, Installation guide, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Range of product: Smart-UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Number of battery filled slots: 0
Battery recharge time: 1.5 h
Number of battery replacement quantity: 2
Battery voltage: +/- 192 V (split battery referenced to neutral)
Battery charger power: 876 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC140
Extended runtime: 1

————
General
————
UPS type: Double conversion online
product web sub-family: High density
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black
Height: 43.2 cm
Width: 26.3 cm
Depth: 71.5 cm
Net weight: 111.82 kg
Mounting preference: No preference
mounting mode: Rack-mounted with kit
Two post mountable: 0
USB compatible: Yes

—–
Input
—–
Network frequency: 40…70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E), 1 hard wire 5-wire (3P + N + E)
Input voltage limits: 100…275 V adjustable (half load), 173…476 V adjustable (half load)

——-
Output
——-
Maximum configurable power in VA: 10000 VA
Maximum configurable power in W: 10000 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)

————
Conformance
————
Product certifications: CE, EAC, IRAM, RCM, VDE
marking: CE Mark
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 55 dBA
Heat dissipation: 1947 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Free slots: 1
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 480 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 46.1 cm
Package 1 Width: 60 cm
Package 1 Length: 100 cm
Package 1 Weight: 126.554 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery

สอบถามค่าติดตั้ง Service Installation
