Eaton 9E3000I
(9103-83968)
9E3000I
Product Name: Eaton 9E UPS
Catalog Number: 9E3000I
UPC: 786689166588
Product Length/Depth: 19 cm
Product Height: 33 cm
Product Width: 39.9 cm
Product Weight: 24.2 kg
Compliances: CE Marked, TUV
Certifications: IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC
Product Specifications
Special features: Double conversion topology, constantly monitors power conditions and regulates voltage and frequency, internal bypass allows service continuity in case of UPS fault, LCD display for real-time status and measurements, compatible with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat), long backup time with up to 4 optional EBM
Type: UPS
Topology: Online/Double-conversion
Form factor: Tower
Construction type: Free standing model
Color: Black
VA rating: 3000 VA
Wattage: 2400 W
Rack mounting kit: No
Package contents: UPS, USB cable, Serial cable, Quickstart guide, Safety instructions
Internal bypass: Yes
Hot swap power: No
Auto shutdown function: Yes
Primary frequency – max: 70 Hz
Primary frequency – min: 40 Hz
Input connection: C20
Input nominal voltage: 230V default (220/230/240V)
Nominal frequency: 50/60 Hz
Input frequency range: 40-70 Hz
Input power factor: >.99
Number of outputs hardwired: 1

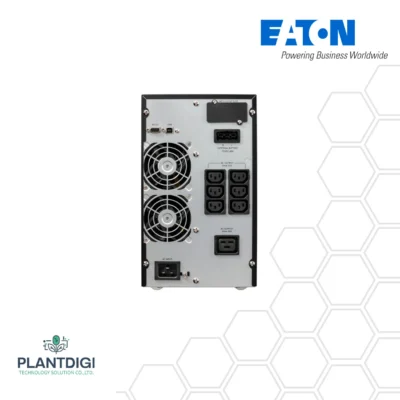

Receptacle: (6) C13, (1) C19
Number of Outputs C13: 6
Output waveform: Sine wave
Voltage: 230V
Output nominal voltage: 230V default (220/230/240V)
Feed type: 1
Voltage type: AC
Runtime graph
Battery management: Automatic battery test, Deep discharge protection
Battery replacement: Replacable batteries
Battery rating: 12 V / 9 Ah
Battery type: Sealed, lead-acid
Extended battery capability: Yes
Runtime at half load: 13.5 min
Communication
USB port: HID compliant
Serial port: RS232
Mini-terminal block: For remote power off

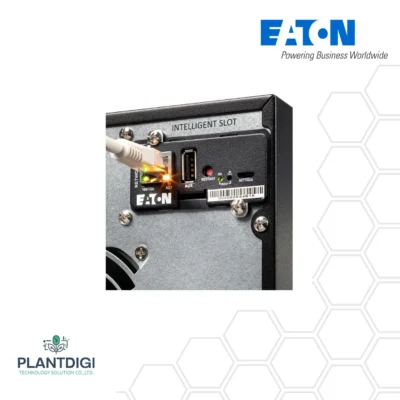

Communication slot: One slot for optional communication card
Ethernet interface: No Includes network card: No
Software compatibility
Eaton Intelligent Power Manager Eaton Intelligent Power Protector
User interface

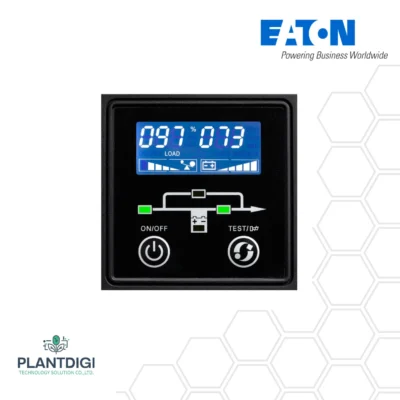

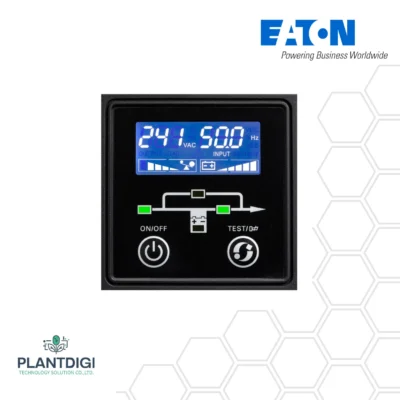

LCD Display Type of interface: Other
Potential free switch contact: No
Altitude
Maximum: 3000 m
BTU Rating
Online: 737
Noise level
At 1 meter: <37 dB
Relative humidity
Range: 0-95% non-condensing
Temperature range
Minimum: 0°
Maximum: 40°C (32° to 104°F)
Voltage specifications
Input voltage – max: 300 V
Input voltage – min: 100 V
