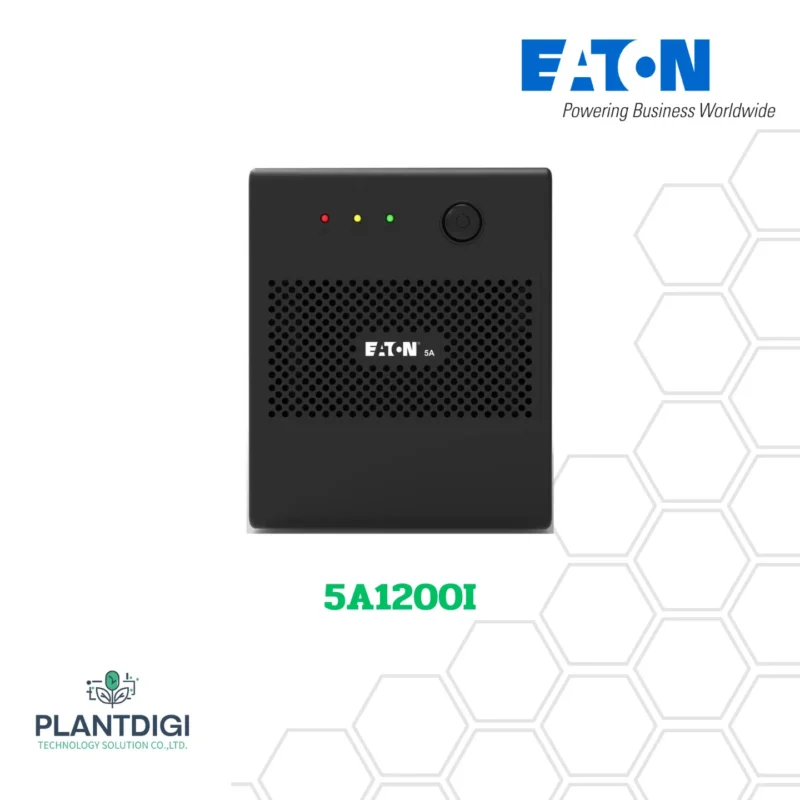

เครื่องสำรองไฟ Eaton 5A รุ่น 5A1200I Tower Line-interactive

Eaton 5A1200I

Line-interactive technology at an affordable price

• Secure your data and equipment by protecting you against power outages and bad power quality
• With Automatic Voltage Regulation (AVR), Eaton 5A UPS can ride through under & over voltage without utilizing battery
• Unmatched price/performance ratio
• Surge Protection for all outlets

Reliability

• Rely on batteries anytime: Eaton 5A UPS can start up on batteries without mains (Cold Start)
• Ensure peace of mind with 2 years warranty

Easy integration

• Ease of connection to any equipment (PC, HD TV, internet gateway) with Universal/ NEMA Universal/ Schuko outlets
• Install Eaton 5A UPS anywhere thanks to its small size

5A1200I UPS is a robust line-interactive UPS designed to provide reliable power protection for your devices. Here are its key features and specifications:

Key Features

• Power Rating: 1200VA / 650W
• Input Voltage Range: 140 – 300 VAC
• Output Voltage: 230 VAC
• Battery Waveform: Stepped sine wave
• Surge Protection: Yes
• Generator Compatibility: Yes
• Mute by Power Key: Yes
• Circuit Breaker: Yes

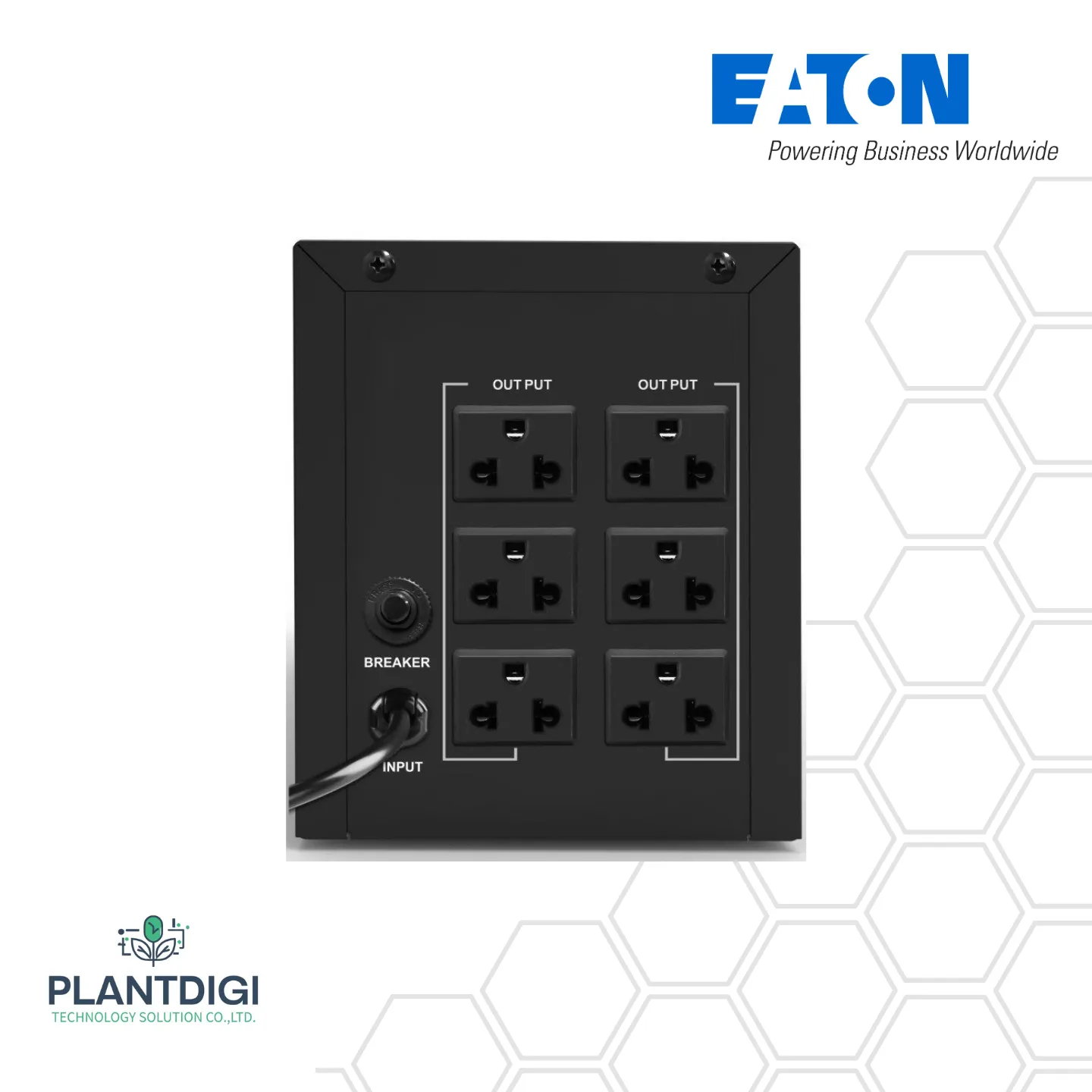

Output Backup Socket

• DIN model: (4) Schuko outlets
• NEMA model: (6) NEMA universal outlets
• UNI model: (4) Universal outlets

Specifications

• Form Factor: Tower
• Frequency: 50 / 60 Hz (Auto sensing)
• Output Voltage Regulation: ±10%
• Transfer Time: 2–6 ms typical, 10 ms max
• Battery Type: 12V/9Ah x 1
• Charging Time: 4–6 hours to recover to 90% capacity

Typical Battery Runtime

• IT Load (100W): 25 min
• 30 min at 50% load

Physical Dimensions

• Dimensions (D x W x H): 370 x 138 x 165 mm
• Weight: 6.25 kg

Operating Environment

• Operating Temperature: 0 – 40°C
• Relative Humidity: 0 – 95% (non-condensing)
