เครื่องสำรองไฟ Eaton 5A รุ่น 5A700I Tower Line-interactive

Eaton 5A700I

Line-interactive technology at an affordable price

• Secure your data and equipment by protecting you against power outages and bad power quality
• With Automatic Voltage Regulation (AVR), Eaton 5A UPS can ride through under & over voltage without utilizing battery
• Unmatched price/performance ratio
• Surge Protection for all outlets

Reliability

• Rely on batteries anytime: Eaton 5A UPS can start up on batteries without mains (Cold Start)
• Ensure peace of mind with 2 years warranty

Easy integration

• Ease of connection to any equipment (PC, HD TV, internet gateway) with Universal/ NEMA Universal/ Schuko outlets
• Install Eaton 5A UPS anywhere thanks to its small size

5A UPS (5A700I) is a reliable line-interactive UPS designed to protect your devices from power outages and electrical disturbances. Here are some key features and specifications:

Key Features:

• Power Rating: 700VA / 360W
• Input Voltage Range: 140 – 300 VAC
• Output Voltage: 230 VAC
• Battery Waveform: Stepped sine wave
• Surge Protection: Yes
• Generator Compatibility: Yes
• Mute by Power Key: Yes
• Circuit Breaker: Yes

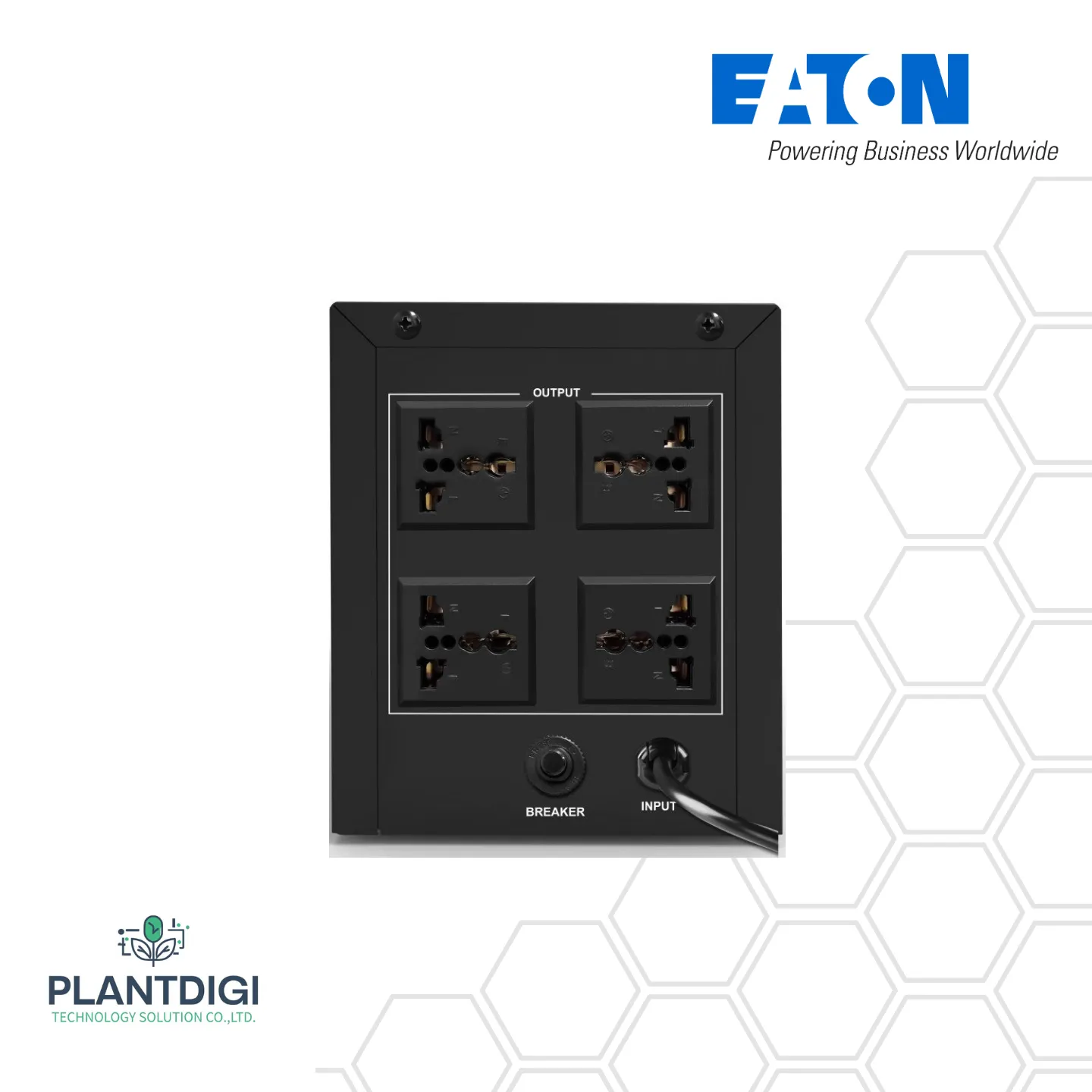

• Output Backup Socket:
  • DIN model: (2) Schuko outlets
  • NEMA model: (4) NEMA universal outlets
  • UNI model: (2) Universal outlets

Specifications:

• Form Factor: Tower
• Frequency: 50 / 60 Hz (Auto sensing)
• Output Voltage Regulation: ±10%
• Transfer Time: 2–6 ms typical, 10 ms max
• Battery Type: 12V/7Ah x 1
• Charging Time: 4–6 hours to recover to 90% capacity
• Typical Battery Runtime:
  • IT Load (100W): 18 min
  • 30 min at 50% load
• Physical Dimensions (D x W x H): 297 x 101 x 142 mm
• Weight: 4 kg
• Operating Temperature: 0 – 40°C
• Relative Humidity: 0 – 95% (non-condensing)

This UPS is suitable for home and small office environments, providing protection for computers, workstations, internet access points, point-of-sale equipment, and business telephony.

สอบถามค่าติดตั้ง Service Installation
