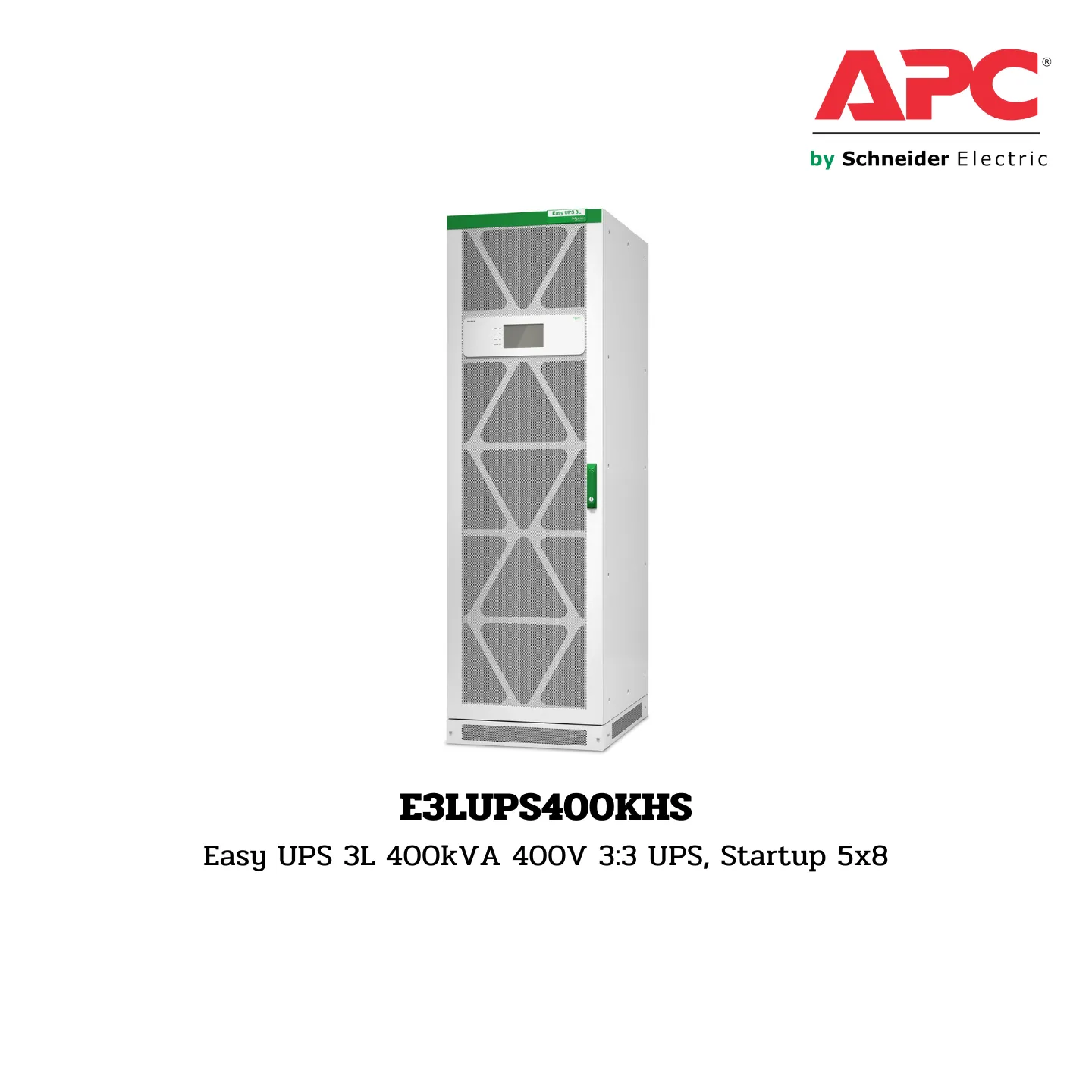

เครื่องสำรองไฟ APC Easy UPS 3L รุ่น E3LUPS400KHS

APC E3LUPS400KHS
Easy UPS 3L 400kVA 400V 3:3 UPS, Startup 5×8

Presentation

E3LUPS400KHS : Easy-to-configure, easy-to-use, and easy-to-service 400 kVA 3-phase UPS with an exceptional combination of competitive specifications, compact footprint, and highly available parallel and redundant designs. The EcoStruxure connected Schneider Electric Easy UPS 3L is the easy choice for business continuity on your shop floor or in your electrical room. Includes 5×8 start-up service.

Lead Time

• Special Order – Call for Quoted Lead Times

Main Specifications

• Main Input Voltage: 400 V 3 phases
• Product or Component Type: Uninterruptible power supply (UPS)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V 3 phases
• Other Output Voltage: 380 V, 415 V
• Rated Power in W: 400 kW
• Rated Power in VA: 400 kVA
• Provided Equipment: Dust filter, Installation manual, Start-up service
• Range of Product: Easy UPS 3L

Batteries & Runtime

• Battery Type: External battery system
• Battery Voltage: +/- 216…+/- 300 V
• Maximum Short-Circuit Current: 35 kA
• Discharge Battery Voltage: +/- 172.8…+/- 240 V

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 197 cm (H) x 60 cm (W) x 85 cm (D)
• Net Weight: 538 kg
• USB Compatible: Yes

Input

• Maximum Input Current: 719 A
• Max Short Time Withstand Current: 35 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: 0.5 leading to 0.5 lagging without derating
• Input Voltage Limits: 323…477 V
• Network Frequency: 40…70 Hz

Output

• Maximum Configurable Power in VA: 400 kVA
• Maximum Configurable Power in W: 400 kW
• Output Frequency: 50 Hz sync to mains, 60 Hz sync to mains
• Output Harmonic Distortion: < 2% linear load and < 4% non-linear load
• Output Overload Operation: 10 minutes at 125% and 60 seconds at 150%
• UPS Type: Double conversion online

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…30 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…4921 ft
• Storage Temperature: -25…55 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0.0000000000…14999.8 m
• Acoustic Level: 70 dB
• Heat Dissipation: 79181 Btu/h
• IP Degree of Protection: IP20

Communications & Management

• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 2117 mm
• Package Width: 1000 mm
• Package Length: 800 mm
• Package Weight: 584 kg
• Number of Units in Package: 1

สอบถามค่าติดตั้ง Service Installation
