เครื่องสำรองไฟ APC Easy UPS 3S รุ่น E3SUPS30K3IB

APC E3SUPS30K3IB

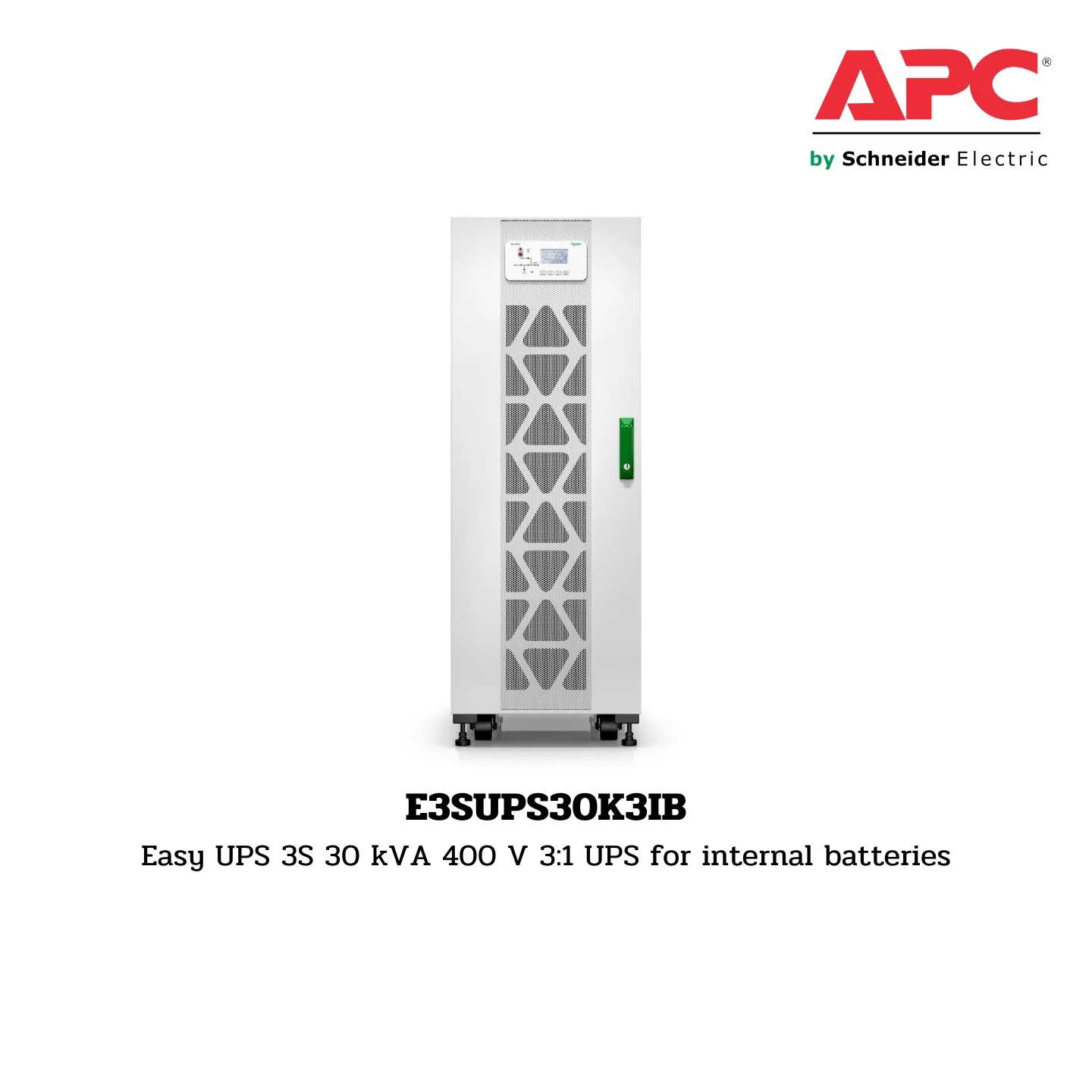

Easy UPS 3S 30 kVA 400 V 3:1 UPS for internal batteries

Presentation

E3SUPS30K3IB: A high-efficiency 3-phase UPS designed to ensure business continuity in small and medium data centers or electrical rooms. This 30 kVA UPS, featuring a 400V 3-phase input and output, is easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments. This UPS is intended for internal batteries but is supplied without batteries, allowing you to customize the battery runtime. For detailed battery runtime information, please refer to the runtime charts under the Documents tab.

Lead Time

• Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated Power: 30 kW / 30 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: VRLA
• Battery Voltage: 240 V
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 0 filled, 4 free
• Max Current Discharge: 81 A
• Discharge Battery Voltage: +/- 198 V DC

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 140 cm (H) x 50 cm (W) x 99.6 cm (D)
• Net Weight: 185 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 55 A
• Input Harmonic Distortion: Less than 5% for full load
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 304…477 V
• Input Protection Type: Switch and fuse
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 30 kVA / 30 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 5.5% at 100% non-linear load
• Output Overload Operation: 10 minutes at 125%, 60 seconds at 150%
• Output Voltage Tolerance: +/- 1.5%
• UPS Type: Double conversion online
• Crest Factor: 3:1

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3281 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 63 dBA
• Heat Dissipation: 1810 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 164 cm
• Package Width: 111.4 cm
• Package Length: 68.3 cm
• Package Weight: 185 kg
• Number of Units in Package: 1
