เครื่องสำรองไฟ APC Galaxy VS รุ่น GVSUPS20KGS

APC GVSUPS20KGS

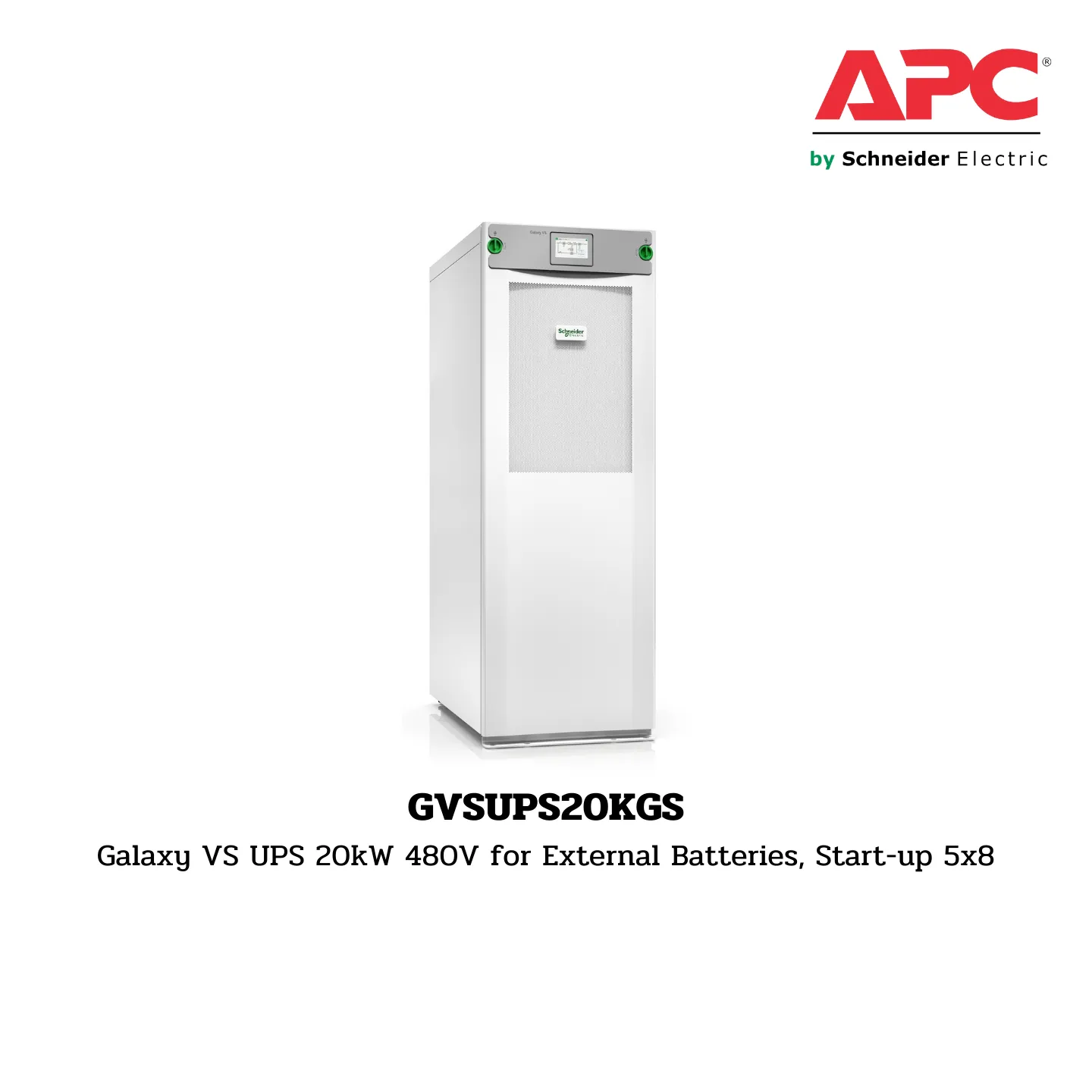

GVSUPS20KGS Galaxy VS UPS 20kW 480V for External Batteries, Start-up 5×8

Presentation

GVSUPS20KGS APC Highly efficient and easy-to-deploy 20 kW, 480V 3-phase uninterruptible power supply (UPS) that brings best-in-class power protection to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Compact design, high-density technology and modular architecture keep total cost of ownership low and operational efficiency at the highest levels.

Galaxy VS reduces your energy losses by up to 66% with the patented ECOnversion mode – reaching up to 99% efficiency levels and delivering more energy savings than even our industry-leading 97% efficiency in normal operating mode. The UPS is EcoStruxure-ready to give you peace of mind with cloud-based remote monitoring and management via your smartphone. Includes 5×8 start-up service. For battery runtime details, see the runtime charts published under the Documents tab.

Lead Time

• Usually ships within 2 weeks

Main Specifications

• Main Input Voltage: 480 V (3 phases)
• Main Output Voltage: 480 V (3 phases)
• Rated Power: 20 kW / 20 kVA
• Output Connector Type: Hard wire 4-wire (3P + E), Hard wire 5-wire (3P + N + E)
• Battery Type: External battery system, Li-Ion (Lithium-Ion), VRLA
• Provided Equipment: Dust filter, Installation guide, Integrated network management, Power modules ship installed, Start-up service, Top and bottom cable entry
• Product Type: Uninterruptible Power Supply (UPS)
• Range of Product: Galaxy VS

Batteries & Runtime

• Battery Voltage: 384…576 V DC
• Discharge Battery Voltage: 307 V DC
• Maximum Short-Circuit Current: 65 kA
• Maximum Current Discharge: 68 A
• Extended Runtime: 0
• Battery Power in VAh: 0 VAh runtime

General

• Bypass Voltage Tolerance: +/- 10%
• Max Bypass Input Current: 30 A
• Redundant: No

Physical Specifications

• Colour: White
• Dimensions: 148.5 cm (H) x 52.1 cm (W) x 84.7 cm (D)
• Net Weight: 206 kg
• USB Compatible: No

Input Specifications

• Network Frequency: 40…70 Hz
• Number of Input Connectors: 1 hard wire 4-wire (3P + E), 1 hard wire 5-wire (3P + N + E)
• Input Voltage Limits: 408…552 V 480 V
• Maximum Input Current: 31 A
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: From 0.7 leading to 0.7 lagging without any derating
• Input Power Factor: 0.99 at full load

Output Specifications

• Maximum Configurable Power: 20 kW
• Output Frequency: 50 Hz sync to mains, 60 Hz sync to mains, 50 Hz +/- 0.1% for 50 Hz nominal unsynchronized, 60 Hz +/- 0.1% for 60 Hz nominal unsynchronized
• Crest Factor: 2.5
• Wave Type: Sine wave
• Output Voltage Tolerance: +/-1% after 50ms
• Output Harmonic Distortion: < 1% linear load and < 3% non-linear load
• Output Overload Operation: 10 minutes at 125% and 60 seconds at 150%
• Bypass Type: Built-in static bypass

Conformance

• Product Certifications: ENERGY STAR V2.0 (USA)
• Standards: CSA C22.2 No 107.3, FCC part 15 class A, IEC 62040-3, IEC 60721-4-2 level 2M2, UL 1778 5th edition

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95%
• Operating Altitude: 0…3281 ft
• Storage Temperature: -25…55 °C
• Storage Relative Humidity: 10…80% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 61 dBA
• Heat Dissipation: 2187.8 Btu/h
• IP Protection: IP21

Communications & Management

• Free Slots: 1
• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 168 cm
• Package Width: 99 cm
• Package Length: 64 cm
• Package Weight: 235 kg
• Number of Units in Package: 1
