เครื่องสำรองไฟ APC Galaxy VS รุ่น GVSUPS30KB4HS

APC GVSUPS30KB4HS

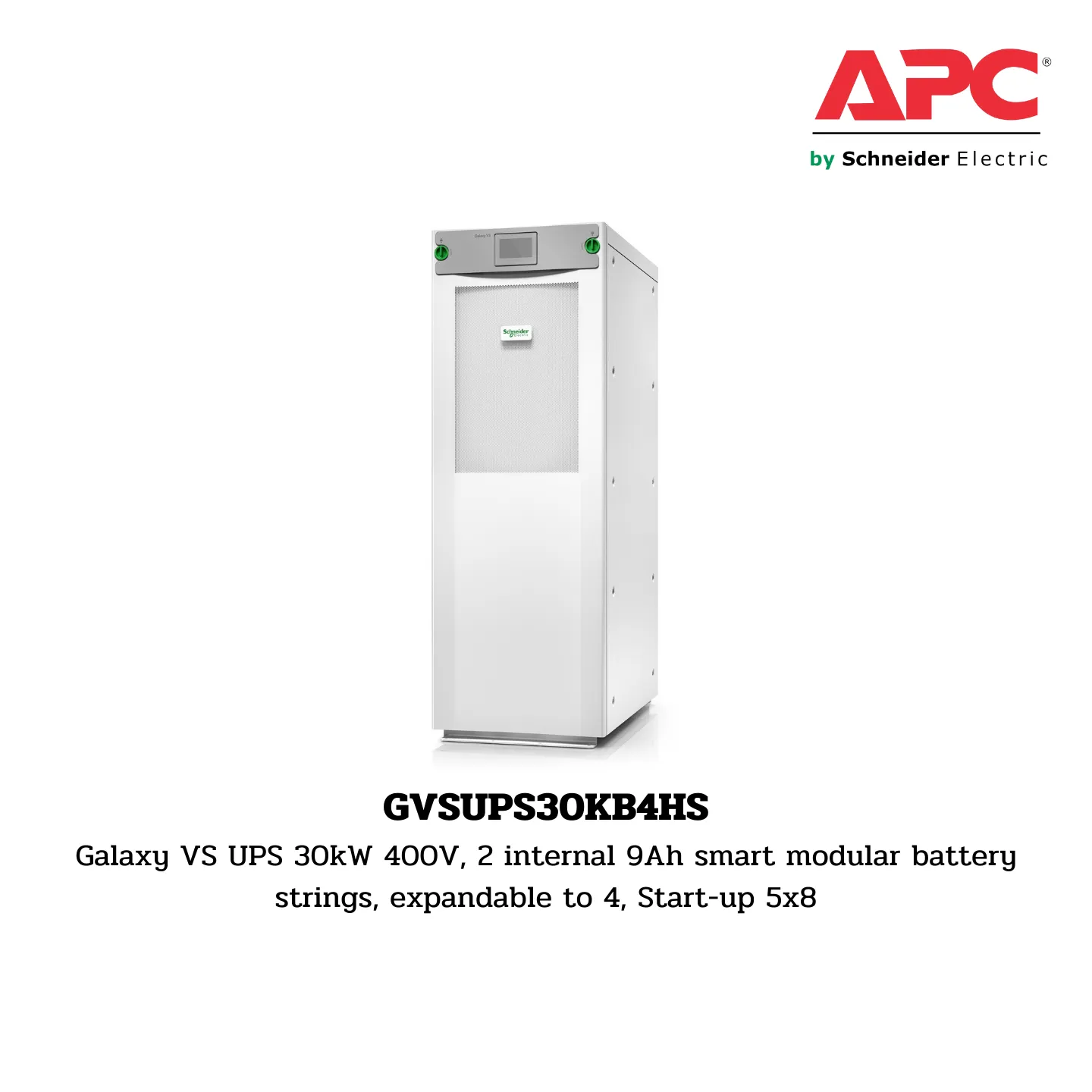

GVSUPS30KB4HS Galaxy VS UPS 30kW 400V, 2 internal 9Ah smart modular battery strings, expandable to 4, Start-up 5×8

Presentation

GVSUPS30KB4HS APC Highly efficient and easy-to-deploy 30 kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service and two smart high-capacity modular battery strings, expandable to four strings for extended runtime. Runtime charts are available in the Documents tab.

Lead Time

• Usually ships within 2 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Rated Power: 30 kW / 30 kVA
• Output Connector Type: Hard wire 5-wire (3P + N + E)
• Battery Type: Internal modular battery, VRLA
• Provided Equipment: Battery modules ship installed, Dust filter, EcoStruxure IT ready (UPS), Installation guide, Integrated network management, Power modules ship installed, Start-up service
• Product Type: Uninterruptible Power Supply (UPS)
• Range of Product: Galaxy VS

Batteries & Runtime

• Battery Voltage: 480 V
• Discharge Battery Voltage: 384 V DC
• Maximum Current Discharge: 81 A
• Extended Runtime: 0
• Battery Power in VAh: 0 VAh runtime

General

• Bypass Voltage Tolerance: +/- 10%
• Redundant: No

Physical Specifications

• Colour: White
• Dimensions: 148.5 cm (H) x 52.1 cm (W) x 84.7 cm (D)
• Net Weight: 460 kg
• USB Compatible: No

Input Specifications

• Network Frequency: 40…70 Hz
• Number of Input Connectors: 1 hard wire 3-wire (3P + E), 1 hard wire 5-wire (3P + N + E)
• Input Voltage Limits: 340…460 V 400 V
• Maximum Input Current: 54 A
• Max Short Time Withstand Current: 65 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: From 0.7 leading to 0.7 lagging without any derating
• Input Power Factor: 0.99 at full load

Output Specifications

• Maximum Configurable Power: 30 kW
• Harmonic Distortion: Less than 5%
• Output Frequency: 50 Hz sync to mains, 60 Hz sync to mains, 50 Hz +/- 0.1% for 50 Hz nominal unsynchronized, 60 Hz +/- 0.1% for 60 Hz nominal unsynchronized
• Crest Factor: 2.5
• Wave Type: Sine wave
• Output Voltage Tolerance: +/-1% after 50ms
• Output Overload Operation: 10 minutes at 125% and 60 seconds at 150%
• Bypass Type: Built-in static bypass

Conformance

• Product Certifications: UL 1778 5th edition
• Standards: CSA C22.2 No 107.3, EN/IEC 62040-1, EN/IEC 62040-2, EN/IEC 62040-3, IEC 60721-4-2 level 2M2

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3281 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…3048 m
• Acoustic Level: 61 dBA
• Heat Dissipation: 3395 Btu/h
• IP Protection: IP20

Communications & Management

• Free Slots: 1
• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 168 cm
• Package Width: 99 cm
• Package Length: 64 cm
• Package Weight: 490 kg
• Number of Units in Package: 1
