เครื่องสำรองไฟ APC Galaxy VS รุ่น GVSUPS80KB5HS

APC GVSUPS80KB5HS

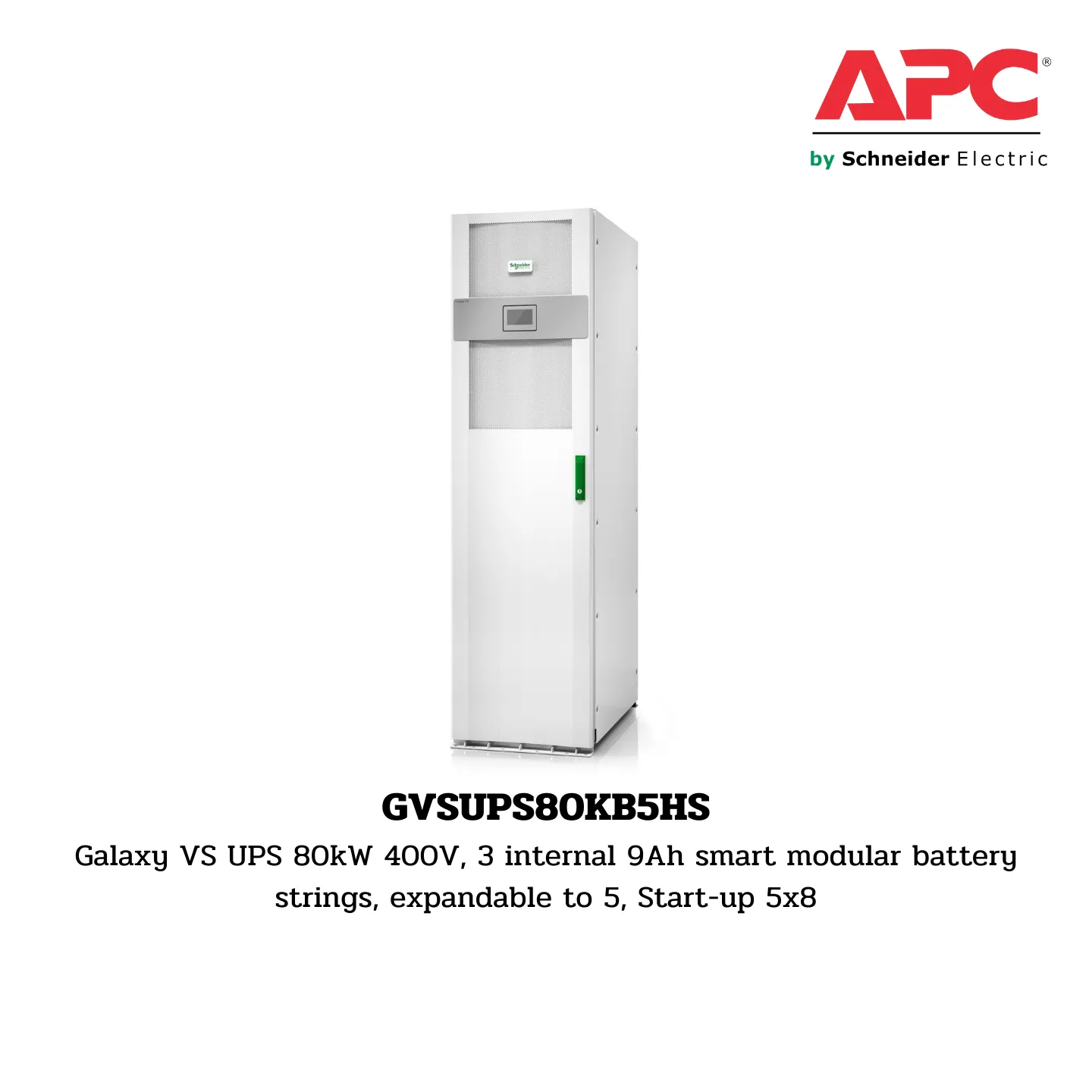

GVSUPS80KB5HS Galaxy VS UPS 80kW 400V, 3 internal 9Ah smart modular battery strings, expandable to 5, Start-up 5×8

Presentation

APC Highly efficient and easy-to-deploy 80 kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5×8 start-up service and three smart modular high-capacity battery strings, expandable to five strings for extended runtime. See the battery runtime chart for details.

Lead Time

• Usually ships within 2 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 80 kW / 80 kVA
• Battery Type: Internal modular battery, VRLA
• Provided Equipment: Dust filter, Installation manual, Integrated network management, Battery modules ship installed, Start-up service, EcoStruxure Ready
• Product Type: Uninterruptible Power Supply (UPS)
• Range of Product: Galaxy VS

Batteries & Runtime

• Battery Voltage: 480 V
• Discharge Battery Voltage: 384 V
• Maximum Current Discharge: 217 A
• Extended Runtime: 0
• Battery Power in VAh: 0 VAh runtime

General

• Redundant: No

Physical Specifications

• Colour: White
• Dimensions: 197 cm (H) x 55 cm (W) x 84.7 cm (D)
• Net Weight: 680 kg
• USB Compatible: No

Input Specifications

• Network Frequency: 40…70 Hz
• Input Voltage Limits: 340…460 V 400 V
• Maximum Input Current: 144 A
• Max Short Time Withstand Current: 65 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: From 0.7 leading to 0.7 lagging without any derating
• Input Power Factor: 0.99 at full load

Output Specifications

• Maximum Configurable Power: 80 kW
• Harmonic Distortion: Less than 3%
• Output Frequency: 50 Hz sync to mains, 60 Hz sync to mains
• Crest Factor: 2.5
• Wave Type: Sine wave
• Output Voltage Tolerance: +/- 5% after 2ms, +/-1% after 50ms
• Output Harmonic Distortion: < 1% linear load and < 3% non-linear load
• Output Overload Operation: 10 minutes at 125% and 60 seconds at 150%
• Bypass Type: Built-in static bypass

Conformance

• Standards: IEC 62040-1-1, IEC 62040-2, OSHPD

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3300 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 10…80% non-condensing
• Storage Altitude: 0…3048 m
• Acoustic Level: 65 dBA
• Heat Dissipation: 9263 Btu/h
• IP Protection: IP20

Communications & Management

• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 208.2 cm
• Package Width: 101 cm
• Package Length: 75.5 cm
• Package Weight: 270 kg
• Number of Units in Package: 1
