เครื่องสำรองไฟ Delta RT-3K-3Y Vendor Code: UPS302R2RT2B0B6S

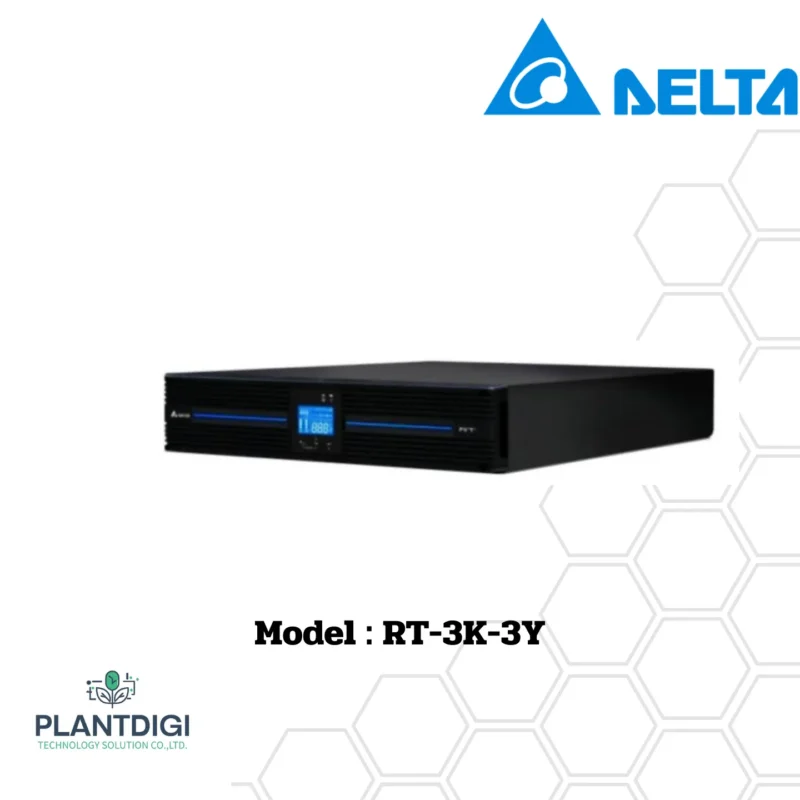

Delta RT-3K-3Y

Vendor Code: UPS302R2RT2B0B6S

The Delta Facelift RT Series 3kVA UPS (RT-3K-3Y) is a high-performance and reliable uninterruptible power supply, ideal for a range of applications. Designed with an on-line topology, this UPS ensures continuous and clean power, protecting sensitive equipment from power disturbances. The model comes with a 3-year warranty, providing long-term reliability and support.

Key Features:

• Power Rating: 3kVA / 2.7kW (with additional models 1kVA / 0.9kW and 2kVA / 1.8kW)
• Input Voltage Range:
  • 75 ~ 280 Vac (full load)
  • 120 ~ 175 Vac (70 ~ 100% load)
• Output: Pure sine wave with ± 1% voltage regulation (linear load)
• Battery:
  • Battery Voltage: 72 Vdc (RT-3K)
  • Recharge Time: 3 hours to 90% capacity
• Efficiency: Up to 94% (RT-2K/RT-3K) and 90% (RT-1K) in AC-AC mode
• Environment: Operates in temperatures from 0 to 50°C with noise levels below 46 dBA (RT-3K)
• Interface: Includes SMART Slot, RS-232 Port, USB Port, and REPO

This UPS is perfect for ensuring continuous power for critical devices, protecting them from power interruptions and electrical noise. The Delta Facelift RT Series UPS is a dependable solution for both home and office environments, thanks to its robust design and advanced features.

Specifications:

• Model: RT-3K-3Y
• Vendor Code: UPS302R2RT2B0B6S
• Description: Delta Facelift RT Series 3kVA/2.7kW (2U) On-Line UPS with 3Y Warranty (UPS302R2RT2B0B6S)

Power Rating:

• RT-1K: 1kVA / 0.9kW
• RT-2K: 2kVA / 1.8kW
• RT-3K: 3kVA / 2.7kW

Input:

• Nominal Voltage: 200/208/220/230/240 Vac
• Voltage Range:
  • 75 ~ 280 Vac (full load)
  • 120 ~ 175 Vac (70 ~ 100% load)
• Frequency: 40 ~ 70 Hz
• Power Factor: > 0.99 (full load)
• Current Harmonic Distortion: < 5%

Output:

• Power Factor: 0.9
• Voltage: 200/208/220/230/240 Vac
• Voltage Regulation: ± 1% (linear load)
• Frequency: 50/60 Hz ± 0.05 Hz
• Voltage Harmonic Distortion: < 2% (linear load)
• Overload Capability:
  • < 105%: Continuous
  • 105% ~ 125%: 1 minute
  • 125% ~ 150%: 15 seconds
• Receptacle:
  • RT-1K: IEC C13 x 6
  • RT-2K/RT-3K: IEC C13 x 6, IEC C19 x 1

Efficiency:

• AC-AC:
  • RT-1K: 90%
  • RT-2K/RT-3K: Up to 94%
• ECO Mode:
  • RT-1K: 96%
  • RT-2K/RT-3K: Up to 97%

Battery:

• Battery Voltage:
  • RT-1K: 24 Vdc
  • RT-2K: 48 Vdc
  • RT-3K: 72 Vdc
• Typical Backup Time:
  • RT-1K: 6.5 minutes
  • RT-2K/RT-3K: 7 minutes
• Charge Current:
  • RT-1K: 1.5A
  • RT-2K/RT-3K: 2A
• Recharge Time: 3 hours to 90%

Audible Noise:

• RT-1K: < 40 dBA
• RT-2K: < 43 dBA
• RT-3K: < 46 dBA

Display:

• LCD display and LED indicators

Communication Interfaces:

• SMART Slot x 1, RS-232 Port x 1, USB Port x 1, REPO x 1

Conformance:

• EN 62040-1, CE, TISI, RCM, EAC

Dimensions (W x D x H):

• UPS:
  • RT-1K: 440 x 335 x 89 mm
  • RT-2K: 440 x 432 x 89 mm
  • RT-3K: 440 x 610 x 89 mm
• External Battery Pack:
  • RT-1K: 440 x 335 x 89 mm
  • RT-2K: 440 x 432 x 89 mm
  • RT-3K: 440 x 610 x 89 mm

Weight:

• UPS:
  • RT-1K: 12 kg
  • RT-2K: 18 kg
  • RT-3K: 28 kg
• External Battery Pack:
  • RT-1K: 15 kg
  • RT-2K: 27 kg
  • RT-3K: 44 kg

Environment:

• Operating Temperature: 0 ~ 50°C
• Relative Humidity: 5% ~ 95% (non-condensing)
