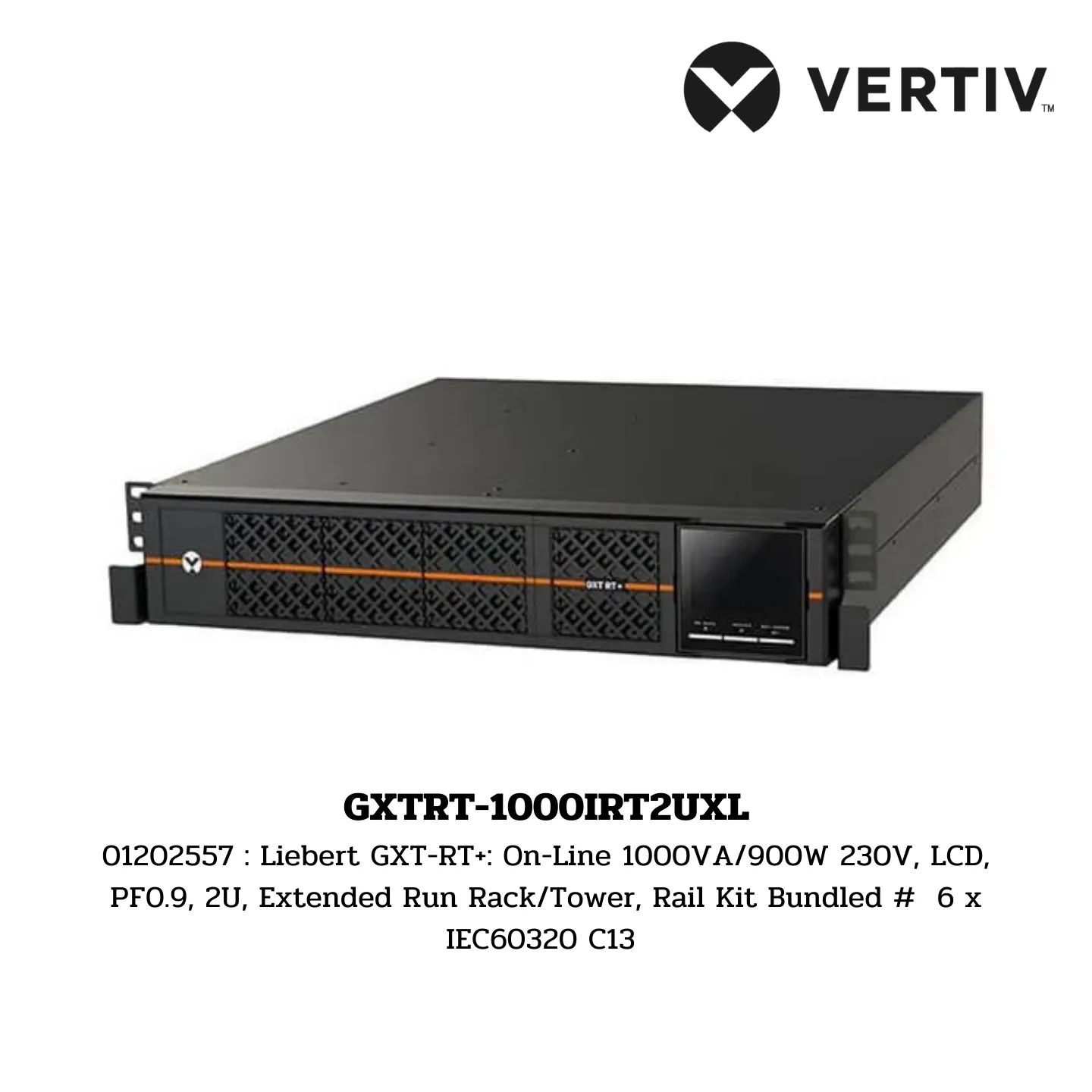

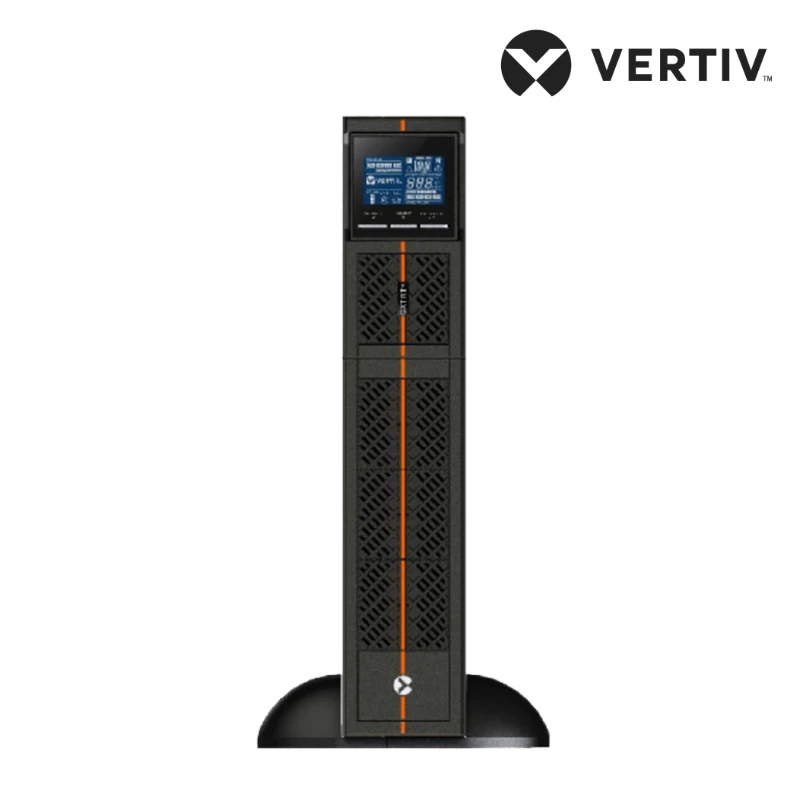

เครื่องสำรองไฟ Vertiv GXT Series GXTRT-1000IRT2UXL

Vertiv GXTRT-1000IRT2UXL
01202557 : Liebert GXT-RT+: On-Line 1000VA/900W 230V, LCD, PF0.9, 2U, Extended Run Rack/Tower, Rail Kit Bundled # 6 x IEC60320 C13

Specifications:

Capacity:

• VA: 1000 VA
• W: 900 W

Dimensions (mm):

• Unit (W x D x H): 438 x 310 x 86
• Shipping (W x D x H): 600 x 500 x 240

Weight (kg):

• Unit: 11
• Shipping: 16.3

Input AC Parameters:

• Input Voltage Range (VAC): 120-300
• Frequency Range (Hz): 40-70
• Input Power Connector: IEC60320 C14

Output AC Parameters:

• Output Receptacles: 6 x IEC60320 C13
• Output Voltage (VAC): 220/230/240
• Waveform: Pure Sine Wave
• Output (AC Mode) Overload: <130% for 30 seconds, <150% for 3 seconds

Battery:

• Type: Valve-regulated, non-spillable, lead acid
• Recharge Time (internal batteries, typical): 4 hr @90%

Environmental:

• Operating Temperature: 0 to 40°C (32 to 104°F)
• Storage Temperature: -20 to 50°C (-4 to 122°F)
• Relative Humidity: 10-80%, non-condensing
• Operating Altitude (without derating): <2,000 m
• Audible Noise (line mode): 55 dBA max @ 1m

Agency Compliance:

• Compliance: CE, CB report, UKCA, RCM, EAC, Morocco
• Safety: IEC/EN 62040-1
• Electromagnetic Interference (EMI): IEC/EN 62040-2 Cat. C1
• Surge Immunity: EN 61000-4-5
• Transportation: ISTA 2A
• Environmental: RoHS2 / REACH / WEEE
