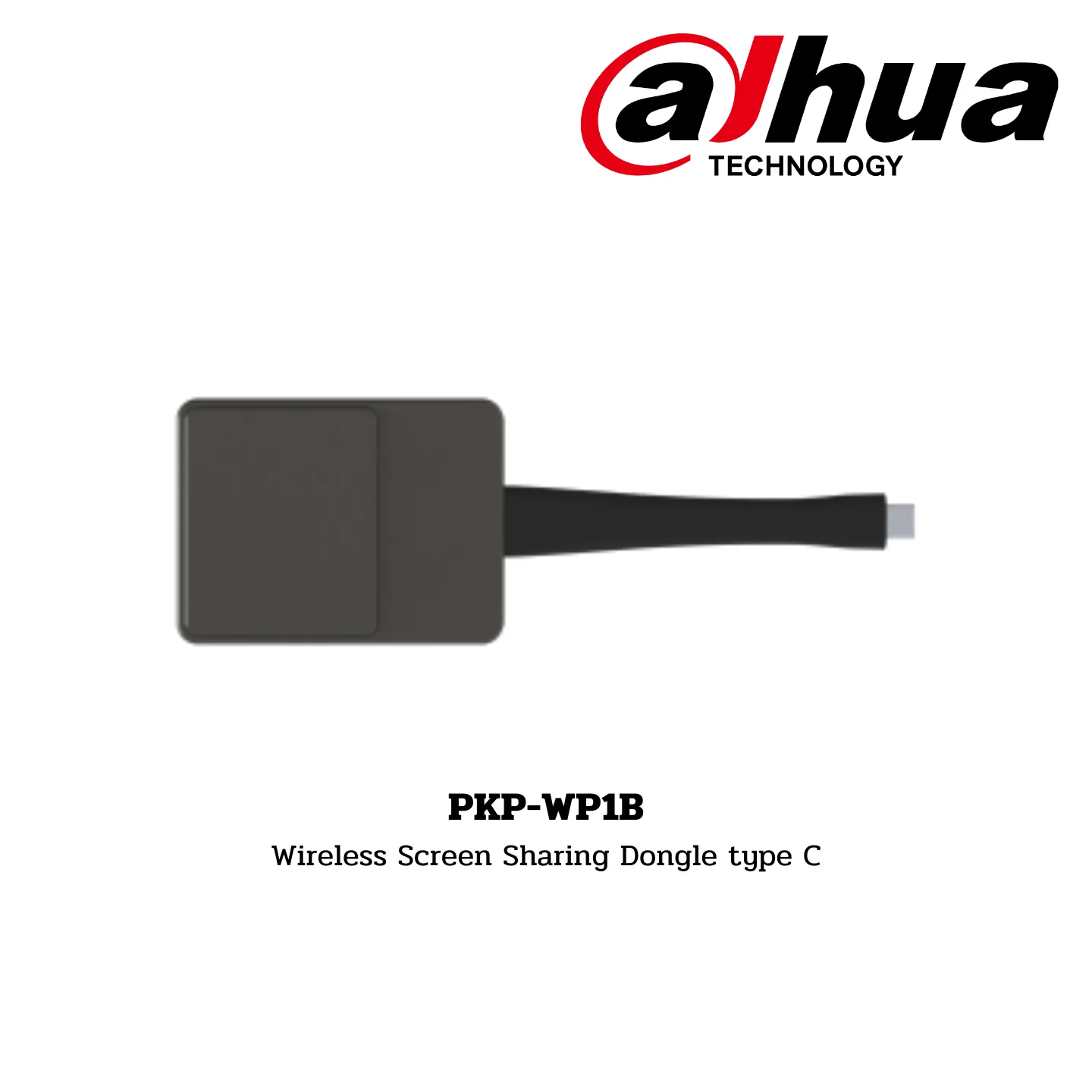

Dahua PKP-WP1B อุปกรณ์แชร์หน้าจอไร้สาย Dongle Type C
ข้อมูลจำเพาะ
พารามิเตอร์ฮาร์ดแวร์
- Input Resolution: 480p, 576p, 720p, 1080p, 4K
- PC timing: 640 × 480, 800 × 600, 1024 × 768, 1280 × 720, 1920 × 1080, 3840 × 2160
- Output Resolution: 720 × 480, 720 × 576, 1280 × 720, 1920 × 1080 (1080p), 3840 × 2160
- Interface: Full featured Type-C (อินเทอร์เฟซ: Type-C ครบวงจร)
- Input voltage: 5 VDC (Type-C power supply) (แรงดันไฟฟ้าอินพุต: 5 VDC (จ่ายไฟผ่าน Type-C))
- Power consumption: 2.5 W (Average) (การใช้พลังงาน: 2.5 วัตต์ (เฉลี่ย))
- Current Consumption: 0.9 A (Max.) (การใช้กระแสไฟฟ้า: 0.9 แอมป์ (สูงสุด))
การตั้งค่าระบบ
- Operating system: Windows® 7, Windows 8.1, Windows 10 or Windows 11, macOS™, Chrome OS, Linux OS, Android OS. Any OS supports full featured Type-C (ระบบปฏิบัติการ: Windows® 7, Windows 8.1, Windows 10 หรือ Windows 11, macOS™, Chrome OS, Linux OS, Android OS. ระบบปฏิบัติการใดๆ ที่รองรับ Type-C ครบวงจร)
- Encryption: CCMP (การเข้ารหัส)
- Authentication protocol: WPA2 (WPA2-PSK (Pre-Shared key) / WPA2-Enterprise) (โปรโตคอลการตรวจสอบสิทธิ์: WPA2 (WPA2-PSK (รหัสที่ใช้ร่วมกัน) / WPA2-Enterprise))
- Wireless transmission protocol: IEEE 802.11 a/g/n (โปรโตคอลการส่งสัญญาณไร้สาย)
- Wireless data rate: 54 Mbps (อัตราข้อมูลไร้สาย)
- Frame Rate: Up to 60 fps depending on environment (FHD) (อัตราเฟรม: สูงสุด 60 fps ขึ้นอยู่กับสภาพแวดล้อม (FHD))
- Touch control back: Support 10 points (รองรับการควบคุมแบบสัมผัส 10 จุด)
โครงสร้าง
- Net weight: 80 g (0.18 lb) (น้ำหนักสุทธิ)
- Dimensions: 176 mm × 58 mm × 17 mm (6.93″ × 2.28″ × 0.67″) (ขนาด)
- LED: Blue, Green, Red (ไฟ LED: สีน้ำเงิน, สีเขียว, สีแดง)
ข้อกำหนดด้านสภาพแวดล้อม
- Operating temperature: 0 °C to +40 °C (+32 °F to +104 °F) (อุณหภูมิในการทำงาน)
- Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F) (อุณหภูมิในการจัดเก็บ)
- Operating humidity: 0%–80% (RH) (non-condensing) (ความชื้นในการทำงาน: 0%–80% (RH) (ไม่มีการควบแน่น))
- Transmission distance: The distance between wireless projectors and the host is up to 15 m (49.21 ft) (ระยะการส่งสัญญาณ: ระยะห่างระหว่างโปรเจคเตอร์ไร้สายและโฮสต์สูงสุด 15 เมตร (49.21 ฟุต))
- Frequency band: 2.4 GHz and 5 GHz (recommended) (ช่วงความถี่: 2.4 GHz และ 5 GHz (แนะนำ))
