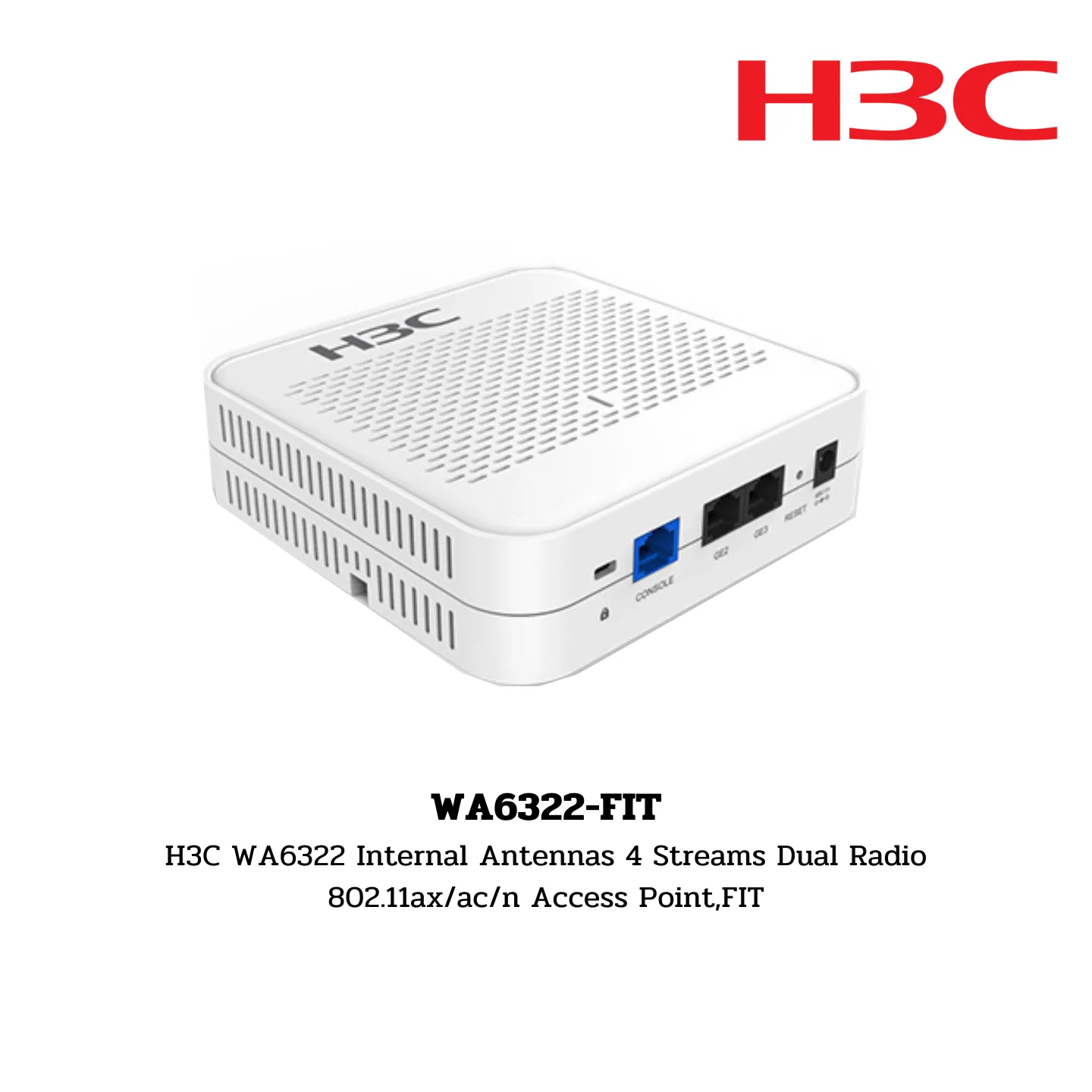

H3C Access Point Indoor รุ่น WA6322-FIT

WA6322-FIT
H3C WA6322 Internal Antennas 4 Streams Dual Radio 802.11ax/ac/n Access Point,FIT

Hardware Specifications

Dimensions (W × D × H):

• 150 mm × 150 mm × 31.5 mm

Interface:

• 3 × 100/1000M electrical ports (one of which supports PoE out expansion)

PoE:

• Supports 802.3at/af compatible power supply

Console Port:

• 1

USB Port:

• 1

Local Power Supply:

• Supports 54V DC local power supply

Internal Antenna:

• Built-in smart antenna system

Built-in IoT:

• BLE 5.0/RFID

IoT Expansion:

• Supports chain IoT expansion capability, supports up to 5 BLE, RFID, ZigBee, and other full-standard IoT expansion

Working Frequency Band:

• 802.11ax/ac/n/a: 5.725GHz-5.850GHz (China); 5.47GHz～5.725GHz; 5.15GHz~5.35GHz (China)
• 802.11ax/b/g/n: 2.4GHz-2.483GHz (China)

Modulation Technology:

• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
• MIMO-OFDM (11n): MCS 0-15
• MIMO-OFDM (11ac): MCS 0-9
• MIMO-OFDM (11ax): MCS 0-11

Modulation Mode:

• 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
• 11a/g: OFDM: 64-QAM@48/54Mbps, 16-QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
• 11n: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM
• 11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
• 11ax: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Transmit Power (Single Channel):

• 20 dBm

Adjustable Power Granularity:

• 1 dBm

Reset/Restore Factory Settings:

• Supported

Status Indicator:

• Blink alternating flashing mode, orange, green and blue flashing modes in different working states, terminal access breathing flashing mode

Temperature:

• Working Temperature: -10ºC to 55ºC
• Storage Temperature: -40ºC to 70ºC

Humidity:

• Working Humidity: 5% to 95% (non-condensing)
• Storage Humidity: 5% to 95% (non-condensing)

Power Consumption:

• WA6322: ≤ 29W (including PoE_OUT)
• WA6322: ≤ 14W (excluding PoE_OUT)

Safety Regulations:

• GB 4943
• EN/IEC/UL 60950-1
• EN/IEC/UL 62368-1

EMC:

• EN 55024
• EN 55032
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-4-2
• EN 61000-4-3
• EN 61000-4-4
• EN 61000-4-5
• EN 61000-4-6
• EN 61000-4-8
• EN 61000-4-11
• EN 60601-1-2
• EN 301 489-1
• EN 301 489-17

Environment:

• GB/T 2423
• GB/T 13543
• GB 4208

Radio Frequency Certification:

• FCC Part 15
• EN 300 328
• EN 301 893
• MIIT radio transmitter model approval

MTBF (Mean Time Between Failures):

• < 850000 hours
