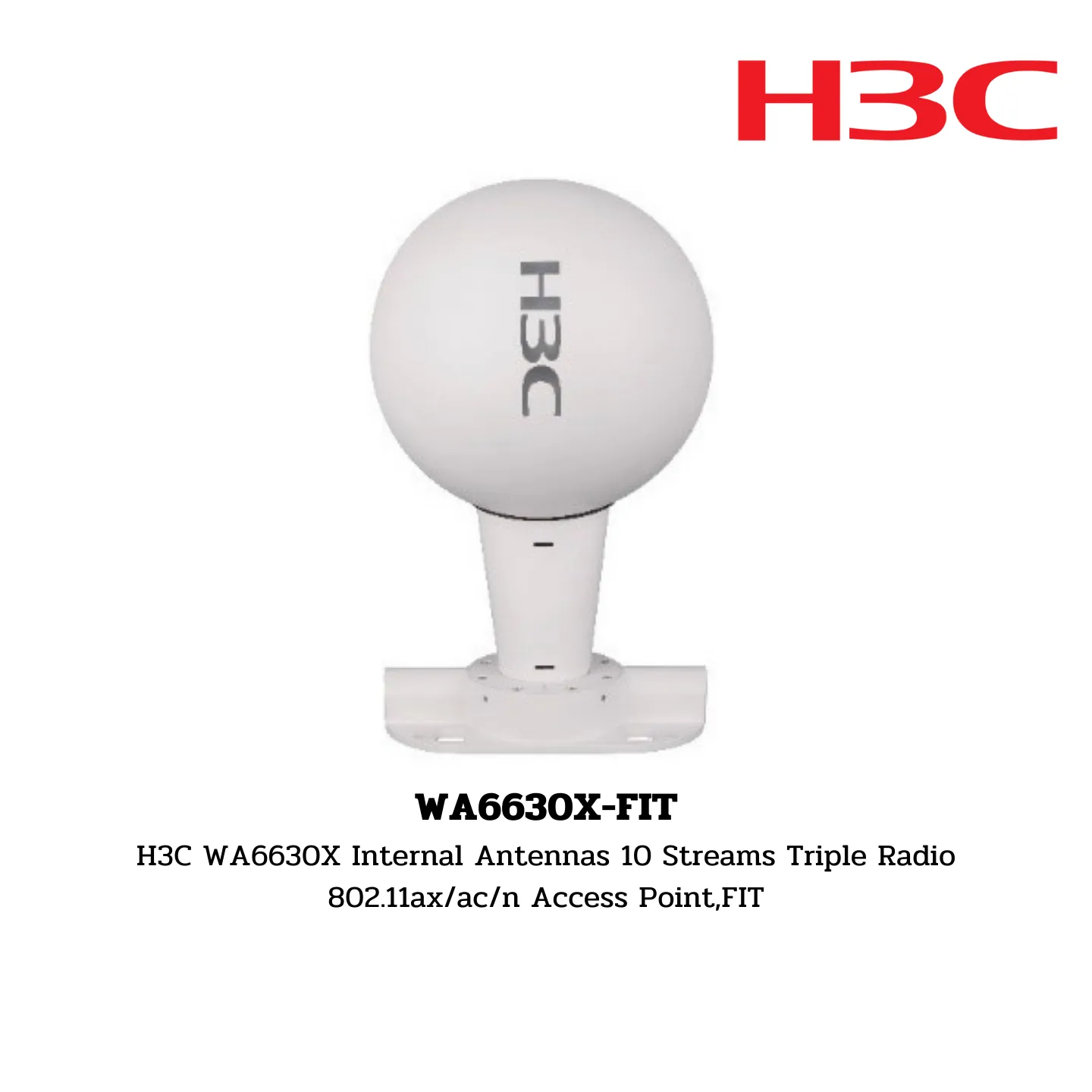

Hardware Specifications
Weight:
- 4.0 kg
Dimensions (W × D × H):
- 260 mm x 260 mm x 394 mm
Interface:
- 1 × 100/1000M/2.5G/5G/10G Multigigabit Ethernet, RJ-45, PoE input
- 1 × 100/1000M Multigigabit Ethernet, RJ-45, PoE output
- 1 × 100/1000M Multigigabit Ethernet, RJ-45
Console Port:
- 1 × Management console port (RJ-45)
PoE Input:
- 1 × 10/100/1000M Ethernet, 802.3at/af
Local Power Supply:
- POE injector (required)
Antenna Type:
- Built-in omni-directional antenna
Antenna Gain:
- 5.8GHz peak gain: 5dBi
- 5.2GHz peak gain: 5dBi
- 2.4GHz peak gain: 6dBi
- Note: The equivalent antenna gain is 4dBi in 5.8GHz, 4dBi in 5.2GHz, and 5dBi in 2.4GHz
Built-in IoT Module:
- BLE 5.0
External IoT Module:
- RFID/Zigbee
Frequency Bands:
- 2.400 to 2.4835GHz ISM
- 5.150 to 5.250GHz U-NII-1
- 5.250 to 5.350GHz U-NII-2A
- 5.470 to 5.725GHz U-NII-2C
- 5.725 to 5.850GHz U-NII-3/ISM
- Note: The available bands and channels are dependent on the configured regulatory domain (country)
Modulation Technology:
- OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
- DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
Modulation Mode:
- 11b: DSSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
- 11a/g: OFDM: 64-QAM@48/54Mbps, 16-QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
- 11n: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM
- 11ac: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 11ax: MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Maximum Transmit Power:
- 5GHz: 27 dBm
- 2.4GHz: 27 dBm
- Note: Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations
Adjustable Power Granularity:
- 1 dBm
Installation:
- Pole mounting/Wall mounting
LED:
- Alternating flashing mode, orange/green/blue for different working states
Temperature:
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
Humidity:
- Operating Humidity: 0% to 100% (non-condensing)
- Storage Humidity: 0% to 100% (non-condensing)
Protection Class:
- IP68
Overall Power Consumption:
- 48.6W (including PSE)
- 33.6W (excluding PSE)
- Note: Power required at the power source equipment (PSE) will depend on the cable length and other environmental issues
Safety Standards:
- IEC/EN 62368-1
- GB 4943.1
- SRRC
EMC Standards:
- EN 301 489-1
- EN 301 489-3
- EN 301 489-17
- EN 60601-1-2
- EN 55032
- EN 55035
- CISPR 32
- CISPR 35
- AS/NZS CISPR 32
- ICES-003 Issue 7
- GB/T 9254.1
- GB/T 9254.2
- GB 17625.1
- GB 17625.2
- IEC/EN 61000-4-2
- IEC/EN 61000-4-3
- IEC/EN 61000-4-4
- IEC/EN 61000-4-5
- IEC/EN 61000-4-6
- IEC/EN 61000-4-8
- IEC/EN 61000-4-11
- IEC/EN 61000-3-2
- IEC/EN 61000-3-3
Radio Standards:
- ETSI EN 300 328
- ETSI EN 301 893
- ETSI EN 300 440
- FCC Part 15E
RoHS Standards:
- DIRECTIVE 2011/65/EU
- (EU) 2015/863
Health Standards:
- EN 50385:2017
- EN IEC 62311:2020
MTBF (Mean Time Between Failures):
- > 154875 hours
