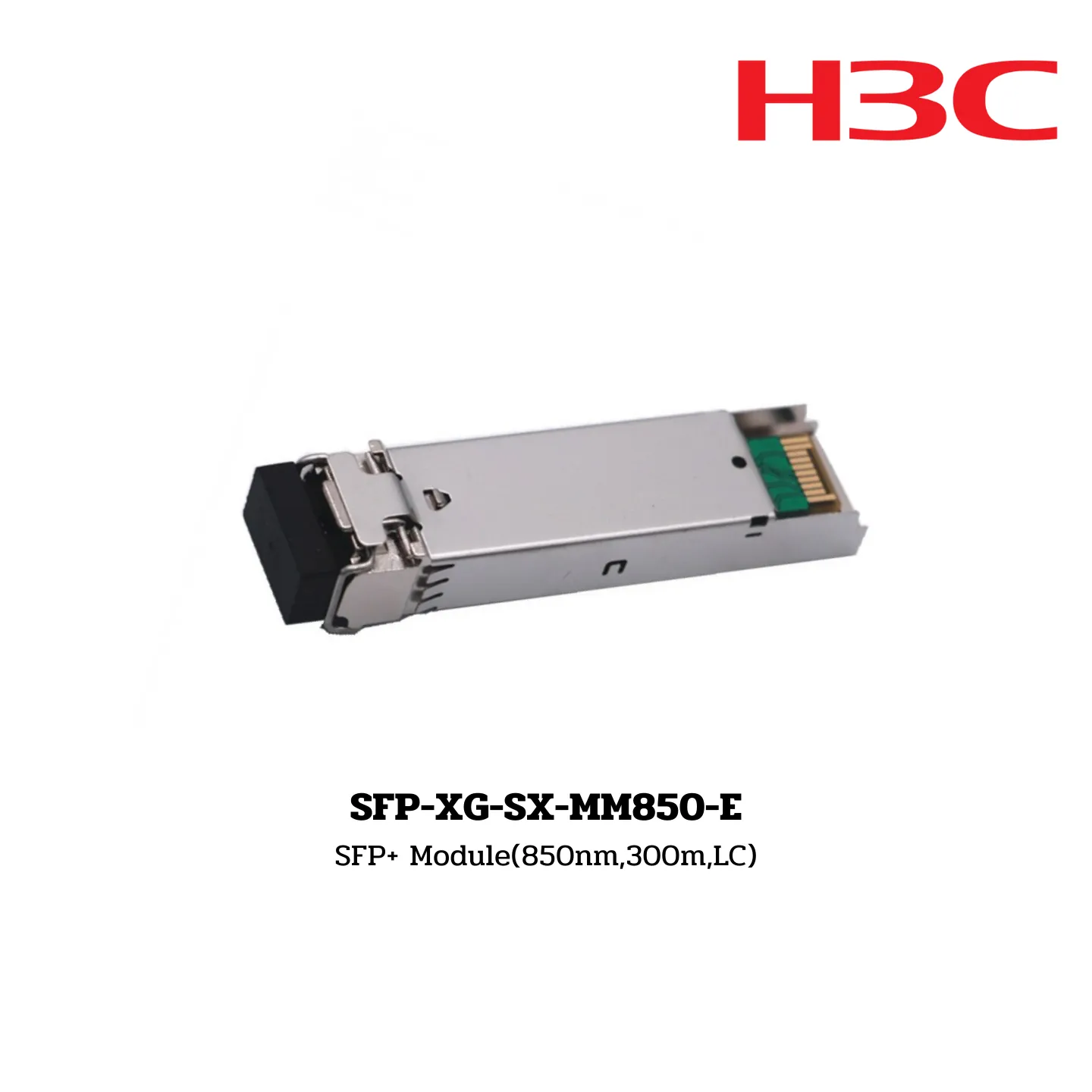

SFP-XG-SX-MM850-E
SFP+ Module(850nm,300m,LC)
Specifications
Wavelength:
- 850 nm
Maximum Transmission Distance:
- Up to 300 meters (984.25 feet) on multi-mode fiber (MMF)
Data Rate:
- 10 Gbps
Connector Type:
- LC duplex
Fiber Type:
- Multi-mode (MMF)
Transmit Power:
- 7.3 to -1 dBm
Receive Sensitivity:
- ≤ 9.9 dBm
Fiber Diameter:
- 50/125 µm or 62.5/125 µm
Additional Specifications
Brand:
- H3C
Max Data Rate:
- 10.3125 Gbps
Cable Type:
- Multimode Fiber
Max Distance:
- 300 meters
DOM Support:
- Yes
Temperature Range:
- 0°C to 70°C
Compatibility:
- IEEE 802.3ae
Transmitter Type:
- VCSEL
Receiver Type:
- PIN
Energy Consumption:
- 1W
MTBF (Mean Time Between Failures):
- 1,000,000 hours
Compliance:
- RoHS, CE, FCC
EMC Standard:
- EN 55022
Shock and Vibration:
- IEC 60068-2-27
Humidity:
- 5% to 95%
