H3C Access Point รุ่น WA6120

WA6120

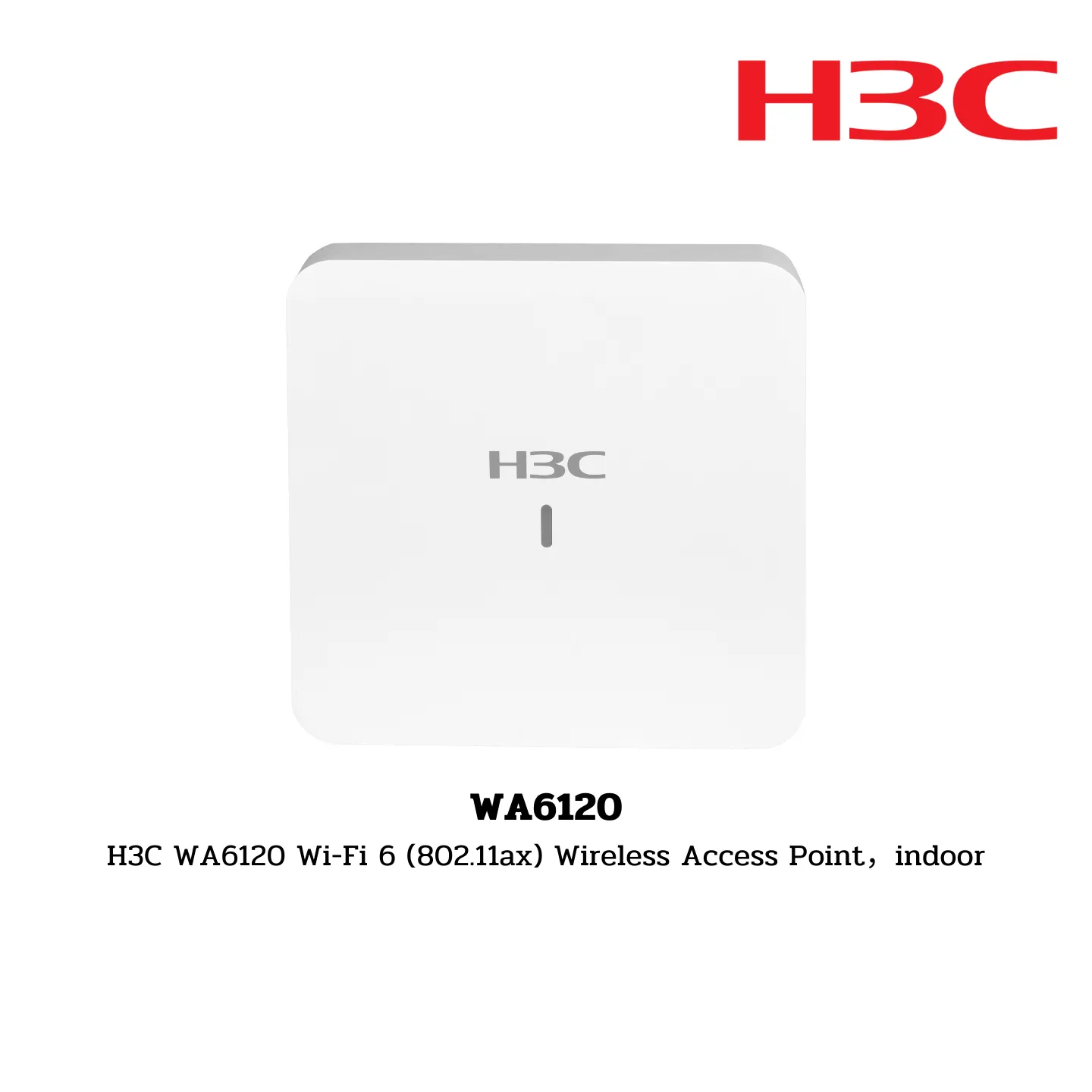

H3C WA6120 Wi-Fi 6 (802.11ax) Wireless Access Point，indoor

Hardware Specifications

Dimensions:

• 32 × 180 × 180 mm (H x W x D) (excluding antenna connectors and mounting accessories)

Fixed Port:

• 1 × 10/100/1000M electrical port

PoE In:

• 802.3af

Local Power Supply:

• 54V DC

Console Port:

• 1

Built-in Antenna:

• Internal Omni-directional antenna
  • 3dBi antenna gain @2.4GHz
  • 4dBi antenna gain @5GHz

Working Frequencies:

• 802.11ax/ac/n/a: 5.725 GHz – 5.850 GHz; 5.47 GHz – 5.725 GHz; 5.15 GHz – 5.35 GHz
• 802.11ax/b/g/n: 2.4 GHz – 2.483 GHz

Modulation Technology:

• OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
• DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps
• MIMO-OFDM(11n): MCS 0-15
• MIMO-OFDM(11ac): MCS 0-9
• MIMO-OFDM(11ax): MCS 0-11

Modulation Mode:

• 11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
• 11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
• 11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Transmit Power (Combined Power):

• 2.4G: 23 dBm
• 5G: 23 dBm
• Note: Varies depending on local laws and regulations

Adjustable Power Granularity:

• 1 dBm

Power Consumption:

• ≤13W

Reset/Restoration to Factory Default:

• Supported

State LED:

• Alternating flashing mode, orange/green/blue for different working states, breathing mode

Operating Temperature/Storage Temperature:

• Operating: -10ºC to +55ºC
• Storage: -40ºC to +70ºC

Operating Humidity/Storage Humidity:

• Operating: 5% – 95% (non-condensing)
• Storage: 5% – 95% (non-condensing)

Safety Compliance:

• GB 4943, EN/IEC/UL 60950-1, EN/IEC/UL 62368-1

EMC:

• EN 55024, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 60601-1-2, EN 301 489-1, EN 301 489-17

Environment:

• GB/T 2423, GB/T 13543, GB 4208

Radio Frequency Certification:

• FCC Part 15, EN 300 328, EN 301 893, and MIIT SRRC

MTBF (Mean Time Between Failures):

• 814,581 hours
