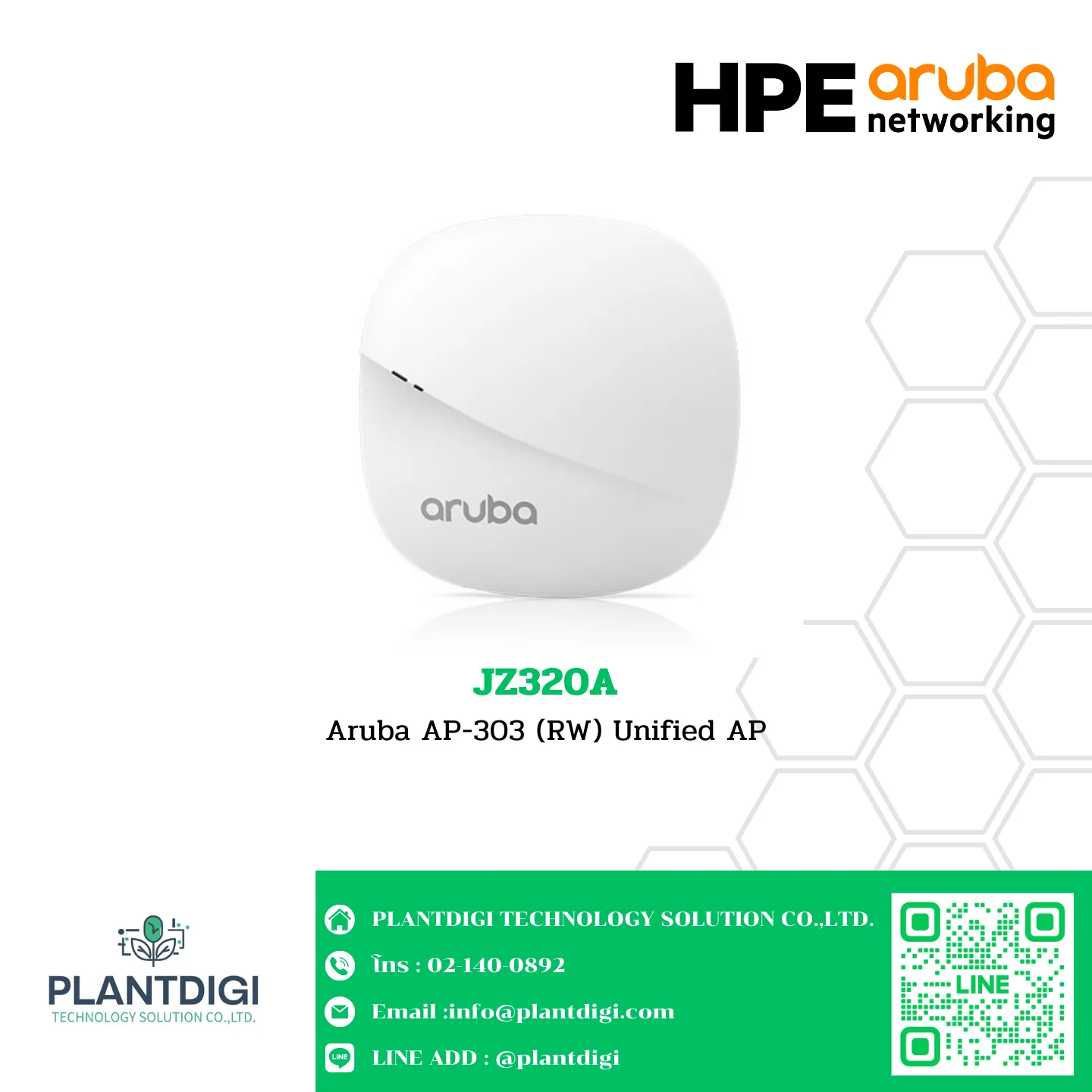

HPE Access Point Aruba รุ่น JZ320A

JZ320A
Aruba AP-303 (RW) Unified AP

Unified AP – Deploy with or without Controller:

• The 303 Series access points can be deployed in either controller-based (ArubaOS) or controller-less (InstantOS) deployment mode.

Dual Radio 2×2 802.11ac Access Point with Multi-User MIMO (Wave 2):

• Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 client devices) and up to 300Mbps in the 2.4GHz band (with 2SS/HT40 clients).
• Backwards compatible with 100/1000Base-T.

Built-in Bluetooth Low-Energy (BLE) Radio:

• Enables location-based services with BLE-enabled mobile devices receiving signals from multiple HPE Aruba Networking Beacons at the same time.
• Enables asset tracking when used with HPE Aruba Networking Asset Tags.

Advanced Cellular Coexistence (ACC):

• Minimizes interference from 3G/4G cellular networks, distributed antenna systems, and commercial small cell/femtocell equipment.

Quality of Service for Unified Communications Applications:

• Supports priority handling and policy enforcement for unified communication apps, including Skype for Business with encrypted videoconferencing, voice, chat, and desktop sharing.
• HPE Aruba Networking AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for over 1,500 enterprise apps or groups of apps.

RF Management:

• Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
• The HPE Aruba Networking 303 Series Access Points can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

Spectrum Analysis:

• Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4GHz and 5GHz radio bands to identify sources of RF interference from HT20 through VHT80 operation.

Security:

• Integrated wireless intrusion protection offers threat protection and mitigation, eliminating the need for separate RF sensors and security appliances.
• IP reputation and security services identify, classify, and block malicious files, URLs, and IPs, providing comprehensive protection against advanced online threats.
• Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

AP Type:

• Indoor, dual radio, 5GHz 802.11ac 2×2 MIMO and 2.4GHz 802.11n 2×2 MIMO.

5GHz (Radio 0):

• Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2SS VHT80 client devices.
• Two spatial stream Multi User (MU) MIMO for up to 867Mbps wireless data rate to two 1SS MU-MIMO capable client devices simultaneously.

2.4GHz (Radio 1):

• Two spatial stream Single User (SU) MIMO for up to 300Mbps wireless data rate to individual 2SS HT40 client devices.

Capacity:

• Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio.
