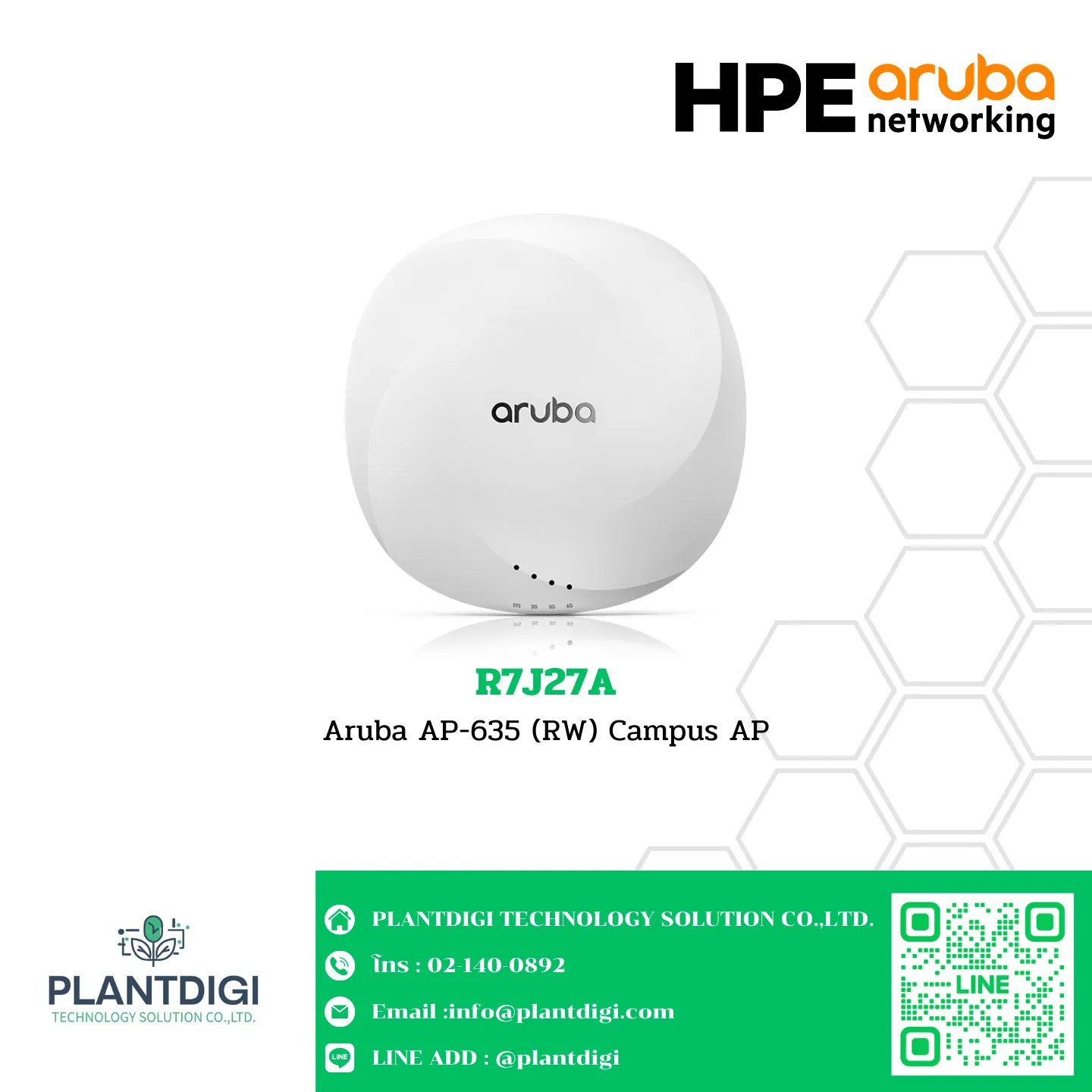

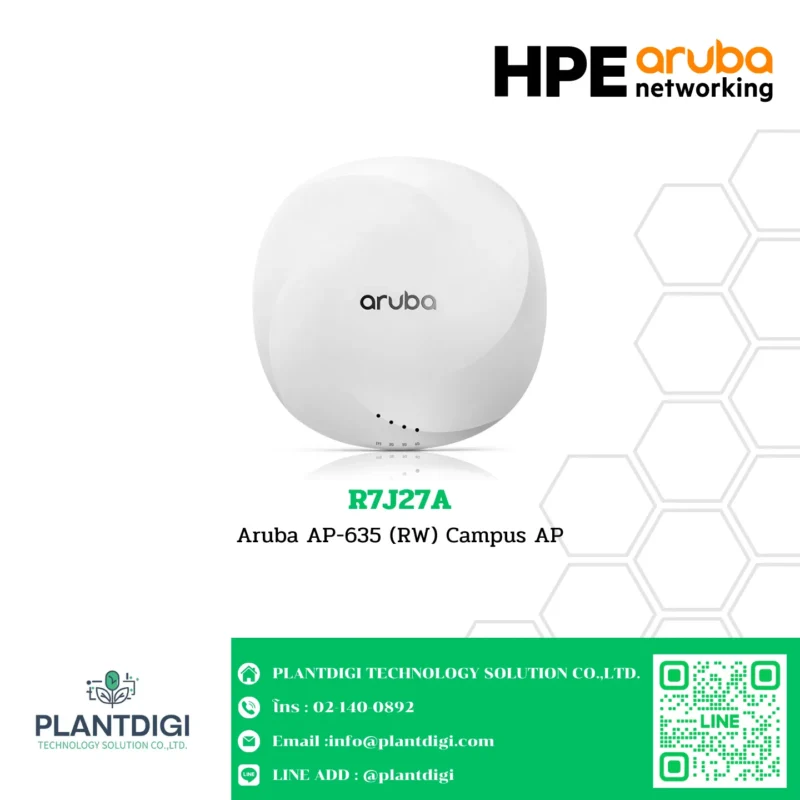

HPE Access Point Aruba รุ่น R7J27A

R7J27A
Aruba AP-635 (RW) Campus AP

Specifications

Ports:

• E0, E1: Two Ethernet wired network ports (RJ-45)
  • Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
  • 2.5Gbps speed complies with NBase-T and 802.3bz specifications
  • POE-PD: 48Vdc (nominal) 802.3af/at/bt POE (class 3 or higher)
  • 802.3az Energy Efficient Ethernet (EEE)

Mounting:

• A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately).

Connectivity, Standard:

• WLAN: Tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO
• Bluetooth Low Energy (BLE5.0) and Zigbee (802.15.4) radio

Input Voltage:

• 12 Vdc (+/- 5%) or 48 Vdc (nominal) POE

Power Consumption:

• 23.8W worst case (POE powered), 20.7W worst case (DC). Excludes power needed to supply up to 5W to an attached USB device.

Heat Dissipation:

• 66.3 BTU/hr worst case (POE powered), 57.9 BTU/hr worst case (DC)

Certifications:

• UL2043 plenum rating
• Wi-Fi Alliance
• Wi-Fi CERTIFIED a, b, g, n, ac
• Wi-Fi CERTIFIED 6E (ax, 6GHz)
• WPA, WPA2 and WPA3 – Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE)
• WMM, WMM-PS, Wi-Fi Vantage, Wi-Fi Agile Multiband
• Wi-Fi Location
• Passpoint (release 2)
• Bluetooth SIG
• Ethernet Alliance (POE, PD device, class 5)

Regulatory:

• FCC/ISED
• CE Marked
• RED Directive 2014/53/EU
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950
• IEC/EN 62368-1
• EN 60601-1-1, EN60601-1-2

Wi-Fi Antenna:

• Two integrated dual-band downtilt omni-directional antennas for 2×2 MIMO with peak antenna gain of 4.6dBi in 2.4GHz, 7.0dBi in 5GHz and 6.3dBi in 6GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees. Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 2.9dBi in 2.4GHz, 4.9dBi in 5GHz and 4.3dBi in 6GHz.

Radio Coverage:

• Indoor, tri radio, 2.4GHz, 5GHz and 6GHz (concurrent) 802.11ax 2×2 MIMO

Product Dimensions (Metric):

• 220mm (W) x 220mm (D) x 50mm (H)
