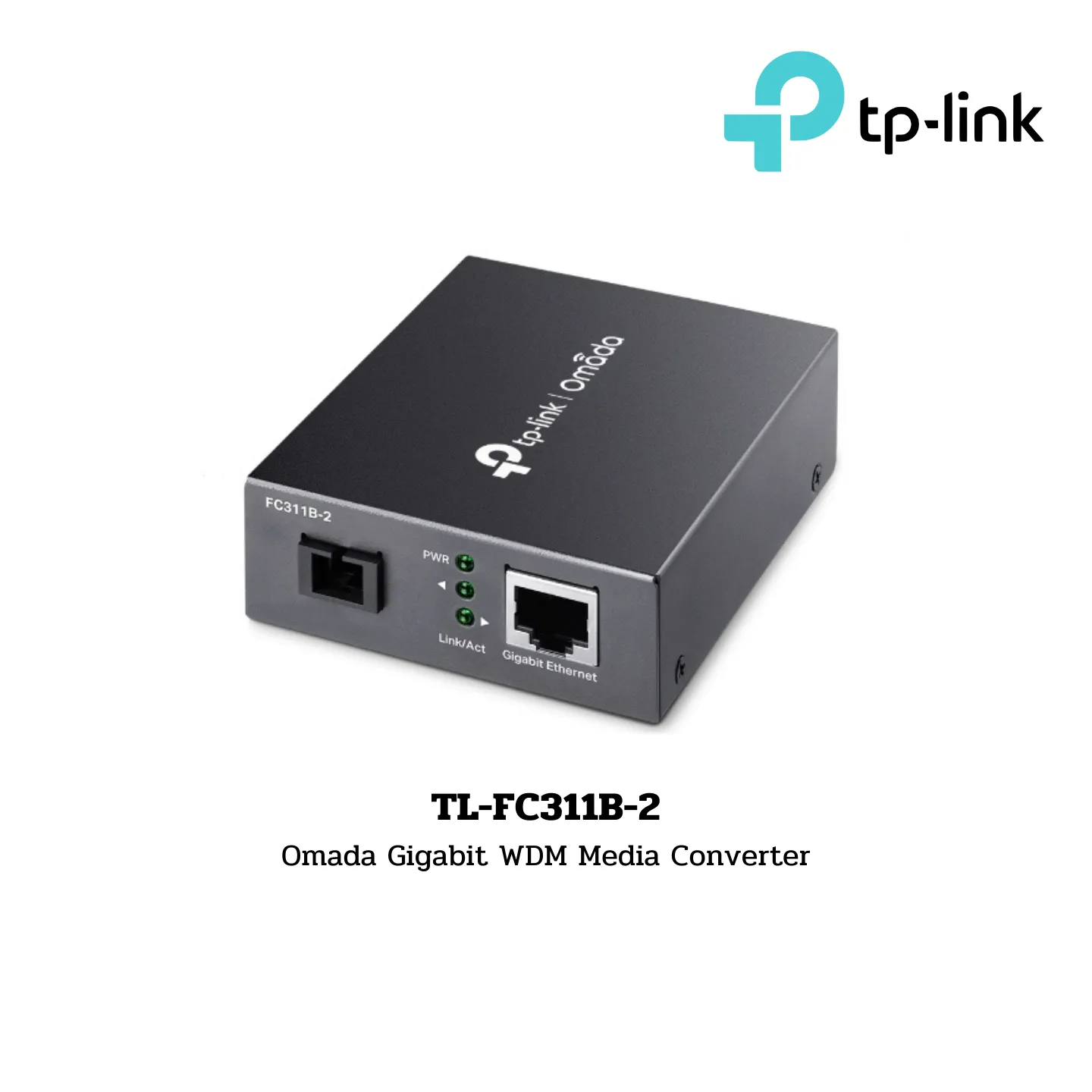

TP-Link ตัวแปลงสัญญาณไฟเบอร์ TL-FC311B-2 Omada Gigabit WDM Media Converter

TL-FC311B-2
Omada Gigabit WDM Media Converter

Brand:

• TP-Link

Port:

• 1× Gigabit SC Port
• 1× Gigabit RJ45 Port (Auto MDI/MDIX)

Specification:

• Full-duplex, Tx: 1310 nm, Rx: 1550 nm
• Up to 2 km
• Chassis TL-FC1420 Rack-mountable

Network:

Standards and Protocols:

• IEEE 802.3
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.3z

Environment:

Operating Temperature:

• 0˚C to 50˚C (32˚F to 122˚F)

Storage Temperature:

• -40˚C to 70˚C (-40˚F to 158˚F)

Operating Humidity:

• 10% to 90% RH non-condensing

Storage Humidity:

• 5% to 90% RH non-condensing

Hardware Features:

Interface:

• 1× Gigabit SC/UPC Fiber Port
• 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)

Network Media:

• Single-mode Fiber (9/125μm, maximum 2 km)
• UTP category 5, 5e cable (maximum 100 m)

Power Supply:

• External Power Adapter: 5 V/0.6 A

LED:

• PWR, Link/Act

Wave Length:

• 1310 nm TX, 1550 nm RX

Dimensions (W x D x H):

• 3.7×2.9×1.1 in (94.5×73.0×27.0 mm)

Others:

Package Contents:

• Media Converter FC311B-2
• Power Adapter
• Installation Guide
