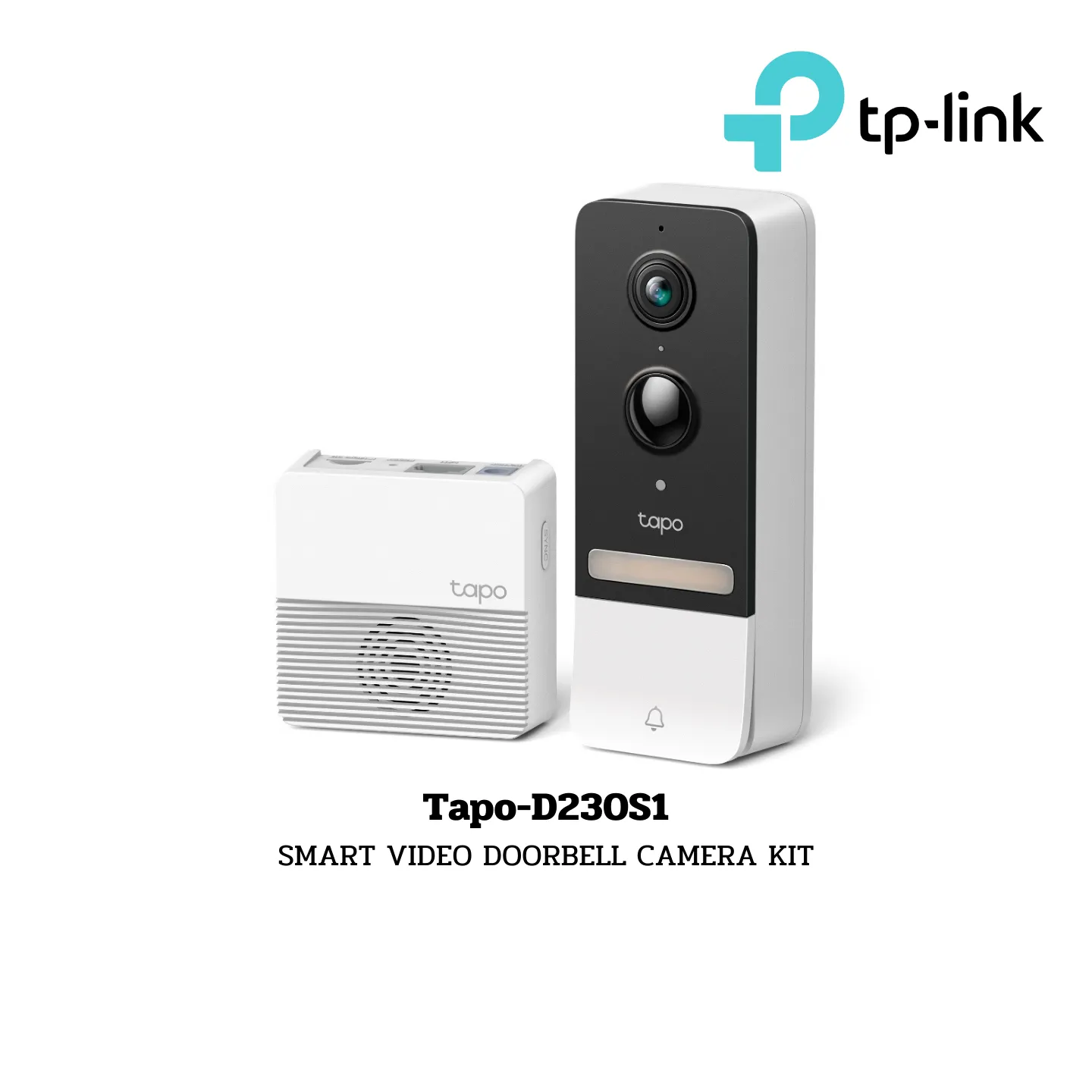

TP-Link Tapo Smart Doorbell รุ่น Tapo D230S1

Tapo D230S1
SMART VIDEO DOORBELL CAMERA KIT

Brand:

• TP-Link

Description:

• Smart Video Doorbell Camera Kit

Components:

• 1 × Tapo D230
• 1 × Tapo H200

Specifications:

• Resolution:
  • 2K 5MP (2560×1920)
• Connectivity:
  • 2.4 GHz Wi-Fi
• Battery:
  • 5200mAh rechargeable lithium-ion battery

Features:

• Ringtones: Customizable doorbell ringtones.
• 180 Days Battery Life: Long-lasting battery for continuous security.
• Head to Toe View (4:3): Provides a comprehensive view from head to toe.
• Smart Detection and Notifications: Detects motion, people, pets, cars, and packages, and sends alerts to your phone.
• Color Night Vision: Clear visibility in color even at night.
• Two-Way Audio: Communicate with visitors through the built-in microphone and speaker.
• Quick Response: Allows for quick replies to visitors.
• Video Call: Enables video calling to your phone.
• Voice Control: Compatible with Google Assistant and Alexa for hands-free operation.
• Local Storage: Supports microSD card storage (up to 256 GB).
• Tapo App: Easy setup and management through the Tapo app.
• Weatherproof: Rated IP64 for outdoor use.
• Night Vision: Clear visibility in the dark, up to 7.5 m.

Detailed Specifications:

Camera:

• Image Sensor:
  • 1/2.7“ Progressive Scan CMOS Sensor
• Lens:
  • Focal Length: 2.1 mm
  • Aperture: F2.1
• Field of View:
  • 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical)
• Night Vision:
  • 850 nm IR LED (25 ft / 7.6 m)
  • Full-Color Night Vision
• Lighting:
  • Built-in Spotlights
• Interface & Button:
  • 1× RESET Button
  • 1× Doorbell Button
  • 1× Anti-Theft Button

Hub:

• Device Compatibility:
  • Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
• Connection Capacity:
  • Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells
• Interface & Button:
  • 1× Ethernet Port
  • 1× RESET Button
  • 1× SYNC Button
  • 1× MicroSD Card Slot (Up to 512 GB)

Video & Audio:

• Maximum Resolution:
  • 2K 5MP (2560 × 1920px)
• Frame Rate:
  • 15 fps
• Digital Zoom:
  • 16x
• Video Compression:
  • H.264
• Live View:
  • Yes
• Image Enhancement:
  • 3DNR, WDR
• Audio Input & Output:
  • Built-in Microphone and Speaker
• Audio Communication:
  • Two-Way Audio with Noise Cancellation
• Siren Volume:
  • Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance)
  • Hub: 100 dB (Level measured at 4-inch/10-cm distance)

Storage:

• Local Storage:
  • MicroSD Card Slot on Hub (Up to 512 GB)
• Cloud Storage:
  • Tapo Care Cloud Storage Services (Subscription required)

Detection and Notifications:

• Sensor:
  • Single PIR Motion Sensor (FOV: 130° horizontal)
  • One Ambient Light Sensor
• AI Detection:
  • Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Package Detection
• Activity Zones:
  • Yes (Only works with Motion Detection)
• Output Notification:
  • System Notification, System Notification with Snapshot (Tapo Care Services)

Network:

• Network Connectivity:
  • Connect via Wi-Fi
• Wireless Connectivity:
  • IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
  • Sub-1G, 868MHz (Used for local connection between doorbell and hub)
• Ethernet Port:
  • 1× 10/100 Mbps RJ45 Port on Hub

Security:

• Security:
  • On-Device Machine Learning
  • 128-bit AES Encryption with SSL/TLS
  • WPA/WPA2-PSK

Power:

• Power Source:
  • Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery
  • Hub: 9V DC Power Adapter
• Input Voltage:
  • Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz
  • Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A
• Output Voltage:
  • Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A
  • Hub Adapter Output: 9.0 V, 0.85 A

General:

• Smart Integration:
  • Google Assistant, Amazon Alexa
• Weather Resistance:
  • IP64
• System Requirements:
  • Tapo App: iOS 9.0 or higher, Android 4.4 or higher
• Mounting Options:
  • Stick to a Wall, Mount to a Wall
• Operating Temperature:
  • -20℃~45℃
• Storage Temperature:
  • -20℃~45℃
• Operating Humidity:
  • 10%~90% RH, Non-condensing
• Storage Humidity:
  • 5%~90% RH, Non-condensing

Dimensions:

• Doorbell Dimensions:
  • 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm)
• Hub Dimensions:
  • 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)

Package Contents:

• Tapo Video Doorbell × 1
• Tapo H200 Hub × 1
• Tapo A100 Battery × 1
• DC Power Adapter × 1
• RJ45 Ethernet Cable × 1
• USB Adapter Cable × 1
• Screws and Anchors × 3
• 3M Adhesive × 1
• Mounting Bracket × 1
• Mounting Template × 1
• 15° Mounting Wedge × 1
• Doorbell Detaching Pin × 1
• Button Sticker × 1
• Mounting Wedge Screw × 5
• Quick Start Guide

Certifications:

• CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA

สอบถามค่าติดตั้ง Service Installation
