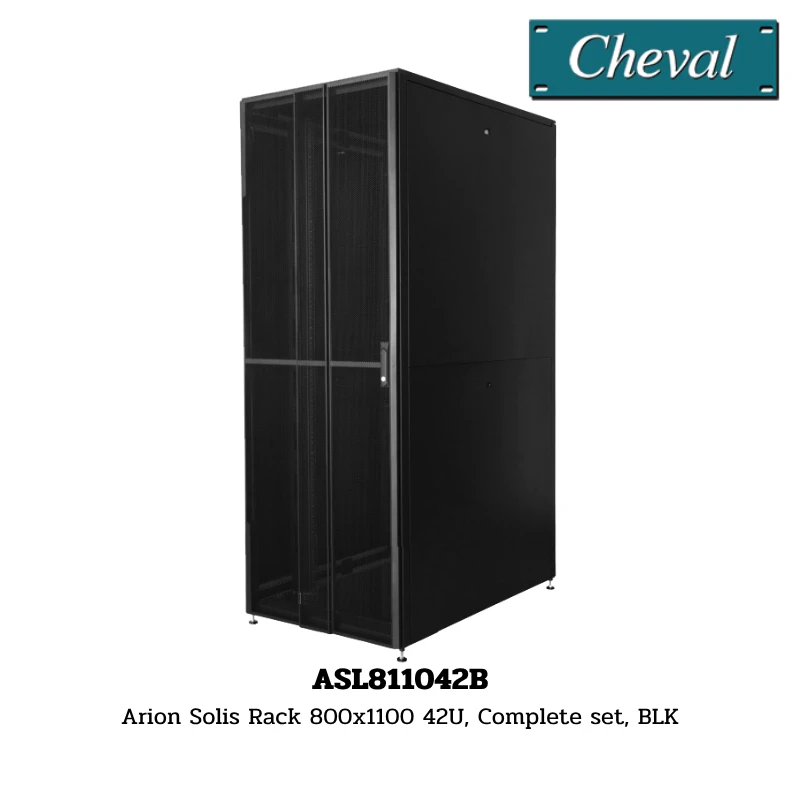

Cheval Arion Solis Rack 800×1100 42U, Complete set, BLK (ASL811042B)

Name: Cheval Arion Solis Rack 800x1100 42U, Complete set, BLK (ASL811042B) - Plantdigi
SKU: ASL811042B

Cheval Arion Solis Rack 800×1100 42U, Complete set, BLK (ASL811042B)
Rack Type: 19″ Rack Cabinet
Series: Arion Solis Rack
Rack Size: 42U, 800W × 1100D mm
Load Capacity: 800 kg
Door: High Density Perforated Door (>80% Open Area)
Mounting Rails: Adjustable 19″ Vertical Rails, 20 mm Increments
Cable Access: Top and Base Cable Access
Cable Management: 800 mm Wide Design
Material: Premium Grade Hot and Cold Rolled Steel
Assembly Time: Approximately 20 Minutes
Color: Low Gloss Textured Black
Standards: EIA-310E, IEC-60297-1/2
Compliance: RoHS Compliant

ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา

โทร : 02-140-0892

มือถือ : 089-314-3423

Line ID : @plantdigi

Email : info@plantdigi.com

📋 ขอใบเสนอราคา สอบถามสต๊อกสินค้า

รหัสสินค้า: ASL811042B หมวดหมู่: ARION SOLIS 800 Series 19” Network Cabinet ป้ายกำกับ: ASL811042B, Cheval

คำอธิบาย

Cheval Arion Solis Rack 800×1100 42U, Complete set, BLK (ASL811042B)

Arion Solis 800 series is designed for both large and small networking deployments. Primarily for networking and structured cable installations, Solis is also ideally suited for mixed IT environments using networking, server, storage and other IT gear.

FEATURES

Extra width for convenient internal cable routing and thermal management
Cable access through top or base
800 KG load capacity
Contoured high density perforated door exceeds 80% open area
Vendor neutral, accepts any 19” standard rack mounted product
Light weight and strong.
Split level side panels provide convenient access to installed equipment.
Depth adjustable 19” vertical mounting rails in 20 mm increments
“U” numbers printed on 19” rails.
Knock down design for efficient shipping.
Up to 120 sets per 40’ container (bulk pack)
Quick assembly time, approximately 20 minutes.
Lift off door type for quick release
Field reversible doors.
Flexible packing methods allows for convenient stocking and end user delivery.

STANDARDS & MATERIALS

Dimensions conform to EIA-310E, IEC-60297-1, 2
Five stage iron-phosphate pretreatment with textured powder coat finish, tested to 500 hours salt spray under ASTM-D610-01 and ASTM-B117
Standard color is low gloss textured black
Premium grade Hot and Cold rolled steel sheet
Designed and Manufactured under ISO 9001:2015 and ISO 14001:2015
All materials RoHS compliant

ข้อมูลจำเพาะ (Specification)

รายการ	รายละเอียด (Description)
Brand	Arion
Series	Arion Solis Rack
Model	ASL811042B
Rack Type	19″ Rack Cabinet
Rack Unit	42U
Rack Width	800 mm
Rack Depth	1100 mm
Load Capacity	800 kg
Door Type	High Density Perforated Door, >80% Open Area
Side Panels	Split Level Side Panels, Removable
Mounting Rails	Adjustable 19″ Vertical Mounting Rails
Rail Adjustment	20 mm Increments
Depth Marking	Easy-to-Read Depth Marking
U Numbering	Printed on 19″ Rails
Cable Access	Top and Base Cable Access
Vendor Compatibility	Vendor Neutral, Supports Standard 19″ Rack Mounted Products
Door	Lift-off Door, Field Reversible
Design	Knock Down Design
Assembly Time	Approximately 20 Minutes
Packing Capacity	Up to 120 Sets per 40′ Container (Bulk Pack)
Cable Management	800 mm Wide Design for Internal Cable Routing
Color	Low Gloss Textured Black
Material	Premium Grade Hot and Cold Rolled Steel
Standards	EIA-310E, IEC-60297-1, IEC-60297-2
Surface Treatment	Five Stage Iron-Phosphate Pretreatment with Textured Powder Coat
Corrosion Test	500 Hours Salt Spray under ASTM-D610-01 and ASTM-B117
Quality Management	ISO 9001:2015, ISO 14001:2015
Compliance	RoHS Compliant
