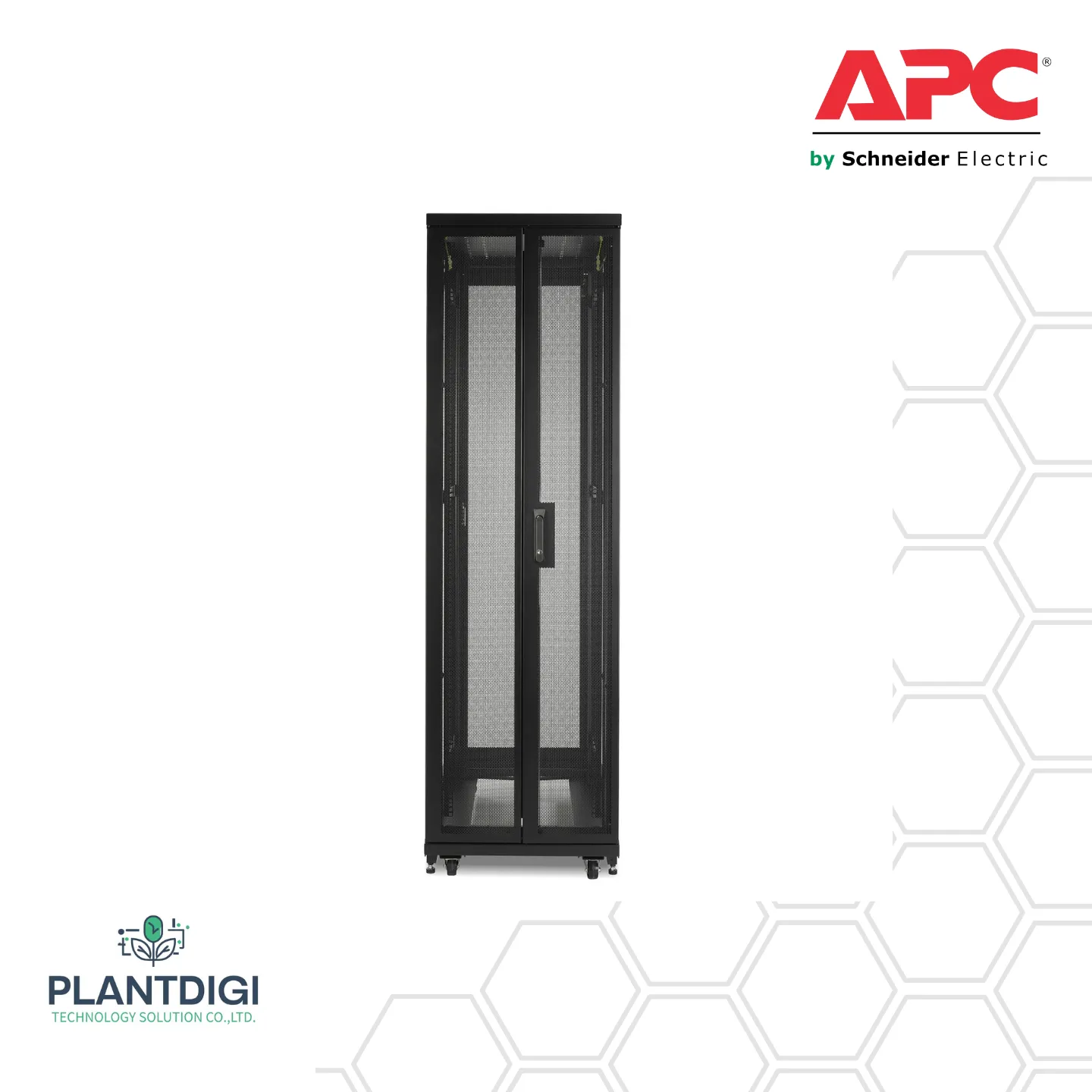

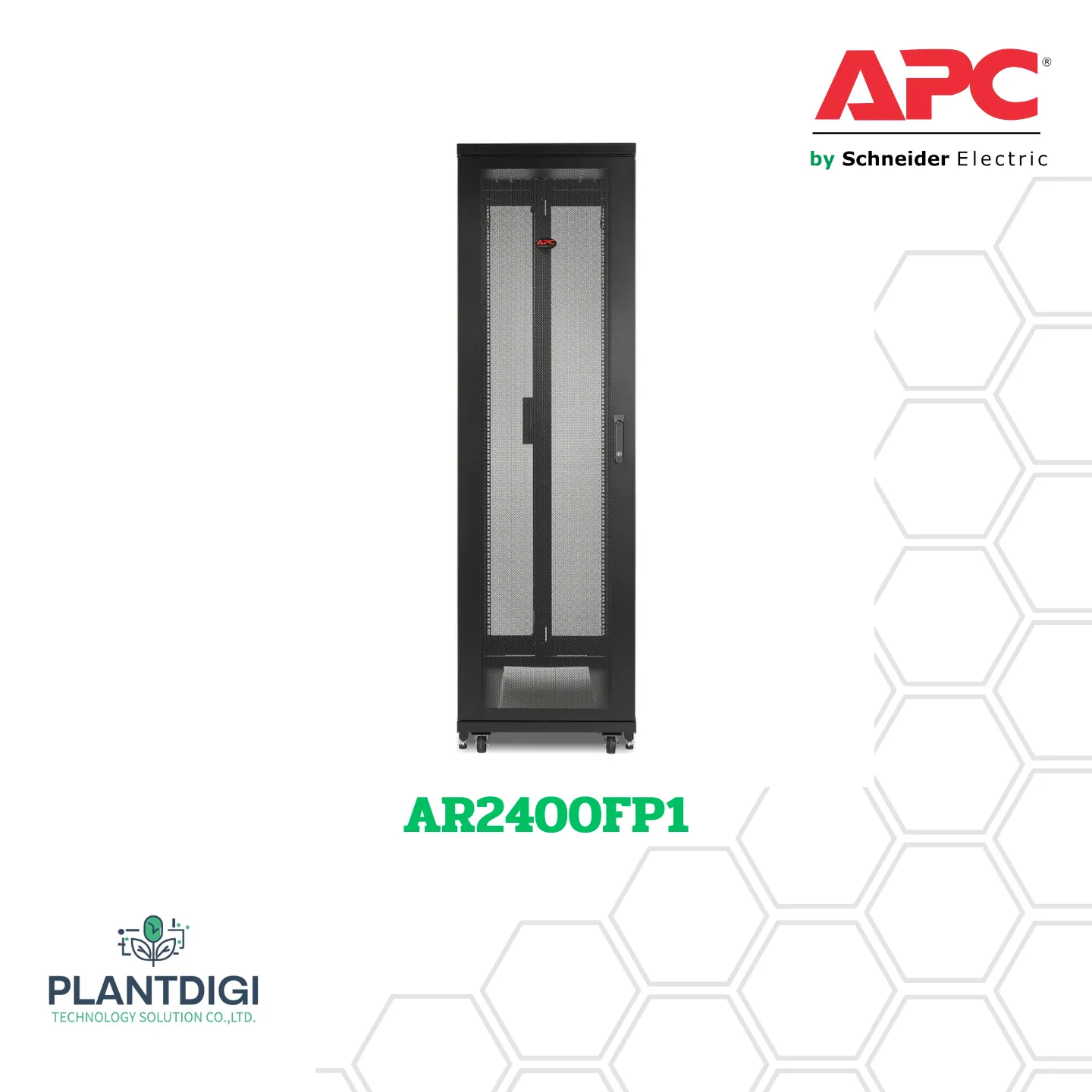

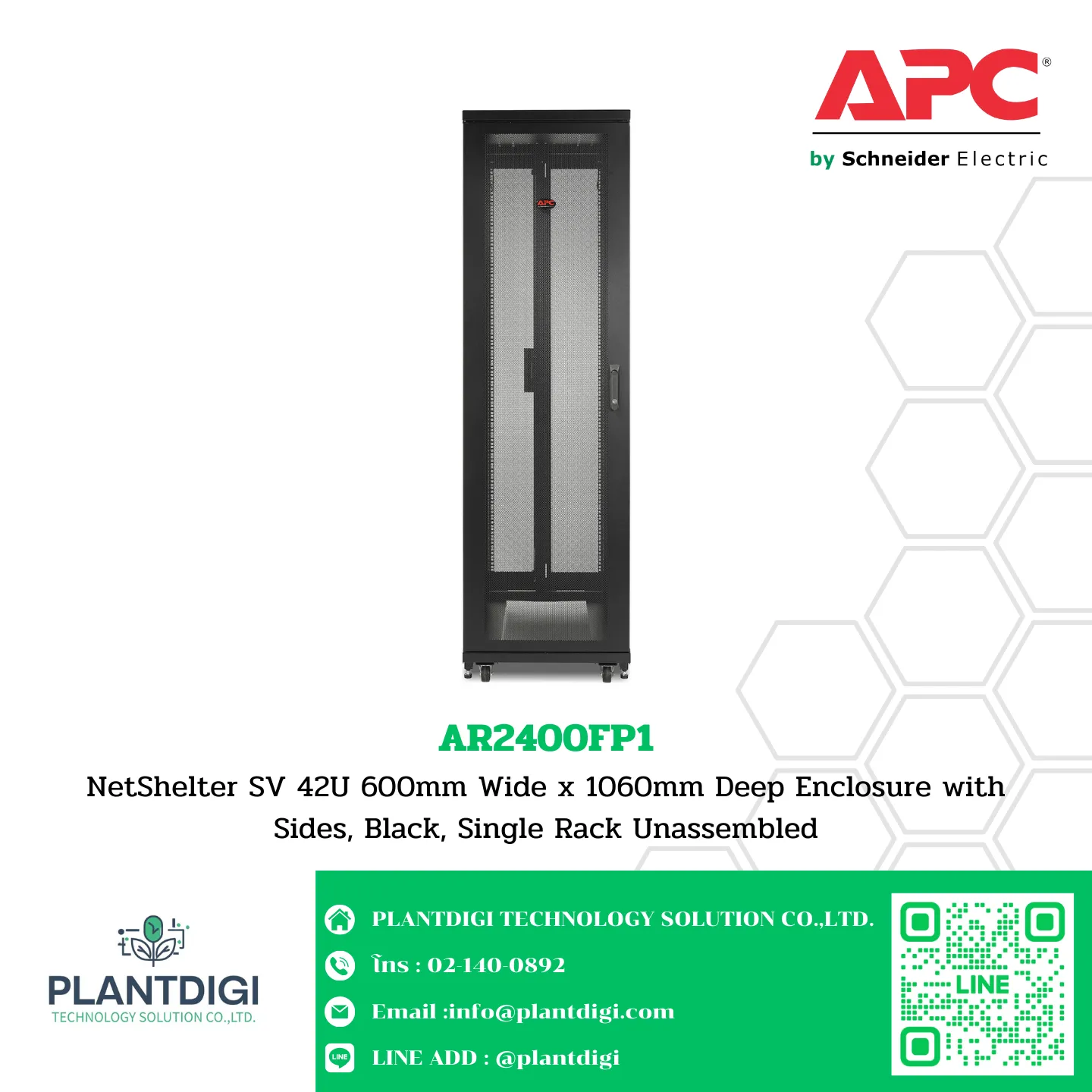

APC NetShelter SV รุ่น AR2400FP1

AR2400FP1
NetShelter SV 42U 600mm Wide x 1060mm Deep Enclosure with Sides, Black, Single Rack Unassembled

———
Overview
———
Presentation: Not all installation sites have space clearance required to move and install standard height enclosures. This unassembled Universal IT enclosure option for low to medium density server and networking applications is packaged for transport through narrow spaces and assembly at the installation site.
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
number of rack unit: 42U
Provided equipment: Adjustable vertical mounting rails, Baying hardware, Casters, Door handle, Doors, Installation guide, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, 2 x Plate, 4 x Bolt down brackets, Roof, Side Panels, Side Panel Lock, Slam Latches

———
Physical
———
Height: 81.0 in (205.7 cm)
Width: 23.6 in (60 cm)
Depth: 41.7 in (106 cm)
Net weight: 247.4 lb(US) (112.2 kg)
Colour: Black
Mounting preference: No preference
mounting mode: Not rack-mountable
Maximum mounting depth: 30.60 in (77.72 cm)
minimum mounting depth: 6.60 in (16.76 cm)
rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 18 gauge post, 16 gauge rear door, 19 gauge roof, 18 gauge side panels
Permanent permissible load: 1014 lb(US) (459.9 kg) dynamic, 2205 lb(US) (1000.2 kg) static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

——————————
Ordering and shipping details
——————————
Category: 11309 – APC RESALE PRODUCTS
GTIN: 731304302049
Returnability: No
Country of origin: CN

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 31.9 in (81 cm)
Package 1 Width: 26.9 in (68.3 cm)
Package 1 Length: 87.8 in (223 cm)
Package 1 Weight: 486.464 lb(US) (220.656 kg)

———————
Contractual warranty
———————
Warranty: 5 year repair or replace
