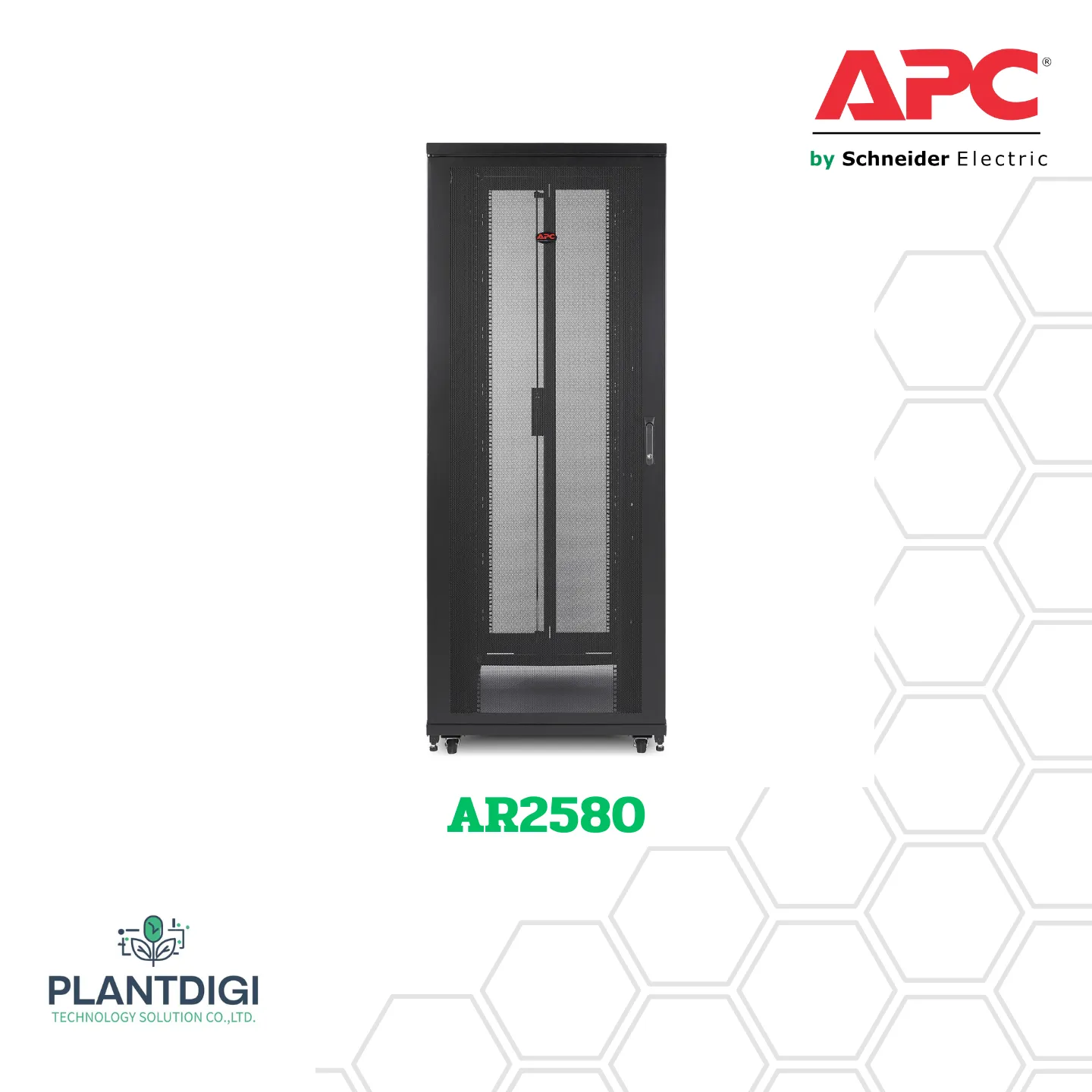

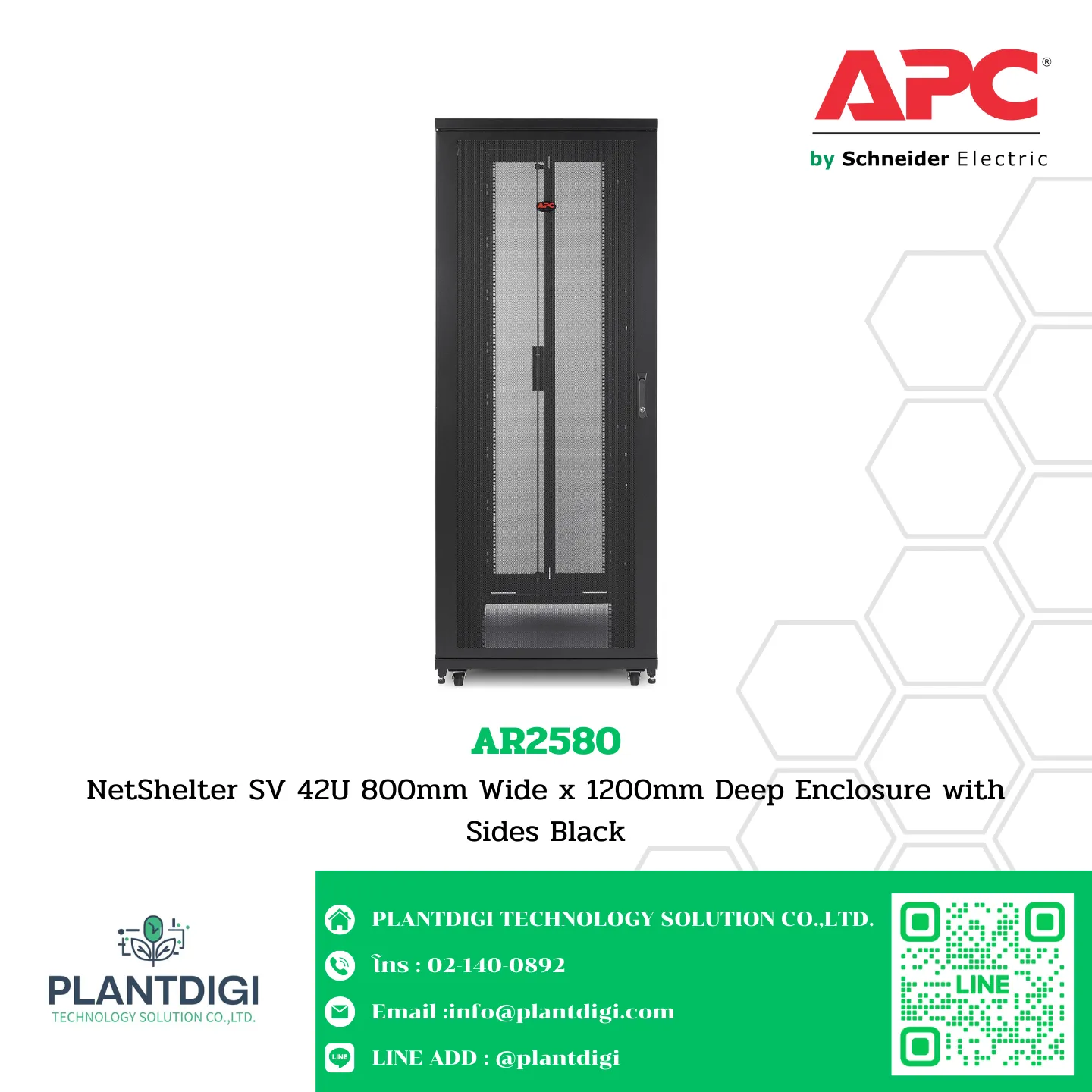

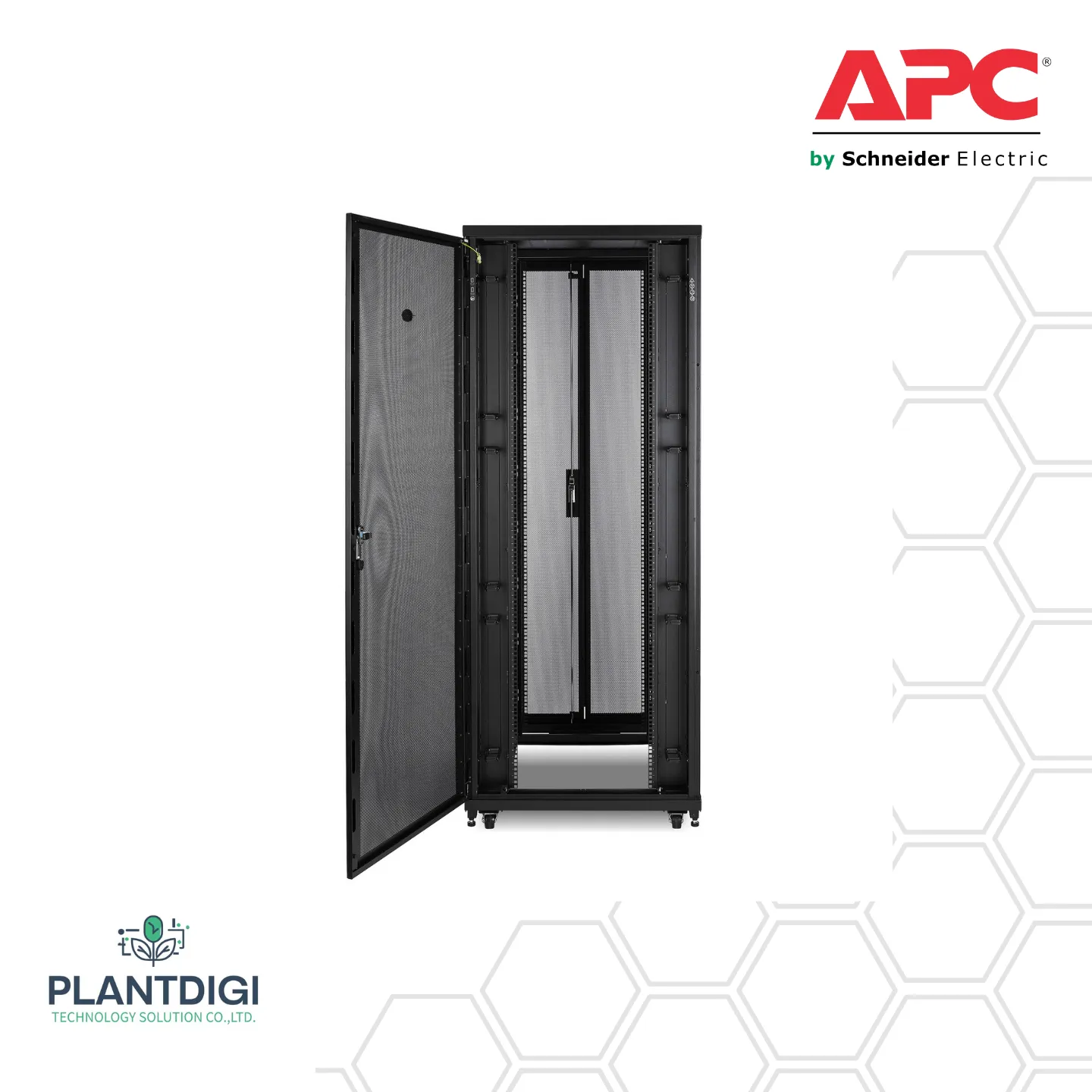

APC NetShelter SV รุ่น AR2580

AR2580
NetShelter SV 42U 800mm Wide x 1200mm Deep Enclosure with Sides Black

———
Overview
———
Presentation: Wide and Deep Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications. Includes integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. Enclosures are deep to provide additional equipment clearance space or more open space for ease of access in the rear of the enclosure. 42U height to easily roll through doorways.
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
number of rack unit: 42U
Provided equipment: Baying hardware, Doors, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, 4 x Bolt down brackets, Roof, Side Panels, Unpacking sheet

———
Physical
———
Height: 81.0 in (205.7 cm)
Width: 31.5 in (80 cm)
Depth: 47.2 in (120 cm)
Net weight: 307.5 lb(US) (139.5 kg)
Colour: Black
Mounting preference: No preference
mounting mode: Not rack-mountable
Maximum mounting depth: 36.10 in (91.69 cm)
minimum mounting depth: 6.60 in (16.76 cm)
rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 18 gauge post, 16 gauge rear door, 19 gauge roof, 18 gauge side panels
Permanent permissible load: 1014 lb(US) (459.9 kg) dynamic, 2205 lb(US) (1000.2 kg) static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

——————————
Ordering and shipping details
——————————
Category: 11309 – APC RESALE PRODUCTS
GTIN: 731304302117
Returnability: No
Country of origin: CN

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 85.9 in (218.1 cm)
Package 1 Width: 37.008 in (94 cm)
Package 1 Length: 51.2 in (130 cm)
Package 1 Weight: 352.881 lb(US) (160.064 kg)

———————
Contractual warranty
———————
Warranty: 5 year repair or replace

สอบถามค่าติดตั้ง Service Installation
