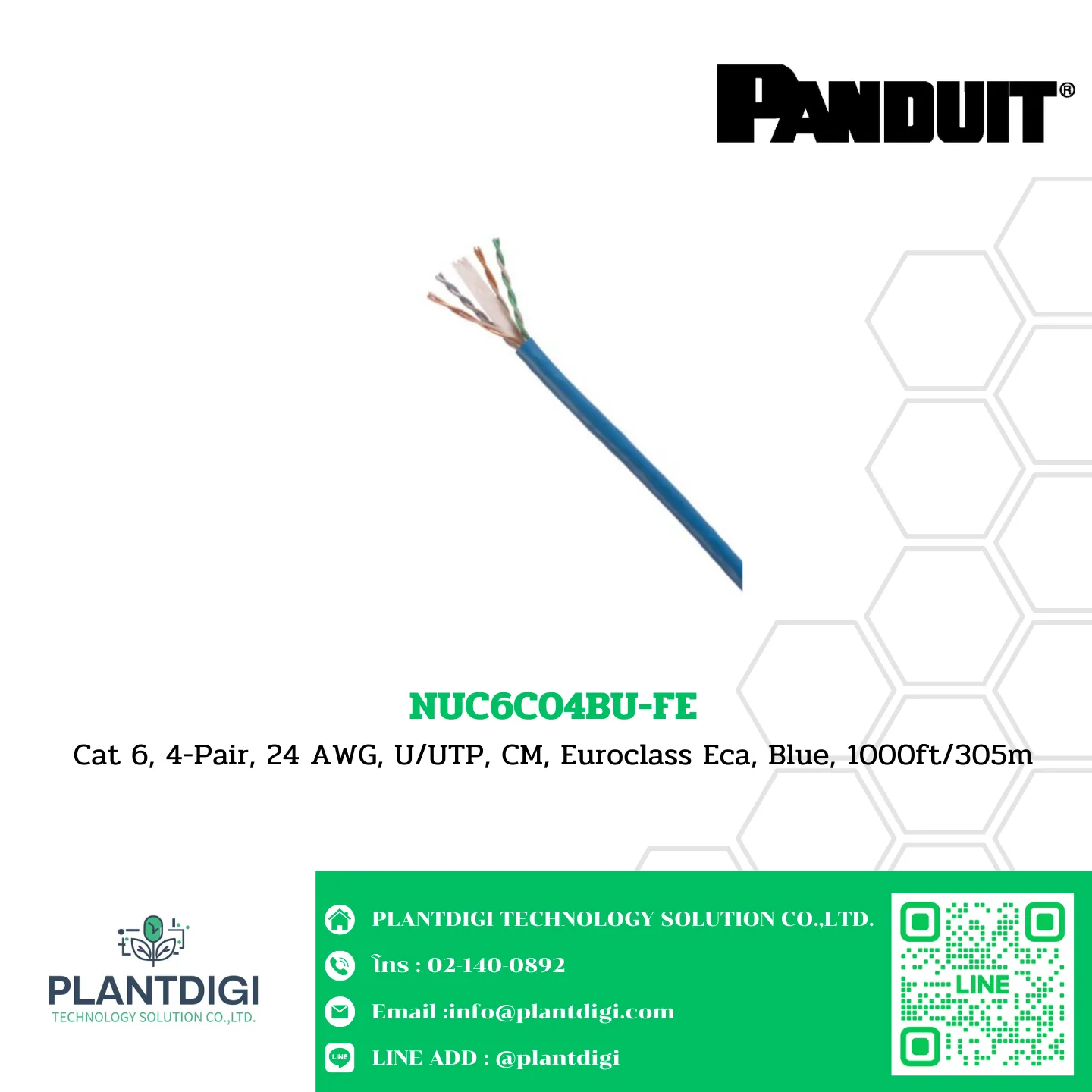

Panduit Copper Cable รุ่น NUC6C04BU-FE

NUC6C04BU-FE
Cat 6, 4-Pair, 24 AWG, U/UTP, CM, Euroclass Eca, Blue, 1000ft/305m

Overview

PanduitThe Cat 6, 4-Pair, 24 AWG, U/UTP, CM, Euroclass Eca, Blue, 1000ft/305m (NUC6C04BU-FE) is designed for high-performance networking applications. This cable ensures reliable data transmission and is suitable for indoor environments. It is available in regions including Latin America, Asia Pacific, and EMEA.

Specifications

Note:

• Available in Latin America, Asia Pacific, and EMEA

Environment:

• Indoor

Performance Level:

• Category 6

Cable Construction:

• U/UTP

Flammability Rating:

• CM

EuroClass Rating:

• Eca

Resistance Properties:

• Flame-Retardant

Jacket Material:

• LSZH Material

Dimensions:

• Nominal Cable Outside Diameter:
  • 0.222 inches (5.6 mm)

Operating Temperature:

• Maximum:
  • 60°C (140°F)
• Minimum:
  • -20°C (-4°F)

Installation Temperature:

• Maximum:
  • 50°C (122°F)
• Minimum:
  • 0°C (32°F)

Sub Brand:

• NetKey®

Maximum Installation Tension:

• Pounds:
  • 25 lb
• Newtons:
  • 110 N

Bend Radius:

• 0.888 inches (22 mm)

Number of Pairs:

• 4

Conductor Material:

• Copper

Conductor Type:

• Solid

Overall Length:

• Meters:
  • 305 m
• Feet:
  • 1000 ft

Conductor Gauge:

• 24 AWG

Insulation Material:

• High-Density Polyethylene

Insulation Diameter:

• Inches:
  • 0.036 inches
• Millimeters:
  • 0.92 mm

Maximum Voltage:

• 80 V

Standards Met:

• Exceeds ISO 11801 Class E and ANSI/TIA-568.2-D Category 6
• IEC 61156-5, UL 1685, EN 50575: Euroclass Eca
• Meets IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt for PoE applications
• RoHS Compliant

Color:

• Blue

Packaging Type:

• Carton

Product Type:

• Copper Cable

EuroClass Flame Rating:

• Eca

Key Features

• High Performance: Category 6 cable ensures reliable data transmission.
• Flame-Retardant: Designed with flame-retardant properties for added safety.
• Durable Jacket: Made from LSZH material for enhanced durability.
• Compliant with Standards: Meets various international standards for safety and performance.
• Versatile Use: Suitable for indoor environments.

Packaging Details

UPC:

• 61305657097

Standard Package Quantity:

• 1

Standard Package Volume:

• 1.5113 cubic feet

Standard Carton Quantity:

• 24

Standard Carton Volume:

• 36.2713 cubic feet
