Panduit Punchdown Jack Module รุ่น NK6X88MBU

NK6X88MBU

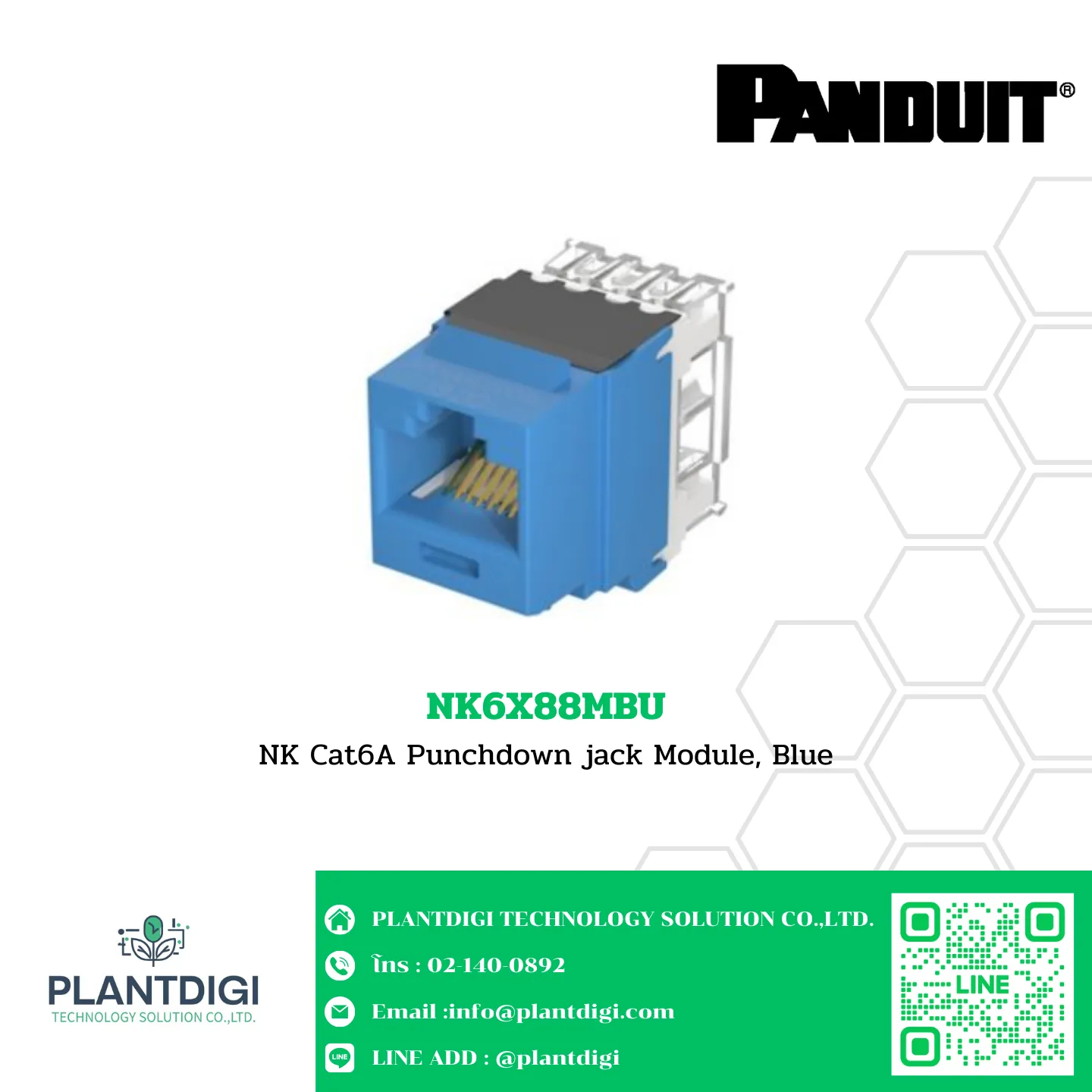

NK Cat6A Punchdown jack Module, Blue

Overview

The NK Cat6A Punchdown Jack Module, Blue (NK6X88MBU) is designed for high-performance networking applications, offering reliable and efficient connectivity. This jack module features a punchdown termination style for easy installation and is suitable for both commercial and residential use.

Specifications

Note:

• Punchdown style termination

Product Type:

• Jack Module

Performance Level:

• Category 6A

Connector Type:

• Jack Module – Standard

Termination Style:

• Punchdown

Body Material:

• Polycarbonate

Contact Material:

• Plated Phosphor Bronze

Module Type:

• Keystone

Wiring Scheme:

• T568A/T568B

Shield Type:

• Unshielded (UTP)

Sub Brand:

• NetKey®

Operating Temperature:

• Maximum: 75°C (167°F)
• Minimum: -10°C (14°F)

Storage Temperature:

• Maximum: 75°C (167°F)
• Minimum: -40°C (-40°F)

Color:

• Blue

Standards Met:

• Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz
• Complies with ANSI/TIA-1096-A
• Meets IEC 60603-7
• Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications
• UL 1863 and CAN/CSA-C22.2 (UL File E129886)
• RoHS Compliant

Dimensions:

• Overall Depth:
  • 1.16 inches (29.5 mm)
• Overall Height:
  • 0.9 inches (22.9 mm)
• Overall Length:
  • 1.16 inches (29.5 mm)
• Overall Width:
  • 0.65 inches (16.5 mm)

Packaging Details

UPC:

• 07498372222

Standard Package Quantity:

• 1

Standard Package Volume:

• 0.0032 cubic feet

Standard Carton Quantity:

• 50

Standard Carton Volume:

• 0.1604 cubic feet

Key Features

• High Performance: Ensures reliable data transmission with Cat6A standards.
• Durable Construction: Made from high-quality polycarbonate and plated phosphor bronze.
• Versatile Use: Suitable for both commercial and residential installations.
• Easy Installation: Punchdown termination style for quick and efficient setup.
• Standards Compliant: Meets various international standards for safety and performance.
• Blue Color: Easy identification and organization in cable management systems.
