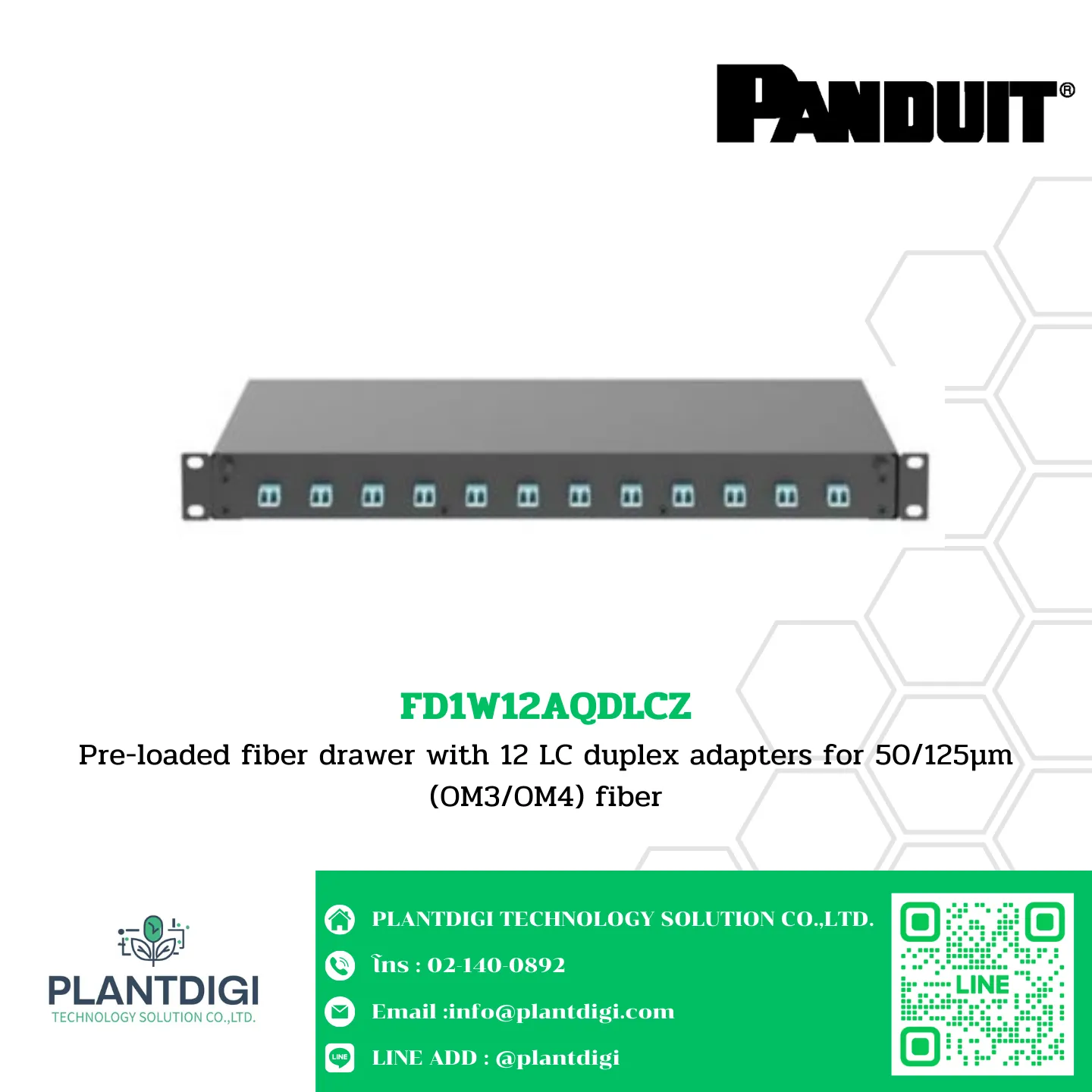

Panduit Fiber Optic Enclosure Accessories รุ่น FD1W12AQDLCZ

FD1W12AQDLCZ
Pre-loaded fiber drawer with 12 LC duplex adapters for 50/125μm (OM3/OM4) fiber

Specifications

• Number of Rack Units: 1
• Overall Width: 17.5 inches (444.5 mm)
• Overall Depth: 12.13 inches (308.2 mm)
• Overall Height: 1.73 inches (43.9 mm)
• Standards Met: EIA-310/IEC 60297, RoHS compliant

Key Features

• Pre-loaded with 12 LC duplex adapters: These adapters are designed for 50/125μm (OM3/OM4) fiber.
• Slide-out drawer: Provides full access to all fiber terminations, making moves, adds, and changes easy.
• Multiple cable entry methods: Supports trunk and interconnect cable entry via PG style glands, blown fiber glands, and metric knockouts with rubber grommets.
• Integral mounting brackets: Suitable for installation in any 19-inch wide EIA-310/IEC 60297 rack rails.
• Dedicated labeling areas: Silk-screened white labeling areas for individual fiber channel identification and overall enclosure labeling.

Packaging Detail

• UPC: 07498378320
• Standard Package Quantity: 1
• Standard Package Volume: 1.1338 cubic feet
