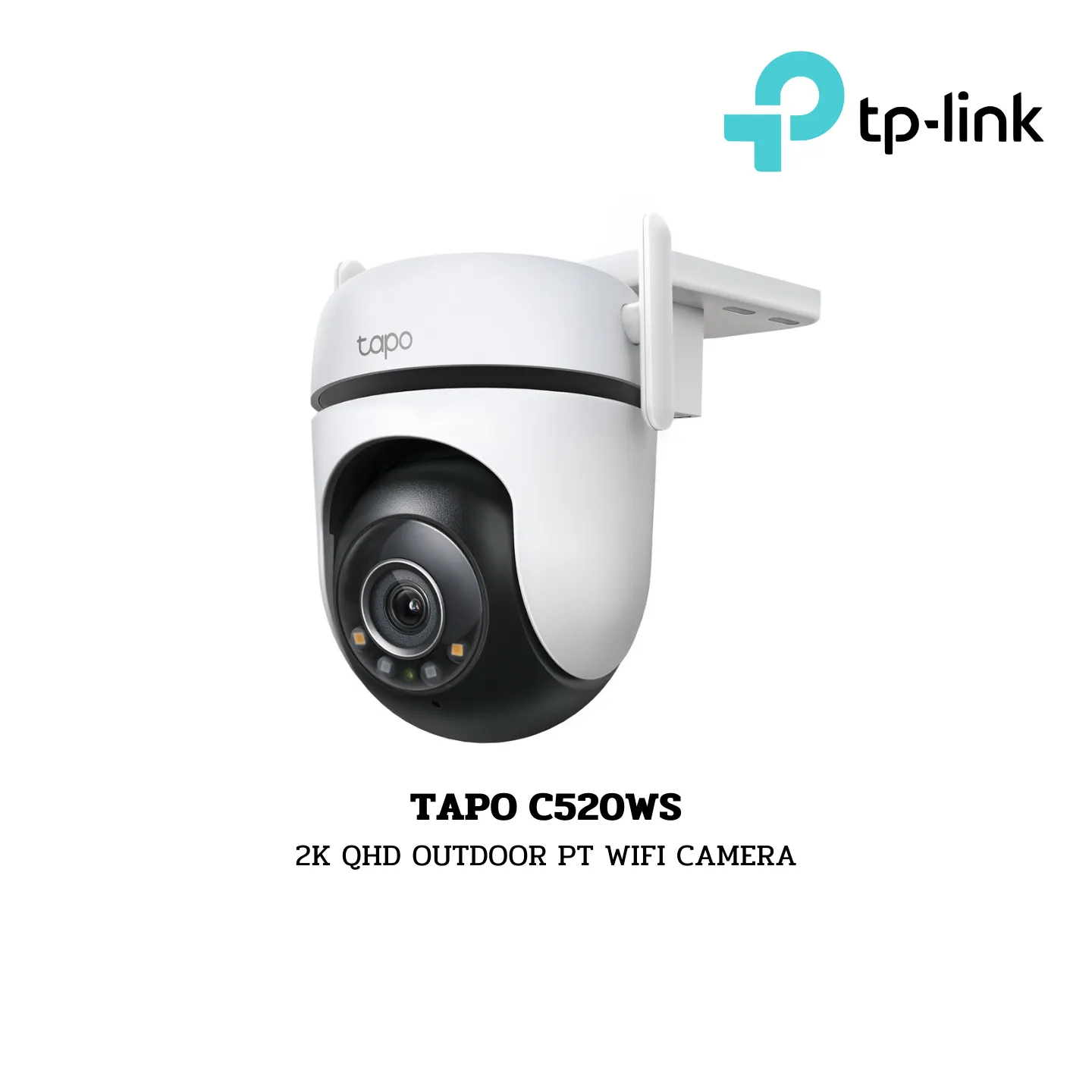

TP-Link TAPO Smart Camera รุ่น TAPO C520WS

TAPO C520WS
2K QHD OUTDOOR PT WIFI CAMERA

Brand:

• TP-Link

Description:

• Outdoor Pan/Tilt Security Wi-Fi Camera

Specifications:

• Resolution:
  • 2K QHD (2560×1440)
• Connectivity:
  • 2.4 GHz Wi-Fi
  • 2T2R
  • 2 × External Antennas
  • 1 × Ethernet Port
  • Horizontal 360º

Features:

• Pan/Tilt: Allows for flexible monitoring by adjusting the camera view horizontally and vertically.
• Starlight Color Night Vision: Provides clear color visibility even in low-light conditions.
• Smart AI Detection and Notifications: Detects motion, people, pets, and cars, and sends alerts to your phone.
• Sound and Light Alarm: Activates alarms to deter potential intruders.
• Remote Control: Control the camera remotely via the Tapo app.
• Two-Way Audio: Communicate with visitors through the built-in microphone and speaker.
• Voice Control: Compatible with Google Assistant and Alexa for hands-free operation.
• Local Storage: Supports microSD card storage (up to 512 GB).
• Tapo App: Easy setup and management through the Tapo app.
• Weatherproof: Rated IP66 for outdoor use.
• Night Vision: Clear visibility in the dark, up to 30 m.
• Frustration-Free Setup (FFS): Simplifies the installation and setup process.

Detailed Specifications:

Camera:

• Image Sensor:
  • 1/3‘’ CMOS
• Lens:
  • F/NO: 1.61±10%
  • Focal Length: 3.18mm±5%
• Motion Range:
  • Pan Mechanical Range: 340° (360° Pan Coverage)
  • Tilt Mechanical Range: 60° (130° Tilt Coverage)
• Night Vision:
  • 850 nm IR LED (up to 98 ft), Starlight Color Night Vision
• Lighting:
  • 2× Built-in Spotlights
• Interface & Button:
  • 1× Ethernet Port
  • 1× RESET Button
  • 1× MicroSD Card Slot (Up to 512 GB)
• Weatherproof Rating:
  • IP66
• View Range:
  • 360° horizontal and 130° vertical
• Resolution:
  • 2K QHD 4MP (2560 × 1440 px)

Video & Audio:

• Maximum Resolution:
  • 2K QHD 4MP (2560 × 1440 px)
• Frame Rate:
  • 15/20/25/30 fps (Default 15 fps)
• Digital Zoom:
  • 12x
• Video Compression:
  • H.264
• Live View:
  • Yes
• Image Enhancement:
  • 3DNR, WDR
• Audio Input & Output:
  • Built-in Microphone and Speaker
• Audio Communication:
  • Two-Way Audio with Noise Cancellation
• Siren Volume:
  • 93 dB (Level measured at 4-inch/10-cm distance)

Storage:

• Local Storage:
  • MicroSD Card Slot on Camera (Up to 512 GB)
• Cloud Storage:
  • Tapo Care Cloud Storage Services (Subscription required)

Video:

• Frame Rate:
  • Up to 25/30fps
• Video Streaming:
  • 2K QHD
• Video Compression:
  • H.264

Detection and Notifications:

• AI Detection:
  • Motion Detection
  • Person Detection
  • Pet Detection
  • Vehicle Detection
  • Line-Crossing Detection
  • Tamper Detection
• Activity Zones:
  • Yes
• Output Notification:
  • System Notification, System Notification with Snapshot (Tapo Care Services)

Audio:

• Audio Communication:
  • Two-Way
• Audio Input & Output:
  • Built-in Microphone and Speaker

Network:

• Network Connectivity:
  • Connect via Wi-Fi or Ethernet
• Wireless Connectivity:
  • IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
• Protocol:
  • TCP/IP, ICMP, DNS, HTTPS, TCP, UDP
• Ethernet Port:
  • 1× 10/100 Mbps RJ45 Port on Camera
• Wireless Security:
  • WPA/WPA2-PSK
• RTSP:
  • Yes
• ONVIF:
  • Yes
• Standards and Protocols:
  • IEEE 802.11b/g/n
• Security:
  • 128 bit AES encryption with SSL/TLS
• Frequency:
  • 2.4GHz

Power:

• Power Source:
  • 9V DC Power Adapter
• Input Voltage:
  • 100-240 V, 50/60 Hz
• Output Voltage:
  • 9 V, 0.85 A (DC Power)

General:

• Smart Integration:
  • Google Assistant, Amazon Alexa
• Weather Resistance:
  • IP66
• System Requirements:
  • Tapo App: iOS 9.0 or higher, Android 4.4 or higher
• Mounting Options:
  • Ceiling-Mounted, Wall-Mounted, Pole-Mounted (Pole-Mounting loops required but not included)
• Operating Temperature:
  • -30℃~60℃
• Storage Temperature:
  • -40℃~60℃
• Operating Humidity:
  • 10%~90% RH, Non-condensing
• Storage Humidity:
  • 0~90% RH, Non-condensing
• Dimensions:
  • 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm)

Package Contents:

• Tapo C520WS Camera
• Power Adapter
• Mounting Anchors
• Mounting Screws
• Bracket Screws
• Mounting Template
• Mounting Bracket
• Waterproof Seal
• Waterproof Cable Attachments
• Quick Start Guide

Certifications:

• CE, FCC, RoHS, RCM

Activity Notifications:

• Input Trigger:
  • Motion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection
• Output Notification:
  • Snapshot (Tapo Care), Clips (Tapo Care)

Environment:

• Operating Temperature:
  • -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F)
• Storage Temperature:
  • -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F)
• Operating Humidity:
  • 10%~90% RH, Non-condensing
• Storage Humidity:
  • 0~90% RH, Non-condensing

Hardware:

• Button:
  • RESET Button
• Indicator LED:
  • System LED
• Adapter Input:
  • 100-240V, 50/60Hz
• Adapter Output:
  • 9V, 0.85A (DC Power)
• Product Dimensions (W x D x H):
  • 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm)

Others:

• Certification:
  • CE, FCC, RoHS, RCM

Package Contents:

• Tapo C520WS Camera
• Power Adapter (3.0m)
• Mounting Anchors
• Mounting Screws
• Bracket Screws
• Mounting Template
• Mounting Bracket
• Waterproof Seal
• Waterproof Cable Attachments
• Quick Start Guide
