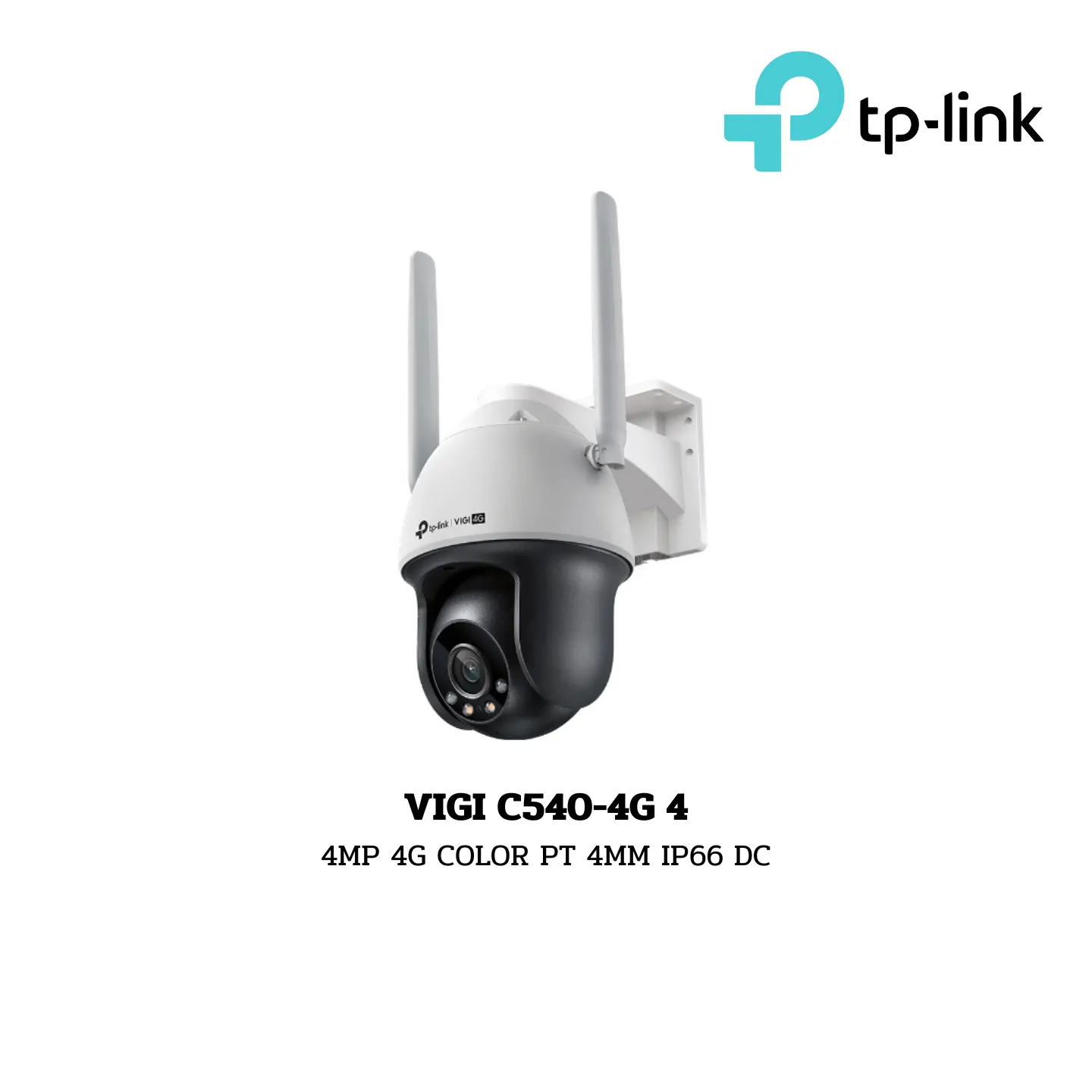

VIGI C540-4G 4
4MP 4G COLOR PT 4MM IP66 DC
Brand:
- TP-Link
Camera:
- Image Sensor:
- 1/3.06” Progressive Scan CMOS
- Shutter Speed:
- 1/3 to 1/10000 s
- Slow Shutter:
- Yes
- Minimum Illumination:
- 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism:
- IR Cut Filter
- Day/Night Switch:
- Unified/ Scheduled/ Auto
Lens:
- Type:
- Fixed Focal Lens
- Focal Length:
- 4 mm
- Aperture:
- F1.6
- FOV:
- Horizontal: 80°, Vertical: 43°, Diagonal: 94°
- Lens Mount:
- M12*0.5
- DORI Distance:
- Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)
PTZ:
- Pan/Tilt Range:
- Pan: 0° to 348°, Tilt: 0° to 120°
- Pan/Tilt Speed:
- Configurable from 8° to 44°/s; Preset Speed: 44°/s
- Manual Control Speed:
- Configurable from 8° to 35°/s
- Presets:
- 300
- Patrol Scan:
- 8 patrols, up to 8 presets for each patrol
- Power-off Memory:
- Auto restore to previous PTZ and lens status after power failure
- Park Action:
- Preset; Patrol Scan
- 3D Positioning:
- Yes
- Angle Adjustment (Manual):
- Pan: 0° to 348°, Tilt: 0° to 120°
Illuminator:
- IR LED:
- Quantity: 2, Range: 30m, Wavelength: 850nm
- White LED:
- Quantity: 2, Range: 30m
- Illuminator On/Off Control:
- Auto/Scheduled/Always on/Always off
Video:
- Max. Resolution:
- 2560 X 1440
Main Stream:
- Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution:
- 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream:
- Frame Rate:
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution:
- 640×480, 352×288, 320×240
- Bit Rate Control:
- CBR, VBR
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
- Video Bit Rate:
- Main Stream: 256 Kbps to 3 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
- Image Settings:
- Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
- Image Enhancement:
- BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range:
- DWDR
- SNR:
- ≥ 52 dB
- Image Parameters Switch:
- Yes
- Privacy Mask:
- Up to 4 Masks
- ROI:
- 1 Region
- OSD Setting:
- Yes
Audio:
- Audio Communication:
- Two-Way Audio
- Audio Input/Output:
- Yes
- Audio Compression:
- Yes
- Audio Sampling Rate:
- 8KHz
- Environment Noise Filtering:
- Yes
- Audio Bit Rate:
- 64 Kbps (G.711 alaw)
Network:
- Protocol:
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, ARP, SMTP, SNMP, IEEE 802.1x
- ONVIF:
- Yes
- API:
- ONVIF
- Simultaneous Live View:
- 2 Main Streams & 2 Sub-Streams
- Client:
- VIGI App, VIGI Security Manager, Web UI
- Web Browser:
- Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
- Cloud:
- Yes
- Security:
- Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
4G:
- Standard:
- LTE-TDD/LTE-FDD/WCDMA
- SIM Type:
- Nano SIM
- Category:
- 4
- Frequency:
- LTE-FDD: B 1/3/7/8/20/28; LTE-TDD: B 38/40; WCDMA: B 1/8
Alarm and Event Management:
- Smart Event:
- Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, People Detection, Vehicle Detection
- Basic Event:
- Motion Detection, Video Tampering Detection, Exception (Illegal Login)
- Alarm Linkage:
- Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
- Output Notification:
- Message Push
Interfaces:
- Network Interface:
- 1 RJ45 10/100M Self-Adaptive Ethernet Port
- Reset Button:
- Yes
- Power:
- DC Power Port
- On-board Storage:
- Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
- Built-in Nano-SIM Card Slot:
- Yes
- Built-in Microphone:
- Yes; Records anything going on within a 15-ft radius of the camera
- Built-in Speaker:
- Yes
General:
- Operating Temperature:
- -30–60 °C
- Storage Temperature:
- -40–60 °C
- Operating Humidity:
- 95% or Less (Non-Condensing)
- Storage Humidity:
- 95% or Less (Non-Condensing)
- Material:
- Plastic
- Net Weight:
- 0.69 Kg
- Gross Weight:
- 1.16 Kg
- Power Supply:
- 12V DC/1A, 5.5mm Coaxial Power Plug
- Antenna:
- 2 Dipole Omni-Directional Antennas, Gain: Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz; Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
- Protection:
- IP66
- Product Dimensions (L x W x H):
- 120 × 182 × 201 mm (excluding antennas)
- Certifications:
- CE, RCM, BSMI, RoHS, NCC
Package Contents:
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
- Power Adapter
