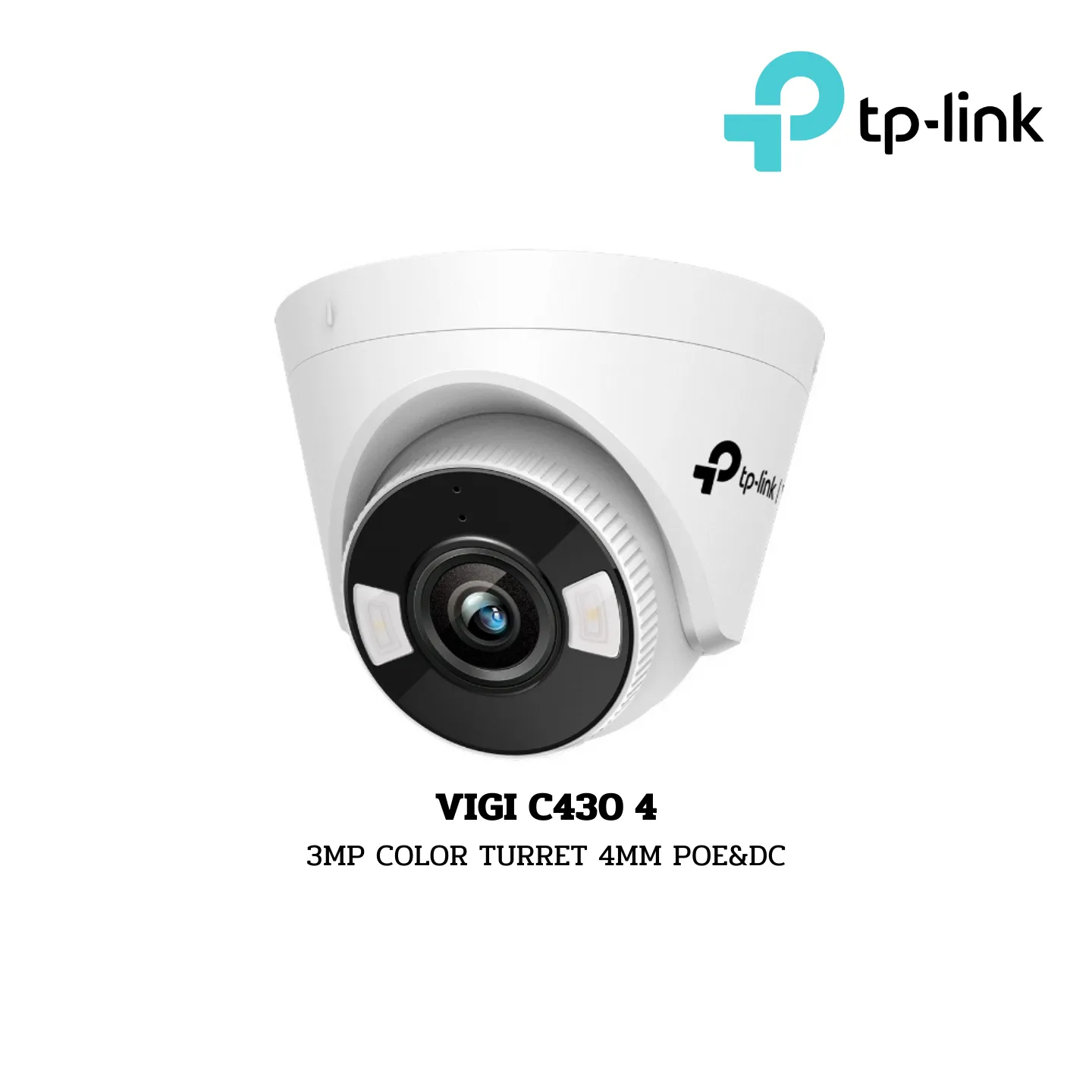

VIGI C430 4
TP-Link 3MP COLOR TURRET 4MM POE&DC
Brand:
- TP-Link
Camera:
- Image Sensor:
- 1/2.8” Progressive Scan CMOS
- Shutter Speed:
- 1/3 to 1/10000 s
- Slow Shutter:
- Yes
- Minimum Illumination:
- 0.005 Lux; 0 Lux with IR/White Light
- Day/Night Mechanism:
- IR Cut Filter
- Day/Night Switch:
- Unified/ Scheduled/ Auto
Lens:
- Type:
- Fixed Focal Lens
- Focal Length:
- 2.8 mm/4 mm
- Aperture:
- F1.6
- FOV:
- 4 mm: Horizontal FOV: 84.4°, Vertical FOV: 44.3°, Diagonal FOV: 100.6°
- Lens Mount:
- M12
- DORI Distance:
- 4 mm: Detect: 70 m (230 ft), Observe: 29 m (96 ft), Recognize: 14 m (46 ft), Identify: 7 m (23 ft)
Manual Angle Adjustment:
- Pan:
- 0° to 360°
- Tilt:
- 0° to 85°
- Rotate:
- 0° to 360°
Illuminator:
- IR LED:
- Quantity: 2, Range: 30m, Wavelength: 850nm
- White LED:
- Quantity: 2, Range: 30m
- Illuminator On/Off Control:
- Auto/Scheduled/Always on/Always off
Video:
- Max. Resolution:
- 2304 × 1296
Main Stream:
- Frame Rate:
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- Resolution:
- 2304×1296, 2048×1280, 1920×1080, 1280×720
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream:
- Frame Rate:
- 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
- Resolution:
- 704×576, 640×480, 352×288, 320×240
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
- Bit Rate Control:
- CBR, VBR
- Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
- Video Bit Rate:
- Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
- Image Settings:
- Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
- Image Enhancement:
- BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range:
- WDR
- SNR:
- ≥ 52 dB
- Image Parameters Switch:
- Yes
- Privacy Mask:
- Up to 4 Masks
- ROI:
- 1 Region
- OSD Setting:
- Yes
Audio:
- Audio Communication:
- N/A
- Audio Input:
- Yes
- Audio Output:
- N/A
- Audio Compression:
- Yes
- Audio Sampling Rate:
- 8KHz
- Environment Noise Filtering:
- Yes
- Audio Bit Rate:
- 64 Kbps (G.711 alaw)
Network:
- Protocol:
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- ONVIF:
- Yes
- API:
- ONVIF
- Simultaneous Live View:
- 3 Main Streams & 3 Sub-Streams
- Client:
- VIGI App, VIGI Security Manager, Web UI
- Web Browser:
- Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
- Cloud:
- Yes
- Security:
- Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm and Event Management:
- Smart Event:
- Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Abnormal Sound Detection, People Detection, Vehicle Detection
- Basic Event:
- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login)
- Alarm Linkage:
- White Light Flashing, Message Push
Interfaces:
- Network Interface:
- 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Alarm:
- N/A
- Reset Button:
- N/A
- Power:
- DC Power Port
- On-board Storage:
- N/A
- Built-in Microphone:
- Yes; Records anything going on within a 15-ft radius of the camera
- Built-in Speaker:
- N/A
General:
- Operating Temperature:
- -30–60 °C
- Storage Temperature:
- -40–60 °C
- Operating Humidity:
- 95% or Less (Non-Condensing)
- Storage Humidity:
- 95% or Less (Non-Condensing)
- Material:
- Plastic
- Net Weight:
- 0.21 Kg
- Gross Weight:
- 0.36 Kg
- Power Supply:
- 12V DC ± 5%, Max. 5.5 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0. Max. 6 W
- Protection:
- N/A
- Product Dimensions:
- 123 × 123 × 83 mm (4.84 × 4.84 × 3.27 in)
Certifications:
- CE, NTRA, VCCI, BSMI
Package Contents:
- VIGI Network Camera
- Quick Start Guide
- Mounting Accessories
