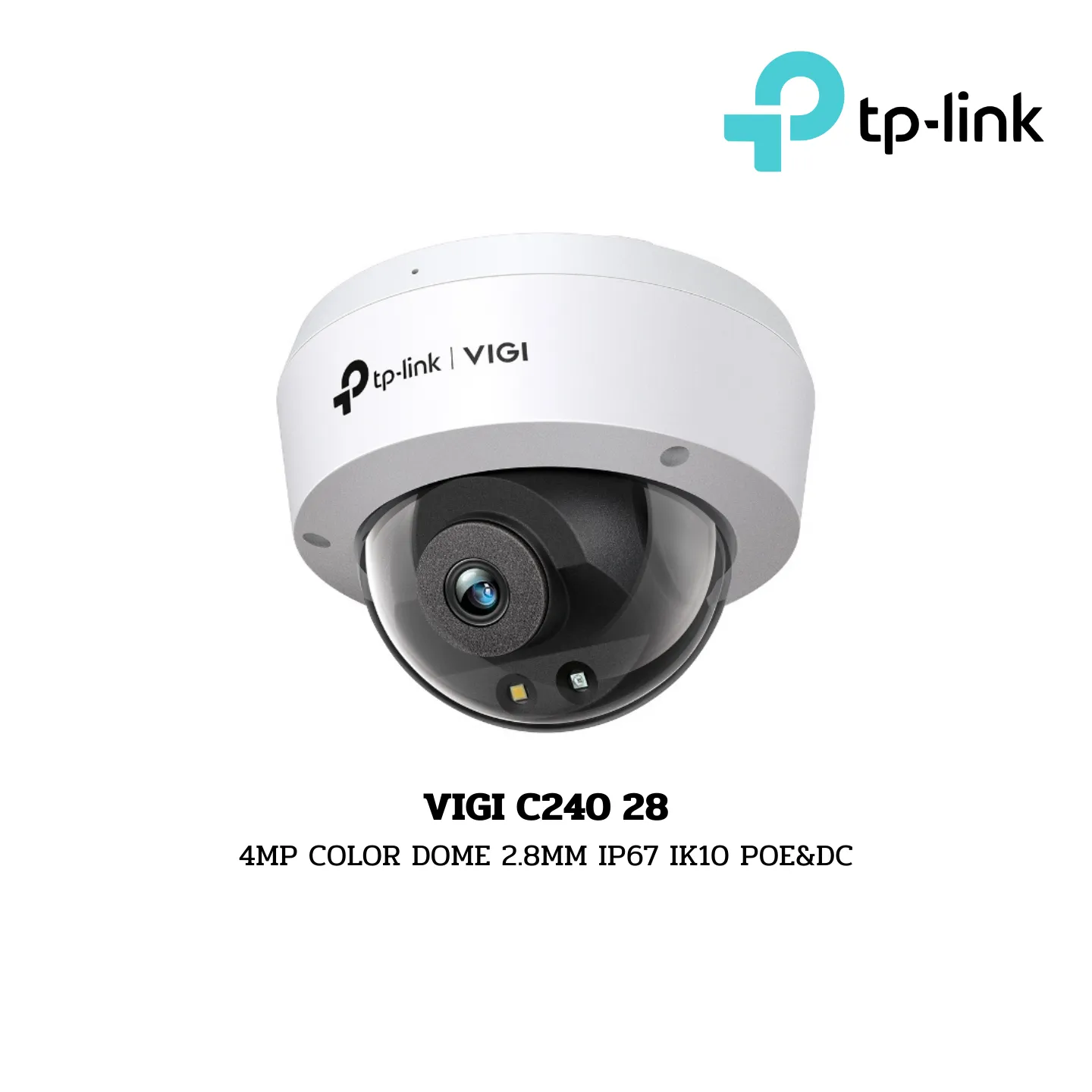

TP-Link Camera Full-Color รุ่น VIGI C240 28

VIGI C240 28
4MP COLOR DOME 2.8MM IP67 IK10 POE&DC

Brand:

• TP-Link

Camera:

• Image Sensor:
  • 1/3” Progressive Scan CMOS
• Shutter Speed:
  • 1/3 to 1/10000 s
• Slow Shutter:
  • Yes
• Minimum Illumination:
  • Color: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism:
  • IR Cut Filter
• Day/Night Switch:
  • Unified/ Scheduled/ Auto
• Digital Noise Reduction:
  • 3D DNR
• WDR:
  • DWDR
• Weatherproof Rating:
  • IP67
• Pan/Tilt Range:
  • Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Viewing Angle:

• 2.8 mm:
  • Horizontal FOV: 95.7°
  • Vertical FOV: 51.7°
  • Diagonal FOV: 113.0°

Lens:

• Type:
  • Fixed Focal Lens
• Focal Length:
  • 2.8 mm
• Aperture:
  • F1.6
• Lens Mount:
  • M12
• DORI Distance:
  • Detect: 64 m (209 ft)
  • Observe: 27 m (87 ft)
  • Recognize: 13 m (42 ft)
  • Identify: 6 m (21 ft)

Manual Angle Adjustment:

• Pan:
  • 0° to 355°
• Tilt:
  • 0° to 75°

Illuminator:

• IR LED:
  • Quantity: 1, Range: 30m, Wavelength: 850nm
• White LED:
  • Quantity: 1, Range: 30m
• Illuminator On/Off Control:
  • Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution:
  • 2560 × 1440

Main Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control:
  • CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 4 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
• Image Settings:
  • Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
• Image Enhancement:
  • BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range:
  • DWDR
• SNR:
  • ≥ 52 dB
• Image Parameters Switch:
  • Yes
• Privacy Mask:
  • Up to 4 Masks
• ROI:
  • 1 Region
• OSD Setting:
  • Yes

Audio:

• Audio Communication:
  • N/A
• Audio Input:
  • Yes
• Audio Output:
  • N/A
• Audio Compression:
  • Yes
• Audio Sampling Rate:
  • 8KHz
• Environment Noise Filtering:
  • Yes
• Audio Bit Rate:
  • 64 Kbps (G.711 alaw)

Network:

• Protocol:
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SNMP, IEEE 802.1x
• ONVIF:
  • Yes
• API:
  • ONVIF
• Simultaneous Live View:
  • 3 Main Streams & 3 Sub-Streams
• Client:
  • VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser:
  • Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud:
  • Yes
• Security:
  • Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event:
  • Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event:
  • Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage:
  • White Light Flashing, Message Push
• Output Notification:
  • Message Push

Interfaces:

• Network Interface:
  • 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm:
  • N/A
• Reset Button:
  • N/A
• Power:
  • DC Power Port
• On-board Storage:
  • Built-in Memory Card Slot, Support MicroSD Card, Up to 512 GB
• Built-in Microphone:
  • Yes
• Built-in Speaker:
  • N/A

General:

• Operating Temperature:
  • -30–60 °C
• Storage Temperature:
  • -40–60 °C
• Operating Humidity:
  • 95% or Less (Non-Condensing)
• Storage Humidity:
  • 95% or Less (Non-Condensing)
• Material:
  • Plastic
• Net Weight:
  • 0.28 Kg
• Gross Weight:
  • 0.46 Kg
• Power Consumption:
  • 12V DC: Max 5.4W; PoE: Class 0
• Power Supply:
  • 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0)
• Vandal Resistant:
  • IK10
• Protection:
  • IP67, IK10
• Product Dimensions:
  • 115× 86× 115 mm

Certifications:

• CE/BSMI/VCCI/ONVIF

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
