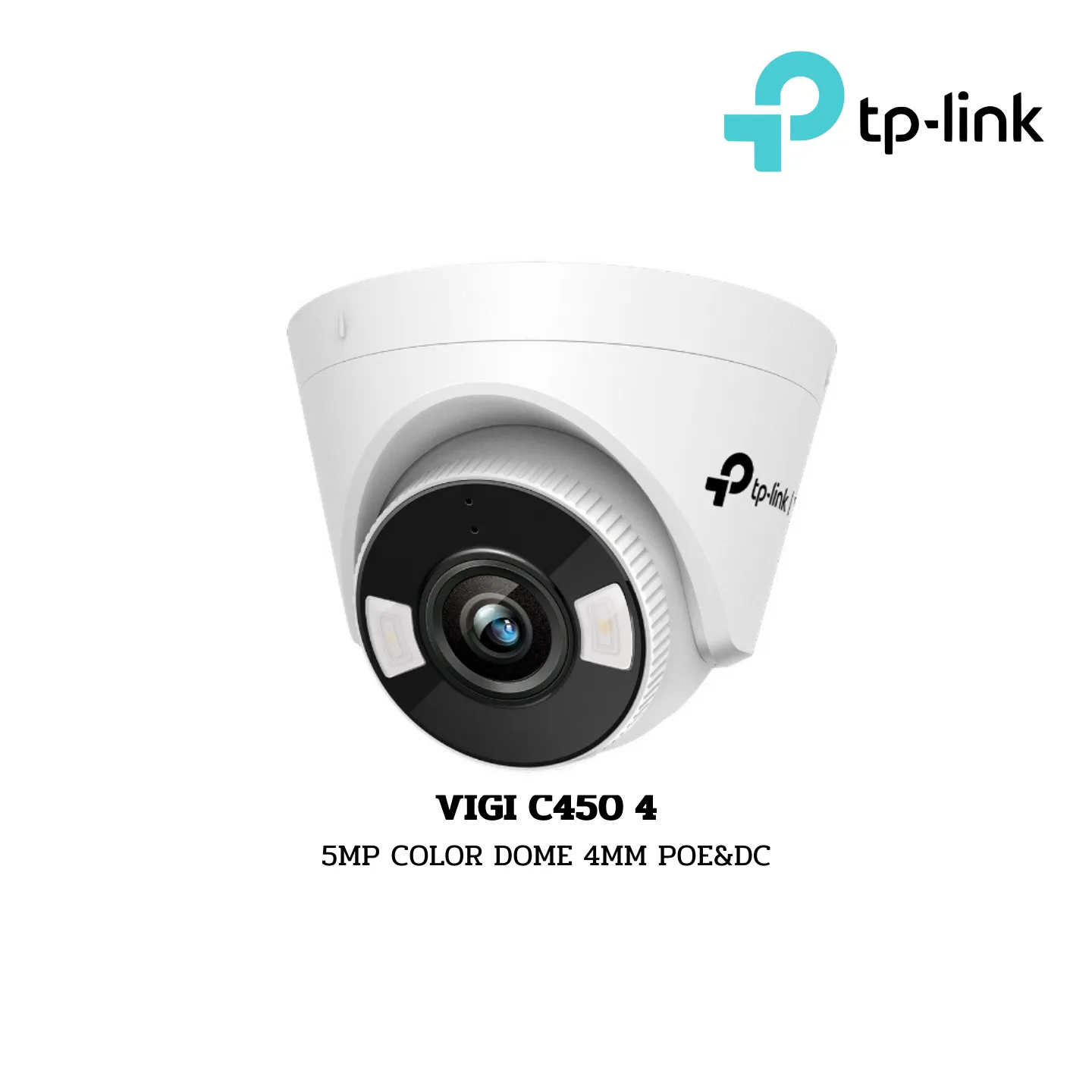

TP-Link Camera Full-Color รุ่น VIGI C450 4

VIGI C450 4
5MP COLOR DOME 4MM POE&DC

Brand:

• TP-Link

Camera:

• Image Sensor:
  • 1/2.7” Progressive Scan CMOS
• Shutter Speed:
  • 1/3 to 1/10000 s
• Slow Shutter:
  • Yes
• Minimum Illumination:
  • 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism:
  • IR Cut Filter
• Day/Night Switch:
  • Unified/ Scheduled/ Auto

Lens:

• Type:
  • Fixed Focal Lens
• Focal Length:
  • 2.8 mm/4 mm
• Aperture:
  • F1.6
• FOV:
  • 4 mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
• Lens Mount:
  • M12*P 0.5
• DORI Distance:
  • 4 mm: Detect: 80 m (262 ft), Observe: 33 m (109 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)

Manual Angle Adjustment:

• Pan:
  • 0° to 360°
• Tilt:
  • 0° to 85°

Illuminator:

• IR LED:
  • Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED:
  • Quantity: 2, Range: 30m
• Illuminator On/Off Control:
  • Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution:
  • 2880 X 1620

Main Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 2880×1620, 2688×1520, 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 704×576, 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control:
  • CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps
• Image Settings:
  • Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement:
  • BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range:
  • 120 dB
• SNR:
  • ≥ 52 dB
• Image Parameters Switch:
  • Yes
• Privacy Mask:
  • Up to 4 Masks
• ROI:
  • 1 Region
• OSD Setting:
  • Yes

Audio:

• Audio Communication:
  • Two-Way Audio
• Audio Input:
  • Yes
• Audio Output:
  • Yes
• Audio Compression:
  • Yes
• Audio Sampling Rate:
  • 8KHz
• Environment Noise Filtering:
  • Yes
• Audio Bit Rate:
  • 64 Kbps (G.711 alaw)

Network:

• Protocol:
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, SNMP, IEEE 802.1x
• ONVIF:
  • Yes
• API:
  • Open Network Video Interface (Profile S)
• Simultaneous Live View:
  • 3 Main Streams & 3 Sub-Streams
• Client:
  • VIGI App, VIGI Security Manager, Web UI
• Web Browser:
  • Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud:
  • Yes
• Security:
  • Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm and Event Management:

• Smart Event:
  • Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
• Basic Event:
  • Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
• Alarm Linkage:
  • Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Deep Learning Function:

• People & Vehicle Analytics:
  • Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
• Multi-Target-Type Detection:
  • Supports Simultaneous Detection and Capture of Human Body and Vehicle
• Face Capture:
  • N/A
• Face Comparison:
  • N/A

Interfaces:

• Network Interface:
  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm:
  • N/A
• Reset Button:
  • Yes
• Power:
  • DC Power Port
• On-board Storage:
  • Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
• Built-in Microphone:
  • Yes; Records anything going on within a 15-ft radius of the camera
• Built-in Speaker:
  • Yes

General:

• Operating Temperature:
  • -30–60 °C
• Storage Temperature:
  • -40–60 °C
• Operating Humidity:
  • 95% or Less (Non-Condensing)
• Storage Humidity:
  • 95% or Less (Non-Condensing)
• Material:
  • Plastic
• Net Weight:
  • 0.24 Kg
• Gross Weight:
  • 0.4 Kg
• Power Supply:
  • 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 10.5 W
• Protection:
  • IP67
• Product Dimensions:
  • 123x 84x 123 mm

Certifications:

• CE, NTRA, VCCI, KC, BSMI, FCC, IC

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories

สอบถามค่าติดตั้ง Service Installation
