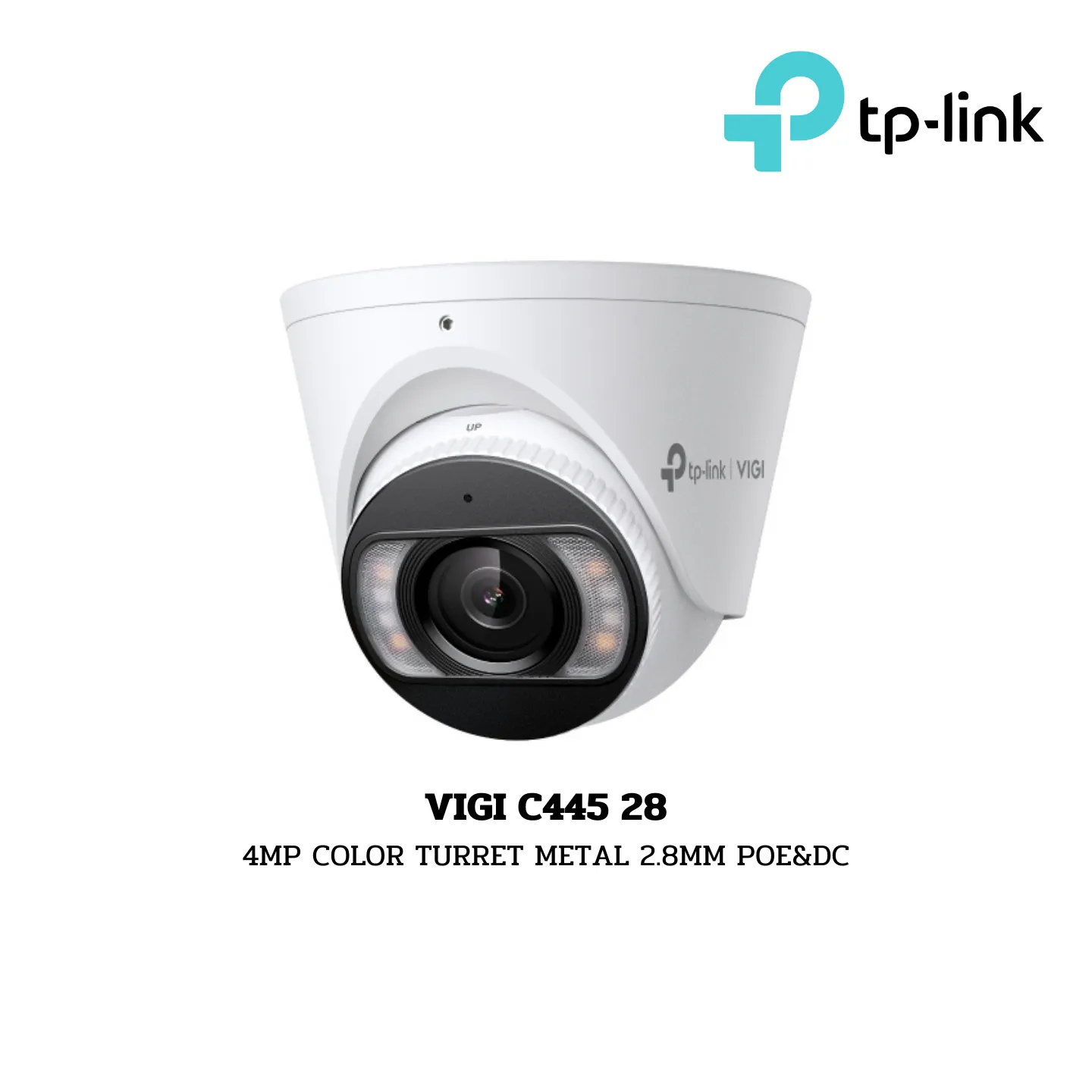

TP-Link Camera รุ่น VIGI C445 28

VIGI C445 28
4MP COLOR TURRET METAL 2.8MM POE&DC

Brand:

• TP-Link

Camera:

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto

Lens:

• Type: Fixed Focal Lens
• Focal Length: 2.8 mm/4 mm
• Aperture: F1.6
• FOV:
  • 2.8 mm: Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°
  • 4 mm: Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
• Lens Mount: M12*P 0.5
• DORI Distance:
  • 2.8 mm: Detect: 64 m (210 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 6 m (20 ft)
  • 4 mm: Detect: 80 m (262 ft), Observe: 33 m (108 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)

Manual Angle Adjustment:

• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotation: 0° to 360°

Illuminator:

• IR LED: Quantity: 4, Range: 30m, Wavelength: 850nm
• White LED: Quantity: 4, Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2688 x 1520

Main Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 704×576, 640×480, 352×288, 320×240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control: CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 6 Mbps; Sub-Stream: 64 Kbps to 512 Kbps

Image Settings:

• Options: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: 120 dB
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input: Yes
• Audio Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps (G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SNMP, IEEE 802.1x
• ONVIF: Yes
• API: Open Network Video Interface (Profile S)
• Simultaneous Live View:
  • 3 Main Streams & 3 Sub-Streams
• Client: VIGI App, VIGI Security Manager, Web UI, VIGI VMS
• Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Alarm & Event Management:

• Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Smart Frame, People Detection, Vehicle Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login), Scene Change Detection
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing

Deep Learning Function:

• People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Interfaces:

• Network: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm: N/A
• Reset Button: Yes
• Power: DC Power Port
• Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
• Microphone: Yes; Records anything within a 15-ft radius
• Speaker: Yes

General:

• Operating Temp: -30–60 °C
• Storage Temp: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Material: Metal
• Net Weight: 0.48 Kg
• Power Supply: 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12 W
• Protection: IP67
• Dimensions: 111 × 111 × 83.7 mm

Certifications:

• CE, NTRA, VCCI, KC, BSMI, FCC, IC

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
