TP-Link WI-FI Camera รุ่น VIGI C540-W 4

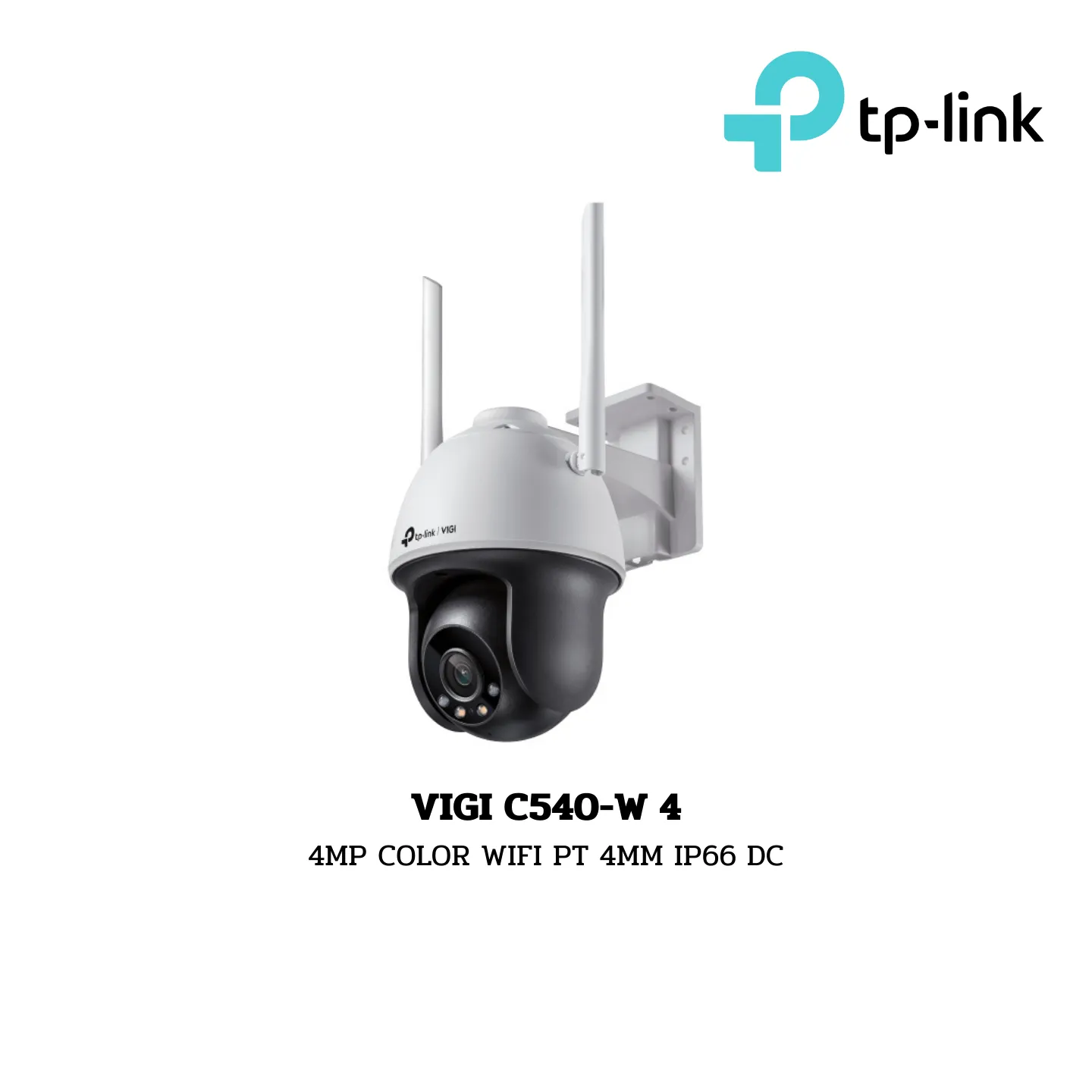

VIGI C540-W 4
TP-Link 4MP COLOR WIFI PT 4MM IP66 DC

Camera:

• Image Sensor: 1/3” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Aperture: F1.6
• Lens:
  • Fixed focal lens (4 mm)
• Lens Mount: M12
• Minimum Illumination: 0 lux with IR/white light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified/ Scheduled/ Auto
• Digital Noise Reduction: 3D DNR
• Wide Dynamic Range: DWDR
• Weatherproof Rating: IP66
• IR Working Distance: 30m
• Illumination Distance: 30 m
• Viewing Angle:
  • Horizontal FOV: 79°
  • Vertical FOV: 43°
  • Diagonal FOV: 93°
• Digital Zoom: Yes

Lens:

• Type: Fixed Focal Lens
• Focal Length: 4 mm
• Aperture: F1.6
• FOV:
  • Horizontal FOV: 79°
  • Vertical FOV: 43°
  • Diagonal FOV: 93°
• Lens Mount: M12
• DORI Distance:
  • Detect: 80 m (262 ft)
  • Observe: 33 m (109 ft)
  • Recognize: 16 m (52 ft)
  • Identify: 8 m (26 ft)

PTZ:

• Pan/Tilt Range:
  • Pan: 0° to 350°
  • Tilt: 0° to 120°
• Pan/Tilt Speed:
  • Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s
  • Tilt Speed: Configurable from 1° to 40°/s; Preset Speed 40°/s
• Manual Control Speed:
  • Configurable from 8° to 35°/s
• Presets: 300
• Patrol Scan:
  • 8 patrols, up to 8 presets for each patrol
• Power-off Memory: Auto restore to previous PTZ and lens status after power failure
• Park Action: Preset; Patrol Scan
• 3D Positioning: Yes

Illuminator:

• IR LED:
  • Quantity: 2, Range: 30m, Wavelength: 850nm
• White LED:
  • Quantity: 2, Range: 30m
• Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video:

• Max. Resolution: 2560 X 1440

Main Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 2560×1440, 2304×1296, 2048×1280, 1920×1080

Sub-Stream:

• Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
  • 640×480, 352×288, 320×240
• Bit Rate Control: CBR, VBR
• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
• Video Bit Rate:
  • Main Stream: 256 Kbps to 4 Mbps
  • Sub-Stream: 64 Kbps to 512 Kbps

Image Settings:

• Options: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Enhancement: BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range: DWDR
• SNR: ≥ 52 dB
• Image Parameters Switch: Yes
• Privacy Mask: Up to 4 Masks
• ROI: 1 Region
• OSD Setting: Yes

Audio:

• Audio Communication: Two-Way Audio
• Audio Input/Output: Yes
• Audio Compression: Yes
• Audio Sampling Rate: 8KHz
• Environment Noise Filtering: Yes
• Audio Bit Rate: 64 Kbps (G.711 alaw)

Network:

• Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, SNMP, IEEE 802.1x
• Wireless Rate:
  • 11 Mbps (802.11b)
  • 54 Mbps (802.11g)
  • 150 Mbps (802.11n)
• Wireless Security: WPA/WPA2-PSK
• ONVIF: Yes
• API: ONVIF
• Simultaneous Live View:
  • 3 Main Streams & 3 Sub-Streams
• Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
• Cloud: Yes
• Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Wireless:

• Standards: IEEE 802.11b/g/n
• WiFi Channels: UN: 1-13, US: 1-11
• Frequency: 2.4 GHz
• Wireless Transmit Power: High
• Radio Bandwidth: 20M, 40M
• Wireless Rate:
  • 11 Mbps (802.11b)
  • 54 Mbps (802.11g)
  • 150 Mbps (802.11n)
• Wireless Security: WPA/WPA2-PSK
• Wireless Mode: AP, AP Client

Alarm & Event Management:

• Smart Event: Area Intrusion Detection, Line-Crossing Detection, People Detection
• Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
• Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Output Notification: Message Push

Interfaces:

• Network: 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Audio Input: Built-in Microphone
• Audio Output: Built-in Speaker
• Reset Button: Yes
• Power: DC Power Port
• Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
• Microphone: Yes; Records anything within a 15-ft radius
• Speaker: Yes

General:

• Operating Temp: -30–60 °C
• Storage Temp: -40–60 °C
• Operating Humidity: 95% or Less (Non-Condensing)
• Storage Humidity: 95% or Less (Non-Condensing)
• Dimensions: 120 × 172 × 198 mm
• Material: Plastic
• Net Weight: 0.62 Kg
• Gross Weight: 1.21 Kg
• Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug

Antenna:

• Quantity: 2
• Type: 2.4GHz Welded Dipole Omni-Directional Antenna
• Gain: 2.0dBi

Certifications:

• CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC

Package Contents:

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Power Adapter
• Mounting Accessories
