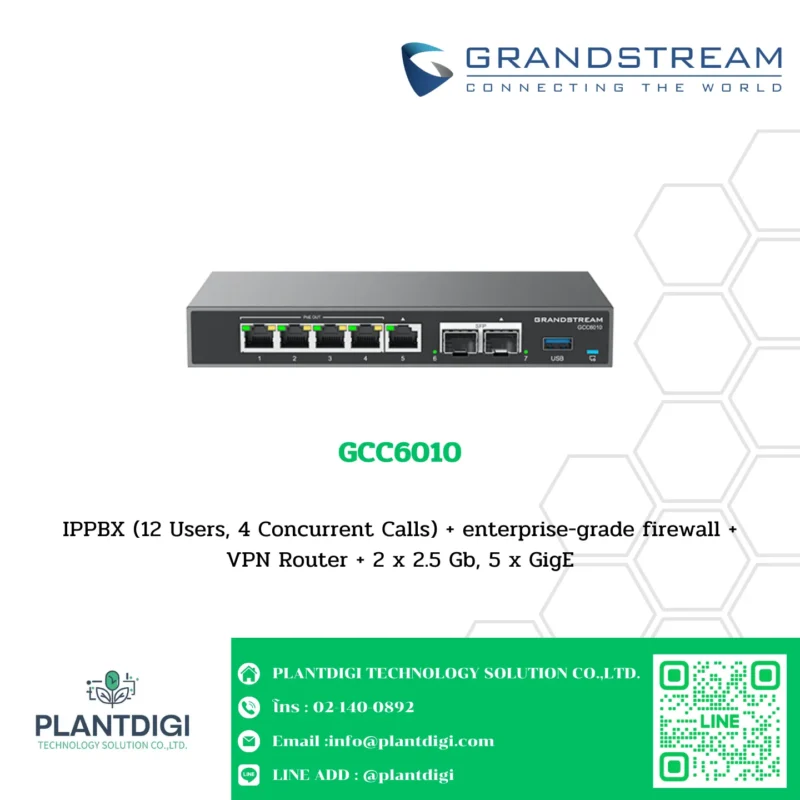

GrandStream IP PBX รุ่น GCC6010

IPPBX (12 Users, 4 Concurrent Calls) + enterprise-grade firewall + VPN Router + 2 x 2.5 Gb, 5 x GigE

The GCC6000 Series provides an extraordinary all-in-one solution that merges unified communications and networking solutions into one platform.

The GCC6010 Series provides an extraordinary all-in-one solution that redefines the communications experience by merging your unified communications and networking solutions into one platform. These state-of-the-art devices combine the functionality of 4 products to provide an all-in-one solution that includes a VPN router, next-generation firewall, IP PBX, and network switch or Wi-Fi access point. With the GCC Series, you can create and manage wired, wireless, and VPN networks, provide enterprise-grade network security, and utilize a market-leading communication and collaboration platform. These flexible devices provide unified management and centralized control of all Grandstream endpoint solutions, including Wi-Fi APs, network switches, IP Phones, and more. The GCC Series allows full UC, networking, and security solutions to be configured in minutes and managed through the cloud with the Grandstream Device Management System (GDMS), and can also be managed through our mobile app, local Web UI, and SSH console management. Ideal for small-to-medium sized businesses, the GCC6010 Series provides an all-in-one platform that combines all business data, security, communication, and collaboration needs into one device – making it easier and more affordable than ever to build state-of-the-art communication solutions.

Network Ports

• Configurable Ports: All ports are WAN/LAN configurable, max 3x WAN
• Gigabit Ports: 2 x 2.5 Gigabit SFP port and 10 x Gigabit Ethernet ports
• Fixed WAN: 3x Fixed WAN

Auxiliary Ports

• 1x Micro-SD
• 1x USB 3.0
• 1x Reset

Memory

• 2GB RAM
• 32GB eMMC Flash

External Storage: Optional, M.2 SSD

Router: 2.5Gbps

IPsec VPN Throughput: 1Gbps

NAT Sessions: 160K

IDS/IPS: 900Mbps

PBX

• 12 users and 4 concurrent calls by default
• Upgrades available for purchase (See more for PBX capacity upgrade options)

PoE Output

• 4 x PoE out ports, IEEE802.3af/at
• Maximum PoE Wattage: 36W

Mounting: Desktop, Wall, and Rack-mountable

Material: Metal

LEDs: 12x single LEDs, 4x PoE LEDs, and 1x RGB LED for device tracking and status indication

Connection Type

• DHCP
• Static IP
• PPPoE

Network Protocols

• IPv4, IPv6
• IEEE802.1q
• IEEE 802.1p
• IEEE802.1x
• IEEE802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE802.3ab

QoS

• VLAN, TOS
• Support multiple traffic classes, filter by port, IP address, DSCP, and policing
• App QoS: Application/protocol monitoring and traffic statistics
• VoIP Prioritization

Firewall

• DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT
• DPI, Anti-Virus, IPS/IDS, SSL Proxy
• Content Control: DNS filtering, web URL/class/keywords filtering, application identification and control

VPN

• IPsec VPN Client-to-Site / Site-to-Site
• IPSec Encryption: 3DES, AES
• IPSec Authentication: MD5, SHA-1, SHA2-256
• IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
• IPSec Protocols: ESP
• IPSec NAT Traversal
• PPTP VPN Server / Client
• PPTP Encryption: MPPE 40-bit, 128-bit
• PPTP/L2TP Authentication: MS-CHAPv1/2
• L2TP Client-to-Site
• OpenVPN® Server / Client
• OpenVPN® Encryption: AES, DES
• OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
• OpenVPN® Certificate: RSA
• WireGuard®

Network Management

• Grandstream Device Management System (GDMS)
• Local Web GUI, SSH, and SNMP (v1/v2c/v3)

Max AP/Clients

• Up to 150 GWN APs
• Up to 500 Clients

Power and Green Energy Efficiency

• Universal power adaptor included:
  • Input: 100-240VAC 50-60Hz
  • Output: 48VDC 1A (48W)
  • 4 x PoE out ports, IEEE802.3af/at
  • Maximum PoE Wattage: 36W

Environmental

• Operation: 0°C to 45°C
• Storage: -30°C to 60°C
• Humidity: 5% to 95% Non-condensing

Physical

• Unit Dimension: 280 x 180 x 44 mm
• Unit Weight: 1200g
• Entire Package Dimension: 366 x 211 x 53 mm
• Entire Package Weight: 1600g

Package Content

• GCC6010/GCC6011
• Universal Power Supply
• Rack mount kit (GCC6011 only)
• Quick Installation Guide

Compliance

• FCC, CE, RCM, IC
