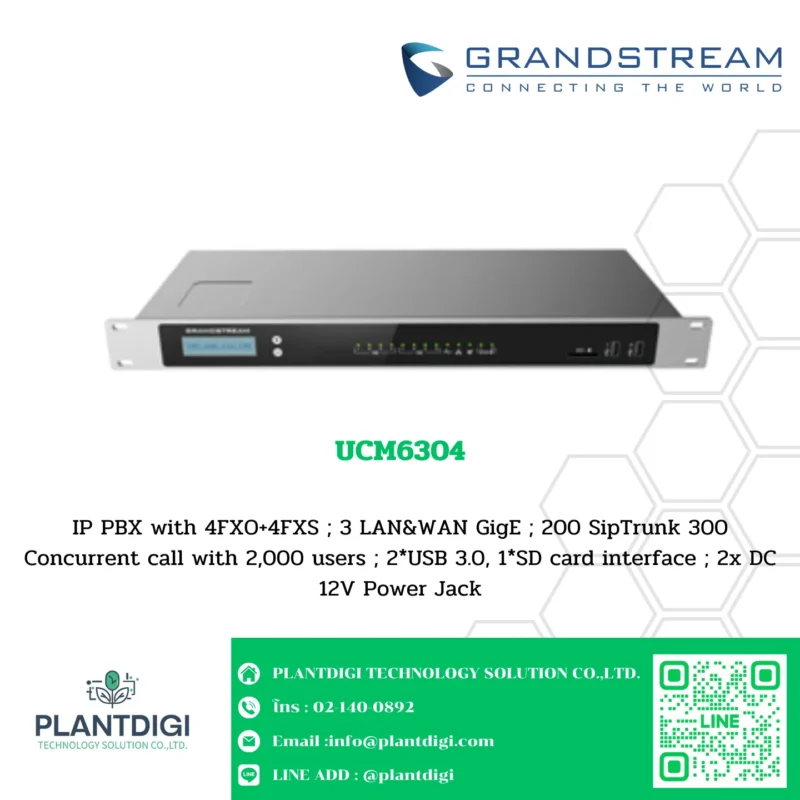

GrandStream IP PBX รุ่น UCM6304

Name: GrandStream IP PBX รุ่น UCM6304 - Plantdigi
SKU: UCM6304
Price: 48500.00 THB
Availability: BackOrder

฿48,500.00

UCM6304

IP PBX with 4FXO+4FXS ; 3 LAN&WAN GigE ; 200 SipTrunk 300 Concurrent call with 2,000 users ; 2*USB 3.0, 1*SD card interface ; 2x DC 12V Power Jack

ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com

📋 ขอใบเสนอราคา สอบถามเพิ่มเติม

สั่งจองสินค้าได้

รหัสสินค้า: UCM6304 หมวดหมู่: IP PBX GrandStream, UCM6300 Series, ระบบโทรศัพท์ VoIP ป้ายกำกับ: Grandstream, IPPBX, UCM6304

คำอธิบาย

UCM6304

UCM6304 IP PBX with 4FXO+4FXS ; 3 LAN&WAN GigE ; 200 SipTrunk 300 Concurrent call with 2,000 users ; 2*USB 3.0, 1*SD card interface ; 2x DC 12V Power Jack

Grandstream UCM6304 This series of IP PBXs provide a platform that unifies all business communication on one centralized network, including voice, video calling, video conferencing, video surveillance, web meetings, data, analytics, mobility, facility access, intercoms and more.

Analog Telephone FXS Ports

4 RJ11 Ports
All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXS gateway

PSTN Line FXO Ports

4 RJ11 Ports
All ports have lifeline capability in case of power outage; number of ports can be expanded by peering with an FXO gateway

Network Interfaces

Three self-adaptive Gigabit ports (switched, routed or dual mode) with PoE+
NAT Router: Yes (supports router mode and switch mode)

Peripheral Ports

2 USB 3.0
1 SD card interface

LED Indicators: Power 1/2, FXS, FXO, LAN, WAN, Heartbeat

LCD Display: 128×32 dot matrix graphic LCD with DOWN and OK buttons

Reset Switch: Yes, long press for factory reset and short press for reboot

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit
128ms-tail-length carrier grade Line Echo Cancellation
Dynamic Jitter Buffer
Modem detection & auto-switch to G.711
NetEQ, FEC 2.0, jitter resilience up to 50% audio packet loss

Voice and Fax Codecs

Opus, G.711 A-law/U-law, G.722, G722.1, G722.1C, G.723.1 5.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM
T.38

Video Codecs: H.264, H.263, H263+, VP8

QoS: Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

API: Full API available for third-party platform and application integration

Telephony Operating System: Based on Asterisk version 16

DTMF Methods: In-band audio, RFC2833, and SIP INFO

Provisioning Protocol & Plug-and-Play

Mass provisioning using AES encrypted XML configuration file
Auto-discovery & auto-provisioning of Grandstream IP endpoints via ZeroConfig (DHCP Option 66 multicast SIP SUBSCRIBE mDNS), eventlist between local and remote trunk

Network Protocols: SIP, TCP/UDP/IP, RTP/RTCP, IAX, ICMP, ARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, STUN, SRTP, TLS, LDAP, HDLC, HDLC-ETH, PPP, Frame Relay (pending), IPv6, OpenVPN®

Disconnect Methods: Busy/Congestion/Howl Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect

Media Encryption: SRTP, TLS, HTTPS, SSH, 802.1X, ZRTP

Universal Power Supply

2x DC 12V Power Jack
Input: 100~240VAC, 50/60Hz
Output: DC 12V, 2A

Dimensions: 485mm (L) x 187.2mm (W) x 46.2mm (H)

Weight

Unit Weight: 2490g
Package Weight: 3260g

Temperature & Humidity

Operating: 32 – 113ºF / 0 ~ 45ºC, Humidity 10 – 90% (non-condensing)
Storage: 14 – 140ºF / -10 ~ 60ºC, Humidity 10 – 90% (non-condensing)

Mounting: Rack mount & Desktop

Multi-Language Support

Web UI: English, Simplified Chinese, Traditional Chinese, Spanish, French, Portuguese, German, Russian, Italian, Polish, Czech, Turkish
Customizable IVR/voice prompts: English, Chinese, British English, German, Spanish, Greek, French, Italian, Dutch, Polish, Portuguese, Russian, Swedish, Turkish, Hebrew, Arabic, Nederlands
Customizable language pack to support any other languages

Caller ID: Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT

Polarity Reversal/Wink: Yes, with enable/disable option upon call establishment and termination

Call Center Features

Configurable Call Queues: Multiple queues with automatic call distribution (ACD) based on agent skills, availability, and workload, with in-queue announcements.
Customizable Auto Attendant: Supports up to 5 layers of IVR (Interactive Voice Response) in multiple languages.

Maximum Call Capacity

Users: Up to 2000
Concurrent Calls (G.711): 200
Max Concurrent SRTP Calls (G.711): Up to 300

Conference Bridges

Video Conference Rooms: Up to 25 simultaneous rooms
Participants: Up to 300 simultaneous participants across all rooms
Video Feeds: Up to 9 video feeds in all conference rooms

Wave App

Platforms: Available for desktop (Windows 10+, Mac OS 10+), web (Firefox and Chrome Browsers), and mobile (Android & iOS).
Features: Allows users to join UCM-hosted meetings/conferences, communicate with other users/solutions, and make/receive calls using SIP accounts registered to a UCM6300 series IP PBX.

Call Features: Call park, call forward, call transfer, call waiting, caller ID, call record, call history, ringtone, IVR, music on hold, call routes, DID, DOD, DND, DISA, ring group, ring simultaneously, time schedule, PIN groups, call queue, pickup group, paging/intercom, voicemail, call wakeup, SCA, BLF, voicemail to email, fax to email, speed dial, call back, dial by name, emergency call, call follow me, blacklist/whitelist, voice conference, video conference, eventlist, feature codes, busy camp-on/ call completion, voice control, post-meeting reports, virtual fax sending/receiving, email to fax.

Firmware Upgrade: Supported by Grandstream Device Management System (GDMS), providing a zero-touch cloud provisioning and management system. GDMS offers a centralized interface to provision, manage, monitor, and troubleshoot Grandstream products.

Internet Protocol Standards: RFC 3261, RFC 3262, RFC 3263, RFC 3264, RFC 3515, RFC 3311, RFC 4028, RFC 2976, RFC 3842, RFC 3892, RFC 3428, RFC 4733, RFC 4566, RFC 2617, RFC 3856, RFC 3711, RFC 4582, RFC 4583, RFC 5245, RFC 5389, RFC 5766, RFC 6347, RFC 6455, RFC 8860, RFC 4734, RFC 3665, RFC 3323, RFC 3550, RFC 6189.

Compliance

FCC: Part 15 (CFR 47) Class B, Part 68
CE: EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 62368-1, ETSI ES 203 021, ITU-T K.21
IC: ICES-003, CS-03 Part I Issue 9
RCM: AS/NZS CISPR 32, AS/NZS 62368.1, AS/CA S002, AS/CA S003.1/.2

สอบถามค่าติดตั้ง Service Installation
