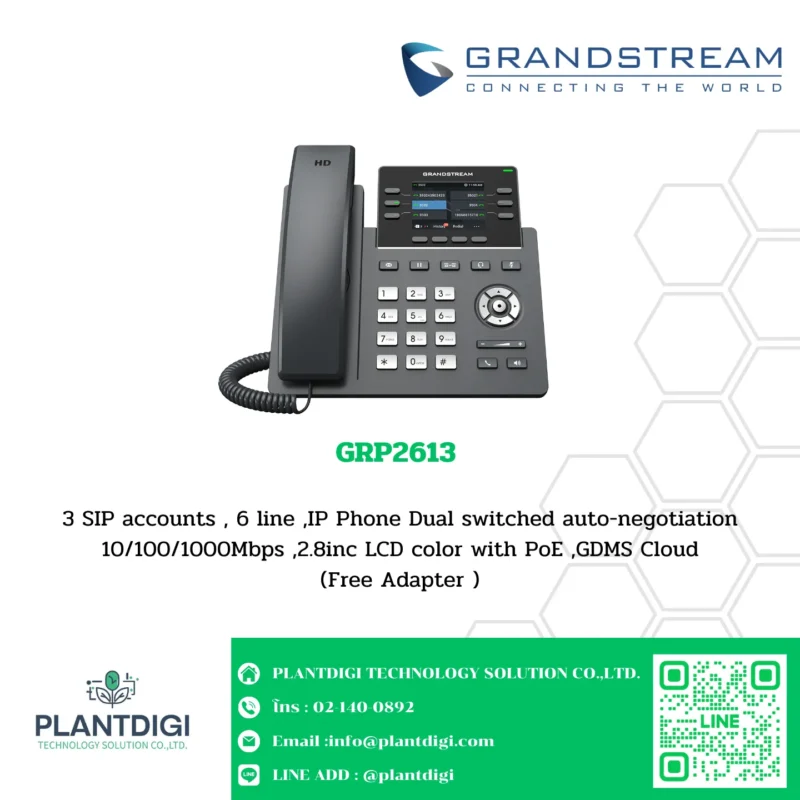

GrandStream IP Phone รุ่น GRP2613

GRP2613

3 SIP accounts , 6 line ,IP Phone Dual switched auto-negotiation 10/100/1000Mbps ,2.8inc LCD color with PoE ,GDMS Cloud
(Free Adapter )

The GRP2613 features 24 virtual multi-purpose keys (VPKs), integrated Wi-Fi 6 (GRP2613W), dual Gigabit ports, a color LCD with swappable face plates for easy logo customization, and more. It is supported by Grandstream’s Device Management System (GDMS).



Protocols/Standards

SIP: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6

Network Interfaces: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE

Wi-Fi: GRP2613W: Integrated dual-band (2.4GHz and 5GHz) Wi-Fi 6 (802.11a/b/g/n/ac/ax)

Bluetooth: GRP2613W: Integrated

Graphic Display: 2.8 inch (320×240) TFT color LCD

Feature Keys

• 6 line keys with up to 4 (GRP2613) or 6 (GRP2613W) SIP accounts
• 4 XML programmable context-sensitive soft keys
• 5 navigation/menu keys
• 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-

Auxiliary Port: RJ9 headset jack (allowing EHS with Plantronics headsets)

Voice Codecs and Capabilities

• Support for G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS
• In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
• VAD, CNG, AEC, PLC, AJB, AGC

Telephony Features

• Hold, transfer, forward, 5-way conference, call park, call pickup
• Shared-call appearance (SCA)/bridged-line appearance (BLA)
• Downloadable phonebook (XML, LDAP, up to 1000 items)
• Call waiting, call log (up to 2000 records)
• XML customization of the screen
• Off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot-desking
• Personalized music ringtones and music on hold, server redundancy, and fail-over

HD Audio: Yes, HD handset and speakerphone with support for wideband audio

Base Stand: Yes, 2 angle positions available, Wall Mountable (Wall Mount *sold separately)

QoS: Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords, MD5 and MD5-sess based authentication
• 256-bit AES encrypted configuration file
• SRTP, TLS, 802.1x media access control, secure boot

Multi-language Support: English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more

Upgrade/Provisioning

• Firmware upgrade via FTP/TFTP/TFTPS/HTTP/HTTPS
• Mass provisioning using GDMS/TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included:
  • Input: 100-240V
  • Output: +5V, 0.6A
• Integrated Power-over-Ethernet (802.3af)
• IEEE 802.3az Energy-Efficient Ethernet
• Max power consumption: 3W (power adapter) or 3.8W (PoE)

Temperature and Humidity

• Operation: 0°C to 40°C
• Storage: -10°C to 60°C
• Humidity: 10% to 90% Non-condensing

Package Content: GRP2613 phone, handset with cord, phone stand, 5V power adapter, network cable, Quick Installation Guide, GPL license

Physical Dimensions

• Dimension: 203mm x 193mm x 52.1mm
• Unit Weight: 554g
• Package Weight: 936g



Compliance

GRP2613:

• FCC: Part 15 Class B; FCC Part 68 HAC
• CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
• RCM: AS/NZS CISPR 32; AS/NZS 61000.3.2; AS/NZS 61000.3.3; AS/NZS 62368.1; AS/CA S004
• IC: ICES-003; CS-03

GRP2613W:

• CE: ETSI EN 300 328; ETSI EN 301 893; EN 300 440; ETSI EN 301 489-1/-3/-17; EN IEC 62368-1; EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62311
• FCC: Part 15 Subpart B, Class B; Part 15 Subpart E, 15.407; Part 15 Subpart C, 15.247; FCC Part 68
• IC: RSS-247 Issue 2; RSS-Gen Issue 5; ICES-003 Issue 7; ISED CS-03 Part V
• RCM: AS/NZS CISPR 32; AS/NZS 4268; AS/NZS 2772.2; AS/NZS 62368.1; AS/CA S004
