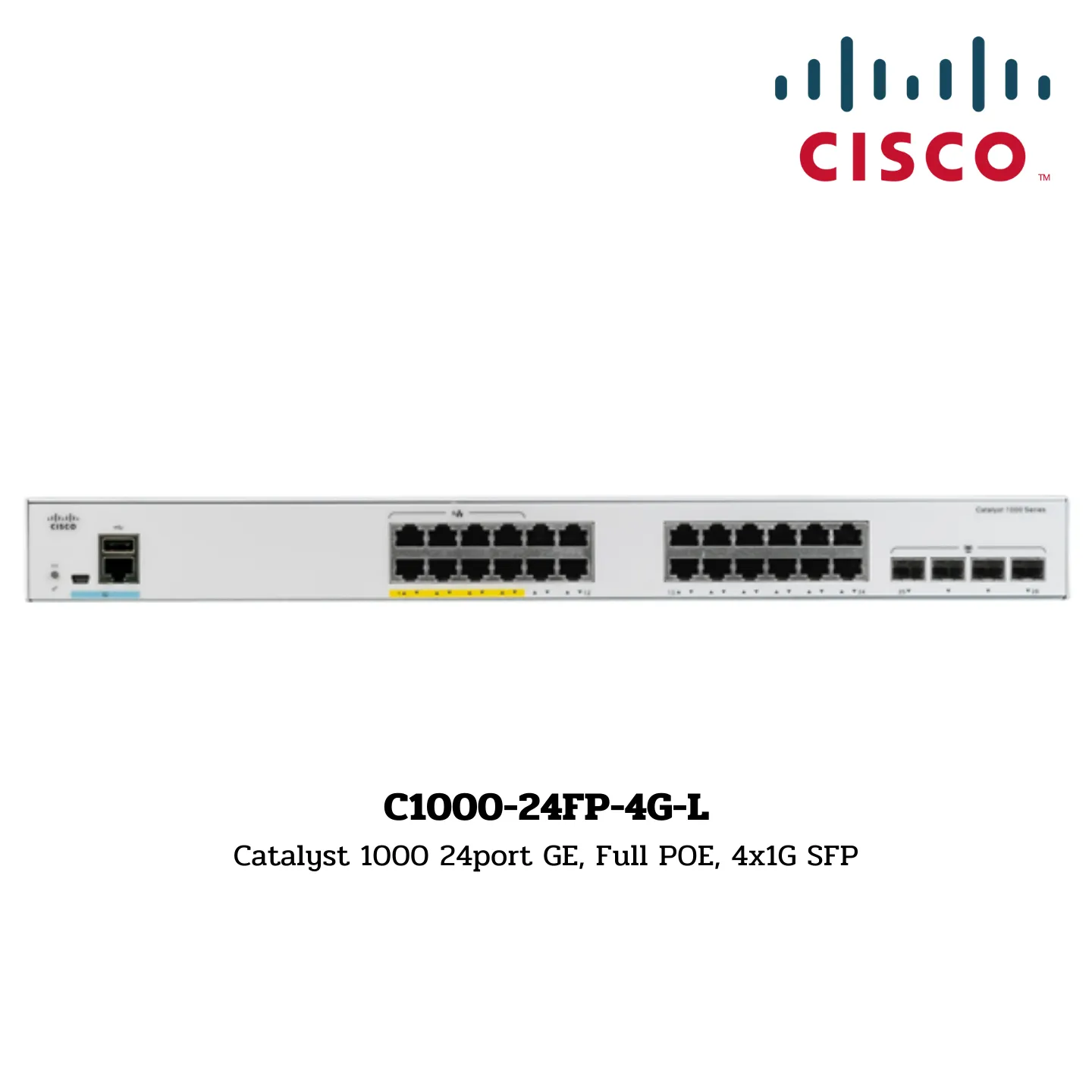

Switch Cisco Catalyst รุ่น C1000-24FP-4G-L

C1000-24FP-4G-L
Catalyst 1000 24port GE, Full POE, 4x1G SFP

Specifications:

Ports and Interfaces:

• Gigabit Ethernet / FE ports: 24 x 10/100/1000 RJ45 PoE+
• Uplink interfaces: 4 SFP

Power:

• PoE+ power budget: 370W
• Fanless: No

Physical Characteristics:

• Dimensions (WxDxH): 17.48 x 13.59 x 1.73 inches
• Weight: 4.6 kg

Console Ports:

• 1 x RJ-45 Ethernet
• 1 x USB-A port for storage and Bluetooth console

Memory and Processor:

• CPU: ARM v7 800 MHz
• DRAM: 512 MB
• Flash memory: 256 MB

Performance:

• Forwarding bandwidth:
  • FE: 6.4 Gbps
  • 1G: 28 Gbps
  • 10G: 64 Gbps
• Switching bandwidth:
  • FE: 12.8 Gbps
  • 1G: 56 Gbps
  • 10G: 128 Gbps
• Forwarding rate (64-byte L3 packets):
  • FE: 9.52 Mpps
  • 1G: 41.67 Mpps
  • 10G: 95.23 Mpps
• Unicast MAC addresses: 16,000
• IPv4 unicast direct routes: 542
• IPv4 unicast indirect routes: 256
• IPv6 unicast direct routes: 414
• IPv6 unicast indirect routes: 128
• IPv4 multicast routes and IGMP groups: 1,024
• IPv6 multicast groups: 1,024
• IPv4/MAC security ACEs: 600 (FE: 384)
• IPv6 security ACEs: 600 (FE: 256)
• Maximum active VLANs: 256
• VLAN IDs available: 4,094
• Maximum STP instances: 64
• Maximum SPAN sessions: 4
• MTU-L3 packet size: 9,198 bytes
• Jumbo Ethernet frame size: 10,240 bytes
• Dying Gasp: Yes (FE: No)

Reliability (MTBF in hours):

• Data: 2,026,793
• PoE: 698,220
• Full PoE: 698,220

Environmental Operating Conditions:

• Operating temperature:
  • Sea level: -5 to 50°C
  • Up to 5,000 ft: -5 to 45°C
  • Up to 10,000 ft: -5 to 40°C
• Operating altitude: Up to 10,000 ft (3,000m)
• Operating relative humidity: 5% to 90% at 40°C (non-condensing)
• Storage temperature: -25 to 70°C
• Storage altitude: Up to 15,000 ft (4,500m)
• Storage relative humidity: 5% to 95% at 65°C (non-condensing)
