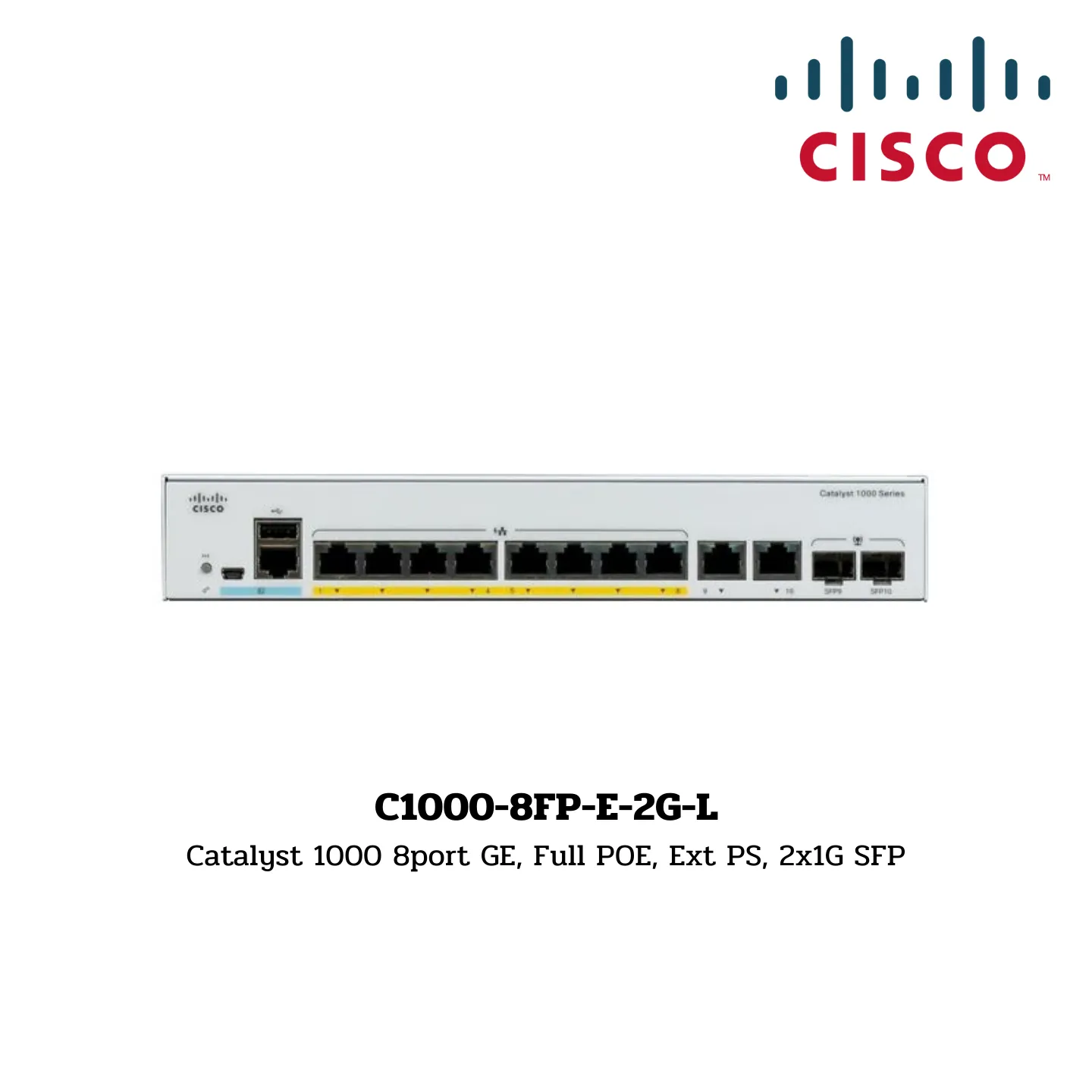

Switch Cisco Catalyst รุ่น C1000-8FP-E-2G-L

C1000-8FP-E-2G-L
Catalyst 1000 8port GE, Full POE, Ext PS, 2x1G SFP

Specifications:

Ports and Interfaces:

• Gigabit Ethernet / FE ports: 8 x 10/100/1000 RJ45 PoE+
• Uplink interfaces: 2 SFP / RJ-45 combo

Power:

• PoE+ power budget: 120W
• Fanless: Yes

Physical Characteristics:

• Dimensions (WxDxH): 10.56 x 7.28 x 1.73 inches
• Weight: 2.70 kg

Console Ports:

• 1 x RJ-45 Ethernet
• 1 x USB-A port for storage and Bluetooth console

Memory and Processor:

• CPU: ARM v7 800 MHz
• DRAM: 512 MB
• Flash memory: 256 MB

Performance:

• Forwarding bandwidth: 10 Gbps
• Switching bandwidth: 20 Gbps
• Forwarding rate (64-byte L3 packets): 14.88 Mpps
• Unicast MAC addresses: 16,000
• IPv4 unicast direct routes: 542
• IPv4 unicast indirect routes: 256
• IPv6 unicast direct routes: 414
• IPv6 unicast indirect routes: 128
• IPv4 multicast routes and IGMP groups: 1,024
• IPv6 multicast groups: 1,024
• IPv4/MAC security ACEs: 600
• IPv6 security ACEs: 600
• Maximum active VLANs: 256
• VLAN IDs available: 4,094
• Maximum STP instances: 64
• Maximum SPAN sessions: 4
• MTU-L3 packet size: 9,198 bytes
• Jumbo Ethernet frame size: 10,240 bytes
• Dying Gasp: Yes

Reliability (MTBF in hours):

• Data: 2,171,669
• PoE: 1,786,412; 1,706,649 (with External PS)
• Full PoE: 1,706,649

Environmental Operating Conditions:

• Operating temperature:
  • Sea level: -5 to 50°C
  • Up to 5,000 ft: -5 to 45°C
  • Up to 10,000 ft: -5 to 40°C
• Operating altitude: Up to 10,000 ft (3,000m)
• Operating relative humidity: 5% to 90% at 40°C (non-condensing)
• Storage temperature: -25 to 70°C
• Storage altitude: Up to 15,000 ft (4,500m)
• Storage relative humidity: 5% to 95% at 65°C (non-condensing)
