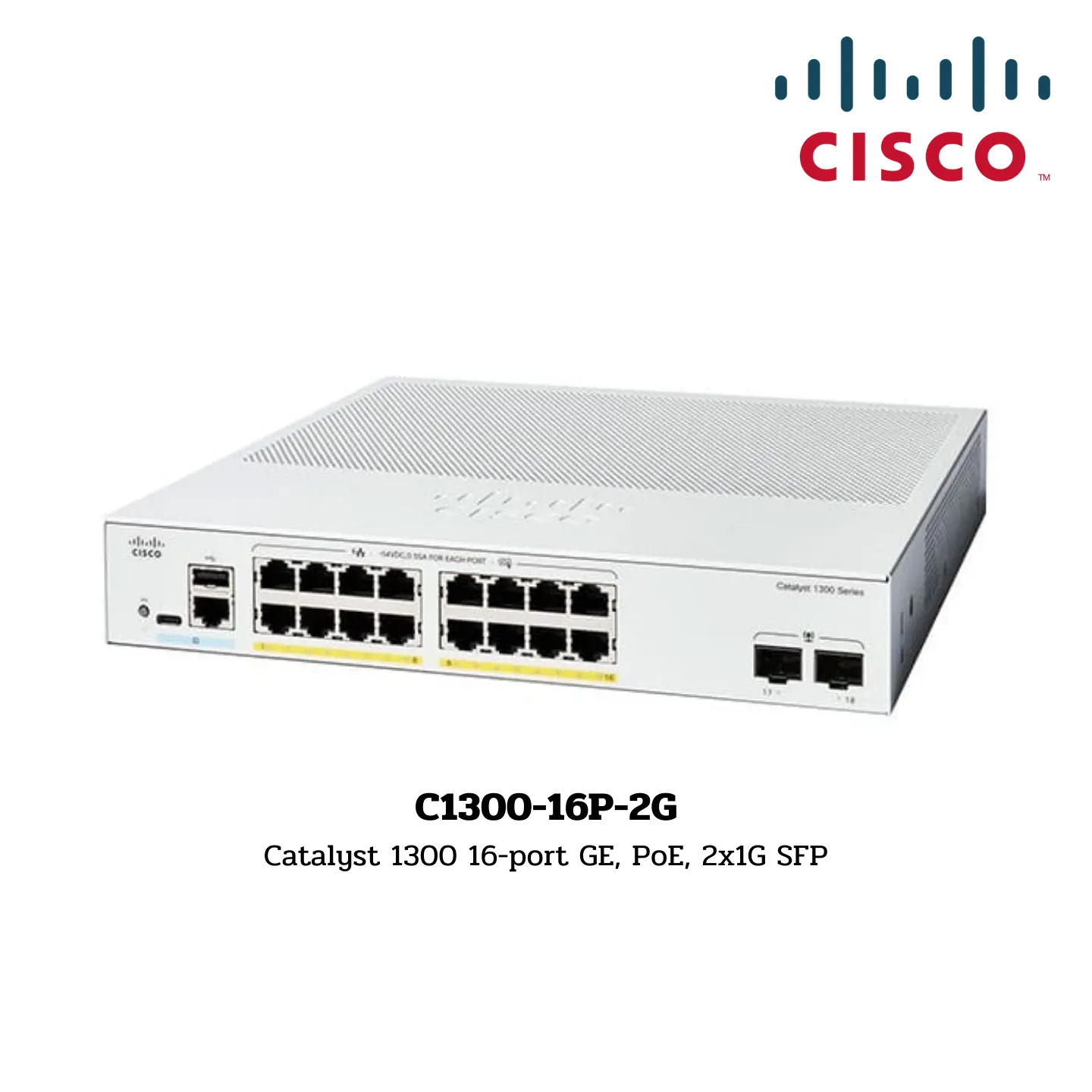

Switch Cisco Catalyst รุ่น C1300-16P-2G

C1300-16P-2G
Catalyst 1300 16-port GE, PoE, 2x1G SFP

The Cisco Catalyst C1300-16P-2G is a managed PoE switch ideal for small to medium-sized businesses. Here’s an overview and its key features:

Overview

The Catalyst 1300 Series 16-port GE with PoE and 2x1G SFP is designed to deliver high performance, scalability, and robust security. This switch supports Power over Ethernet (PoE) to power devices like IP phones, wireless access points, and security cameras, providing both data and power through a single cable.

Key Features

• Port Configuration: 16 x Gigabit Ethernet (10/100/1000) PoE+ ports.
• Uplink Ports: 2 x 1 Gigabit SFP ports for high-speed uplink connections.
• PoE Power Budget: Supports up to 240W, providing ample power for multiple devices.
• Switching Capacity: Up to 36 Gbps, ensuring efficient data handling.
• Forwarding Rate: 26.78 Mpps (Million packets per second).
• Advanced Security: Includes features such as ACLs (Access Control Lists) and secure port connectivity to safeguard the network.
• Energy Efficiency: Complies with Energy Efficient Ethernet (EEE) standards, reducing power consumption during low network activity.

Specifications:

Model:

• C1300-16P-2G

I/O Ports and Slots:

• 16 x Gigabit Ethernet
• 2 x SFP

Memory and Processor:

• ARM dual-core at 1.4 GHz
• 1 GB DDR4

Throughput:

• 26.78 Mbps

Switch Capacity:

• 36 Gbps

AC Voltage:

• 110V: 18.3W – 152.7W
• 220V: 20.5W – 151.8W

PoE Capability:

• 120W

Dimensions:

• 268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in)

Weight:

• 2.38 kg (5.25 lb)
