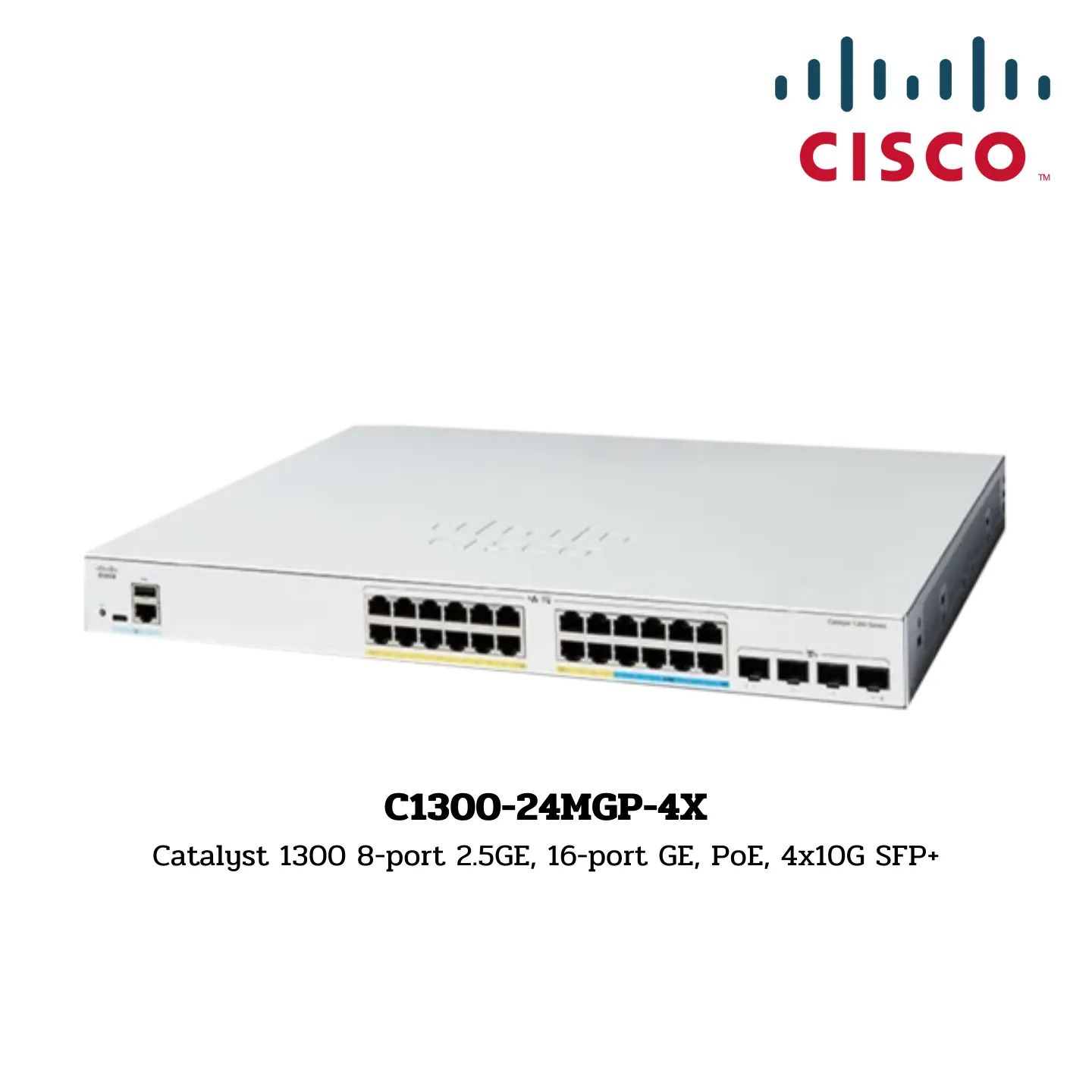

Switch Cisco Catalyst รุ่น C1300-24MGP-4X

C1300-24MGP-4X
Catalyst 1300 8-port 2.5GE, 16-port GE, PoE, 4x10G SFP+

Specifications:

Device Type:

• Switch – 24 ports – L3 – Managed – stackable

Enclosure Type:

• Rack-mountable

Subtype:

• Gigabit Ethernet

Ports:

• 24 x 10/100/1000 (PoE+)
• 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE):

• PoE+
• PoE Budget: 195 W

Performance:

• Forwarding rate (64-byte packets): 95.23 Mpps
• Switching capacity: 128 Gbps

Capacity:

• MSTP instances: 8
• RPVST+ instances: 126
• Link aggregation groups: 8
• Link aggregation ports: 8
• VLAN IDs: 4093
• IGMP multicast groups: 2000
• IPv4 routes (static): up to 990
• IPv4 interfaces: 128
• ACL rules: 1024
• Priority queues: 8
• Packet buffer size: 1.5 MB

MAC Address Table Size:

• 16000 entries

Jumbo Frame Support:

• 9000 bytes

Max Units In A Stack:

• 8

Routing Protocol:

• RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP

Processor:

• X ARM: 1.4 GHz

RAM:

• 1 GB DDR4 SDRAM

Flash Memory:

• 512 MB

Status Indicators:

• System, PoE, link/activity/speed

Interfaces:

• 24 x 10/100/1000 Base-T (PoE+) RJ-45
• 4 x 10GBase-X SFP+
• 1 x console RJ-45
• 1 x USB-C console
