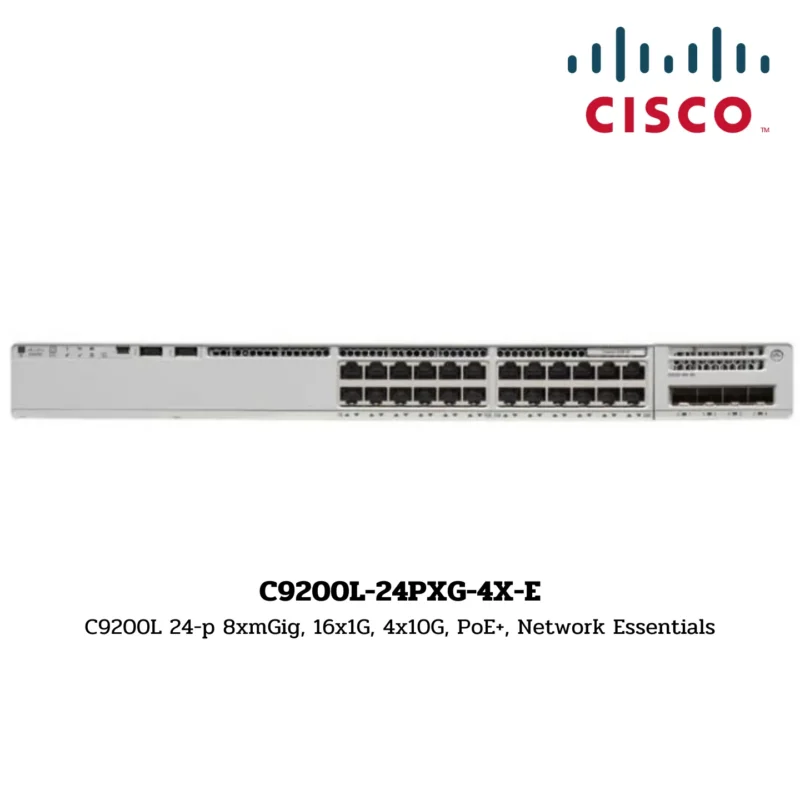

Cisco Catalyst รุ่น C9200L-24PXG-4X-E

C9200L-24PXG-4X-E
C9200L 24-p 8xmGig, 16x1G, 4x10G, PoE+, Network Essentials

Specifications:

Downlinks:

• Total 10/100/1000 or PoE+ copper ports: 24 ports full PoE+ (8 mGig ports up to 10G, 16 ports up to 1G)

Uplink Configuration:

• 4 x 10G fixed uplinks

Default Primary AC Power Supply:

• Model: PWR-C5-600WAC

Fans:

• Type: Fixed redundant

Software:

• Network Essentials

Chassis Dimensions:

• Imperial: 1.73 x 17.5 x 13.8 in
• Metric: 4.4 x 44.5 x 35.0 cm

Virtual Networks:

• 1

Stacking Bandwidth:

• 80 Gbps

MAC Addresses:

• Total: 16,000

IPv4 Routes:

• Total: 11,000 (8,000 direct routes and 3,000 indirect routes)

Routing Entries:

• IPv4: 3,000
• IPv6: 1,500

Multicast Routing Scale:

• 1,000

QoS Scale Entries:

• 1,000

ACL Scale Entries:

• 1,500

Packet Buffer per SKU:

• 6 MB buffers for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF) Entries:

• 16,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM:

• 2 GB

Flash:

• 4 GB

VLAN IDs:

• 1,024

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• N/A

Bandwidth Specifications:

Switching Capacity:

• 272 Gbps

Forwarding Rate:

• 214.28 Mpps

Physical Specifications:

Mean Time Between Failures (MTBF):

• 379,410 hours
