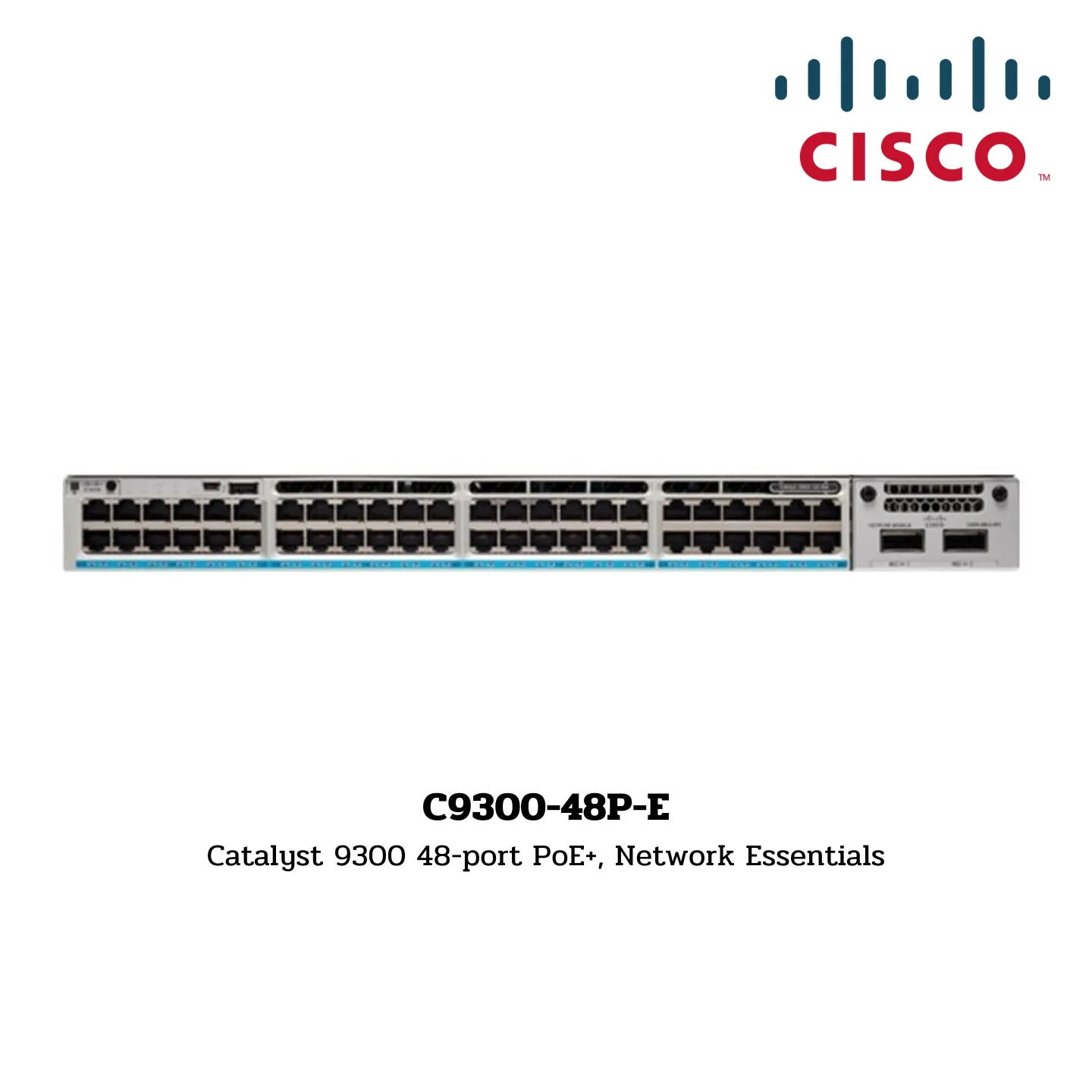

Switch Cisco Catalyst รุ่น C9300-48P-E

C9300-48P-E
Catalyst 9300 48-port PoE+, Network Essentials

Specifications:

Part Number:

• C9300-48P-E

Product Description:

• Catalyst 9300 48-port PoE+, Network Essentials

Downlinks:

• Total 10/100/1000 or Multigigabit Copper Ports: 48 PoE+

Uplink Configuration:

• Default AC Power Supply: 715W AC
• Available PoE Power: 437W
• Cisco StackWise-480: Yes
• Cisco StackPower: Yes
• Default Power Supply: PWR-C1-715WAC-P/2

Performance Specifications:

Switching Capacity:

• 256 Gbps on 48-port Gigabit Ethernet model

Stacking Bandwidth:

• 480 Gbps

Total Number of MAC Addresses:

• 32,000

Total Number of IPv4 Routes (ARP plus learned routes):

• 32,000 (24,000 direct routes and 8,000 indirect routes)

IPv4 Routing Entries:

• 32,000

IPv6 Routing Entries:

• 16,000

Multicast Routing Scale:

• 8,000

QoS Scale Entries:

• 5,120

ACL Scale Entries:

• 5,120

Packet Buffer per SKU:

• 16 MB buffer for 24- or 48-port Gigabit Ethernet models

Flexible NetFlow (FNF) Entries:

• 64,000 flows on 24- and 48-port Gigabit Ethernet models

DRAM:

• 8 GB

Flash:

• 16 GB

VLAN IDs:

• 4,000

Total Switched Virtual Interfaces (SVIs):

• 2,000

Jumbo Frames:

• 9,198 bytes

Total Routed Ports per 9300 Series Stack:

• 208

Wireless Bandwidth per Switch:

• Up to 96 Gbps on 48-port Gigabit Ethernet model

Forwarding Rate:

• 154.76 Mpps

Physical Specifications:

Dimensions (H x W x D):

• 1.73 x 17.5 x 17.5 Inches

Weight:

• 16.33 Pounds

Mean Time Between Failures (MTBF):

• 299,000 hours

Certifications:

Safety Certifications:

• UL 60950-1
• CAN/CSA-C222.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950.1
• IEEE 802.3

Electromagnetic Emissions Certifications:

• 47 CFR Part 15
• CISPR22 Class A
• EN 300 386 V1.6.1
• EN 55022 Class A
• EN 55032 Class A
• CISPR 32 Class A
• EN61000-3-2
• EN61000-3-3
• ICES-003 Class A
• TCVN 7189 Class A
• V-3 Class A
• CISPR24
• EN 300 386
• EN55024
• TCVN 7317

Environmental:

• Reduction of Hazardous Substances (ROHS) 5
