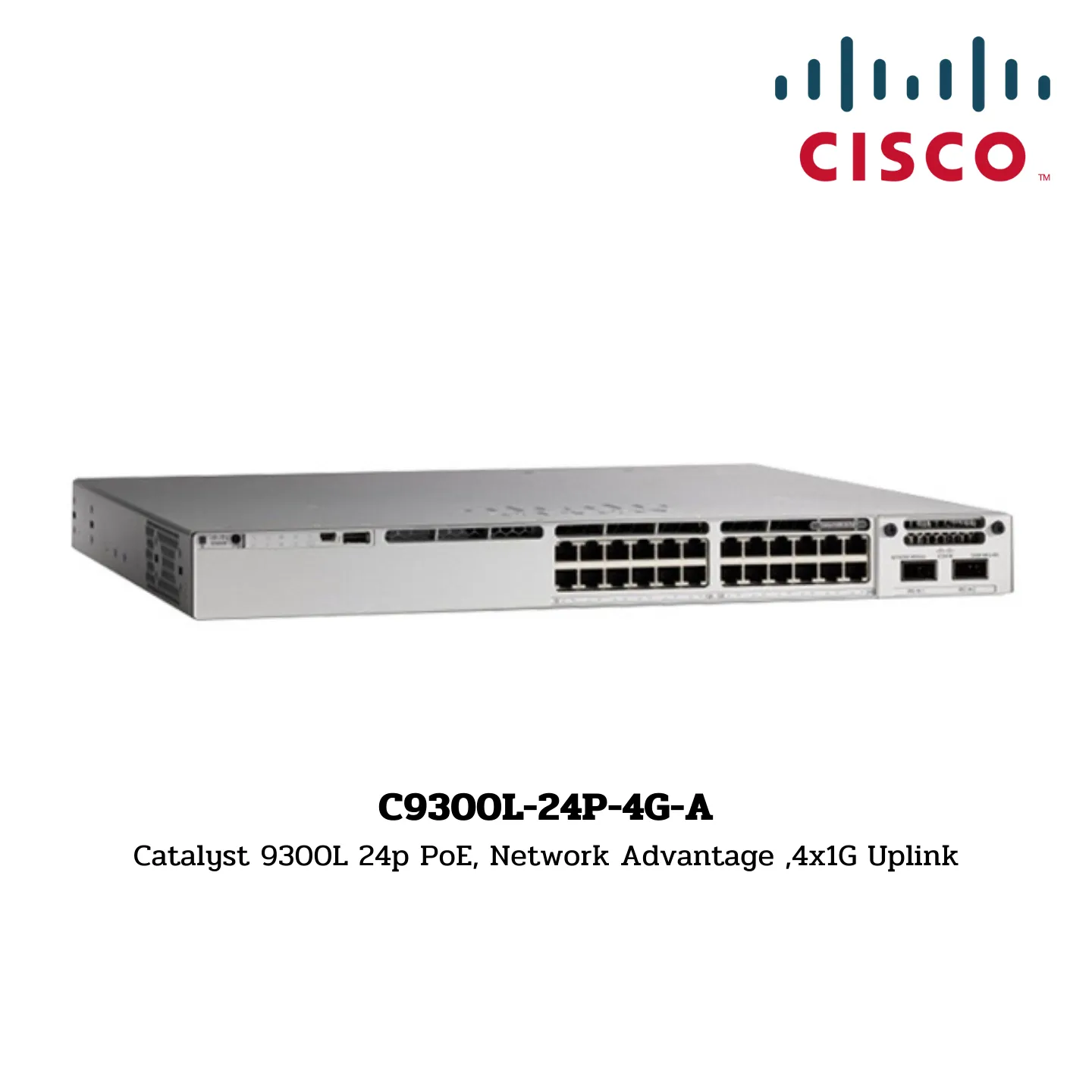

C9300L-24P-4G-A

C9300L-24P-4G-A
Catalyst 9300L 24p PoE, Network Advantage ,4x1G Uplink

Specifications:

Part Number:

• C9300L-24P-4G-A

Product Description:

• Catalyst 9300L 24-port PoE, Network Advantage, 4x1G Uplink

Downlinks:

• Total 10/100/1000 or Multigigabit Copper Ports: 24 PoE

Uplink Configuration:

• 4 x 1G fixed uplinks

Default AC Power Supply:

• 715W AC

Available PoE Power:

• 437W

Cisco StackWise-160:

• Yes

Cisco StackPower:

• Yes

Default Power Supply:

• PWR-C1-715WAC-P/2

Performance Specifications:

Switching Capacity:

• 128 Gbps on 24-port Gigabit Ethernet model

Stacking Bandwidth:

• 160 Gbps

Total Number of MAC Addresses:

• 16,000

Total Number of IPv4 Routes (ARP plus learned routes):

• 16,000 (12,000 direct routes and 4,000 indirect routes)

IPv4 Routing Entries:

• 16,000

IPv6 Routing Entries:

• 8,000

Multicast Routing Scale:

• 4,000

QoS Scale Entries:

• 2,560

ACL Scale Entries:

• 2,560

Packet Buffer per SKU:

• 6 MB buffer for 24-port Gigabit Ethernet models

Flexible NetFlow (FNF) Entries:

• 32,000 flows on 24-port Gigabit Ethernet models

DRAM:

• 4 GB

Flash:

• 8 GB

VLAN IDs:

• 4,000

Total Switched Virtual Interfaces (SVIs):

• 512

Jumbo Frames:

• 9,198 bytes

Wireless Bandwidth per Switch:

• Up to 48 Gbps on 24-port Gigabit Ethernet model

Forwarding Rate:

• 95.23 Mpps

Physical Specifications:

Dimensions (H x W x D):

• 1.73 x 17.5 x 13.8 Inches

Weight:

• 10.8 Pounds

Mean Time Between Failures (MTBF):

• 292,300 hours

Certifications:

Safety Certifications:

• UL 60950-1
• CAN/CSA-C222.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• AS/NZS 60950.1
• IEEE 802.3

Electromagnetic Emissions Certifications:

• 47 CFR Part 15
• CISPR22 Class A
• EN 300 386 V1.6.1
• EN 55022 Class A
• EN 55032 Class A
• CISPR 32 Class A
• EN61000-3-2
• EN61000-3-3
• ICES-003 Class A
• TCVN 7189 Class A
• V-3 Class A
• CISPR24
• EN 300 386
• EN55024
• TCVN 7317

Environmental:

• Reduction of Hazardous Substances (ROHS) 5
