Cisco Meraki Cellular Gateway รุ่น MG41E-HW

MG41E-HW

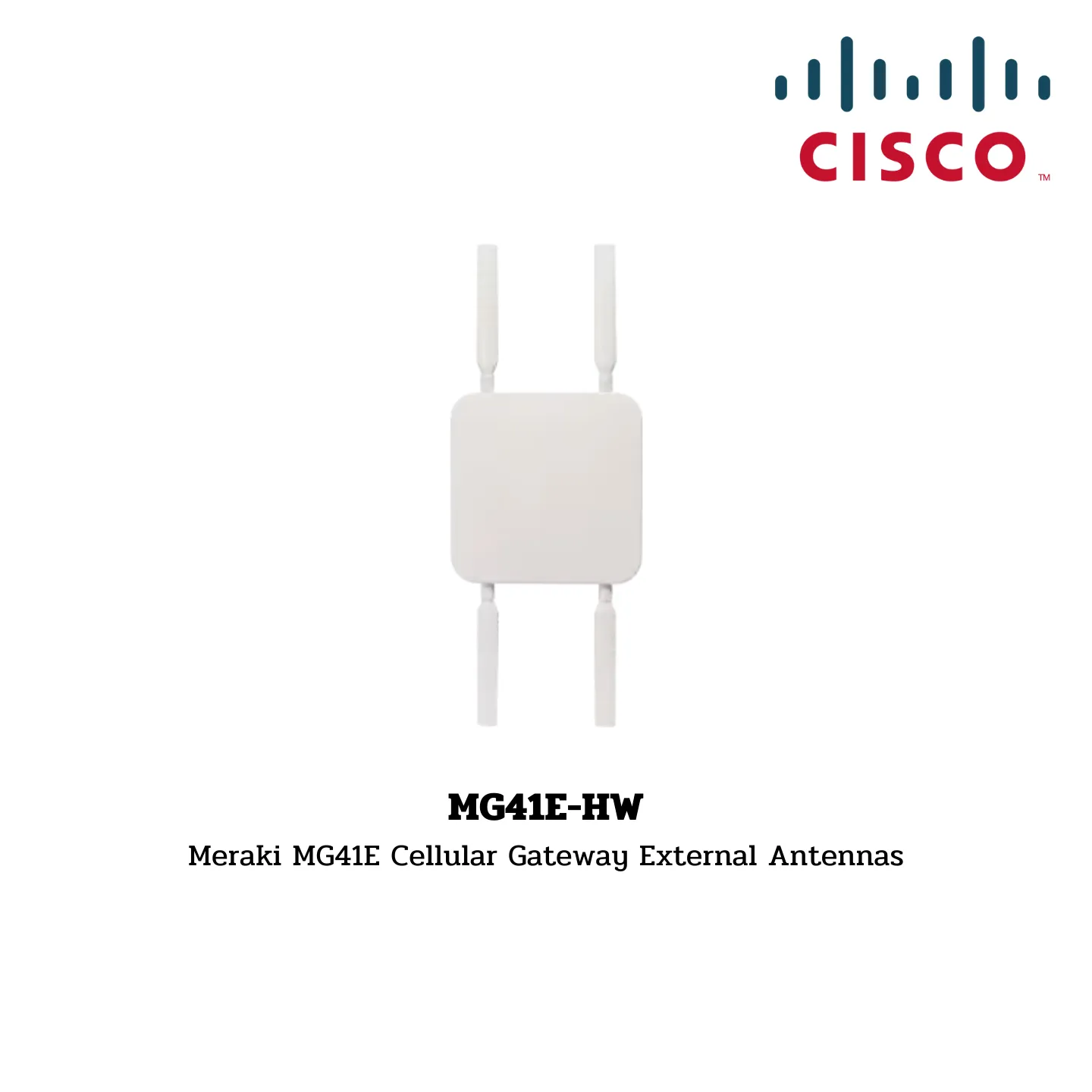

Meraki MG41E Cellular Gateway External Antennas

Specifications

Best Suited For:

• Critical failover or primary connectivity

Examples:

• Pop-up locations, emergency services

Cellular Technology:

• 4G LTE Advanced Pro

Radio:

• Single modem, single radio (Single SIM, single standby)

Private Cellular Network Support:

• Private 4G

Modem:

• Cat 18

Throughput (Download/Upload):

• 1.2 Gbps / 150 Mbps

SIM Profiles:

• 2 (active/passive)

SIM Slots (4FF “Nano”):

• 2

Antenna:

• External

Power Options:

• DC or PoE

Ports:

• 2 x 1 GbE port (PoE)

Water Resistance:

• IP67

Weight:

• 670 g

Dimensions (Device):

• 168 x 168 x 35 (mm)
• 6.6 x 6.6 x 1.4 (in)

Dimensions (External Antennas):

• 144 x 26.5 x 12.3 (mm)
• 5.7 x 1 x 0.5 (in)

Power Supply:

• 12V/1A, 48-57V DC/0.35A

Operating Temperature:

• -22°F to 122°F (-30°C to 50°C)

Humidity:

• 5% to 95% non-condensing

Device Management:

• Meraki dashboard (GUI) API

Provisioning:

• True zero-touch provisioning

Firmware Management:

• Automatic and scheduling control

Full-Stack Capabilities That Complement MG:

• SD-WAN
• Security with next-generation firewall
• Access
• IoT
• Switching

Remote Diagnostics:

• Email, SMS, and mobile push notification alerts
• Ping, trace route, cable testing, and link failure detection with alerting
• Remote packet capture
• Combined event and configuration change logs with instant search
• DM logging via local status page

Mounting Options:

• Mount anywhere: Ceiling, wall, or pole with all-in-one mounting bracket included

IPv4v6:

• Yes

5G with LTE Failover:

• No

IP Passthrough:

• Yes

Dual SIM/Auto SIM Failover:

• Yes

FirstNet Band 14 Compatible:

• Yes

Signal Strength Info and Graphs:

• Yes

Band Information:

• Yes

Custom APN Configuration:

• Yes

Auto APN Configuration:

• Yes

Included in Box:

• MG device (1)
• Mounting plate (1)
• Dipole external antennas (4)

Compatible Accessories:

• Low-voltage power adapter
• MA-ANT-C1-B cellular patch antenna for MG21
• MA-ANT-C1-A external cellular dipole antennas for MG21
• MA-PWR-30W-XX standard power adapter (regional plugs per SKU)
• MA-INJ-4 gigabit 802.3at PoE injector
• MA-ANT-C2-A external cellular dipole antennas included with MG41E, MG51E
• MA-ANT-C2-B available for MG52E
• MA-ANT-DUAL-C1 cellular patch antenna for the MG41E, MG51E (boost signal gain for remote locations far from a tower)

Carrier Certifications:

• AT&T, Verizon, T-Mobile, and more

Other Certifications:

• PTCRB (U.S.), RCM (ANZ, APAC), GCF (EU)
