MA-INJ-4

MA-INJ-4

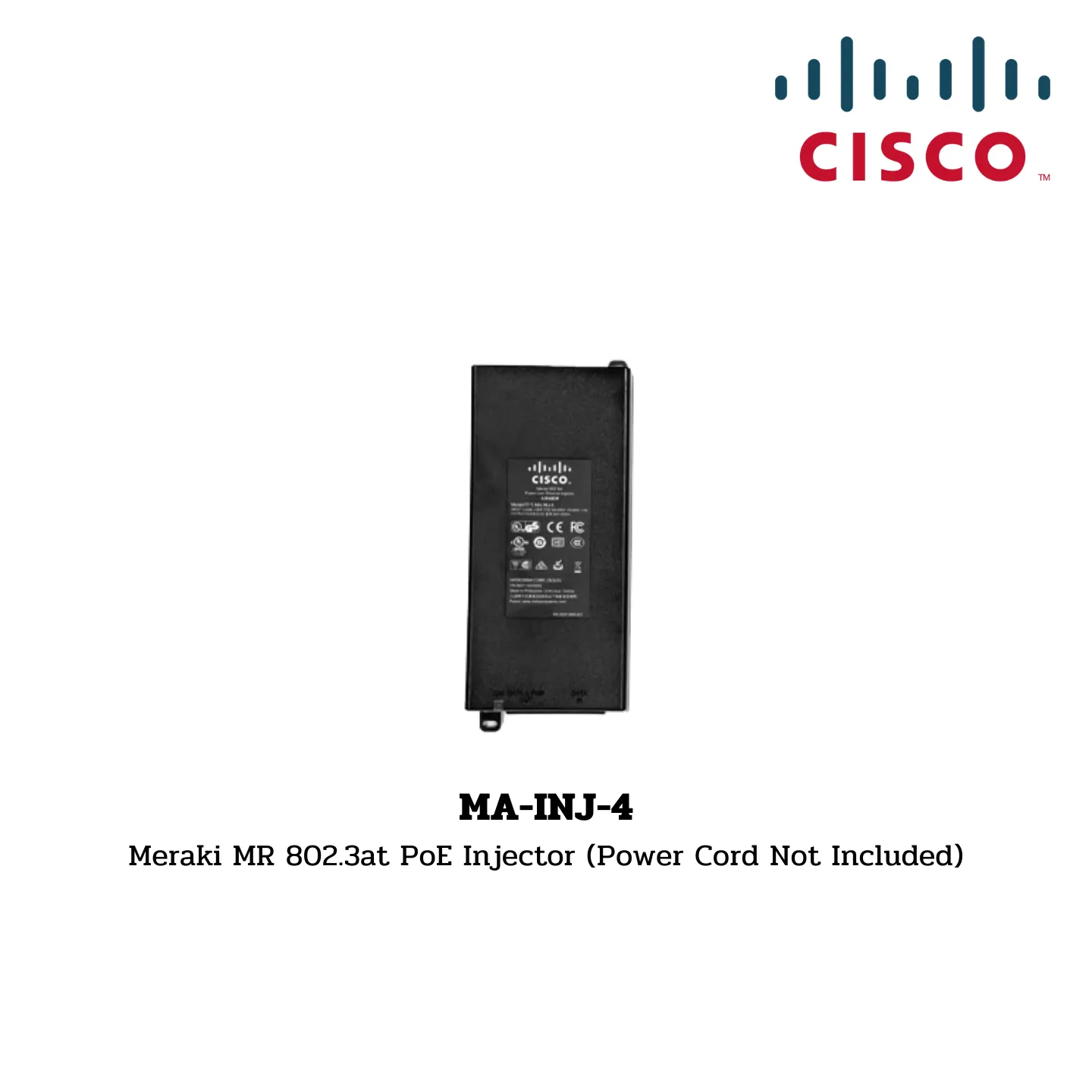

Meraki MR 802.3at PoE Injector (Power Cord Not Included)

Product Highlights:

• Cost Reduction & Simplified Installation: Eliminates the need for a separate power line.
• Installation Flexibility: Powers devices up to 100 meters away.
• Compliance: Fully IEEE 802.3at standard compliant.
• Compatibility: Gigabit compatible.
• Indicators: Power, load detection, and fault diagnostics LEDs.

Power:

• Input Voltage: 100 to 240 VAC.
• Maximum Input Current: 0.8A.
• AC Input Frequency: 50-60 Hz.
• Maximum Output Power: 30W.
• Distance: Powers devices up to 100 meters away from the injector.

Data:

• Compatibility: Ethernet 10/100/1000 Mbit/s, full duplex.

Environmental:

• Operating Temperature: 0 to 40°C (32 to 104°F).
• Storage Temperature: -20 to 70°C (-4 to 158°F).
• Operating Humidity: 5 to 93%.

Additional Features:

• Protection: Short-circuit protection.

Physical Dimensions:

• Dimensions: 160 mm x 52.5 mm x 35.5 mm (6.3” x 2.06” x 1.4”).
• Weight: 210 g (0.46 lb).

Mounting:

• Mounting: Mounts to walls (anchors and screws not included).

Compatibility:

• Standards: Complies with IEEE 802.3at standard, backward compatibility with 802.3af MR-series access points.
• LED Indicators: Shows input power, detected/connected to a valid 802.3at load, and overload state or short circuit.

Regulatory:

• USA: FCC Part 15 Class B.
• EU: EN55022 Class B.
• cUL/US: Certified.
