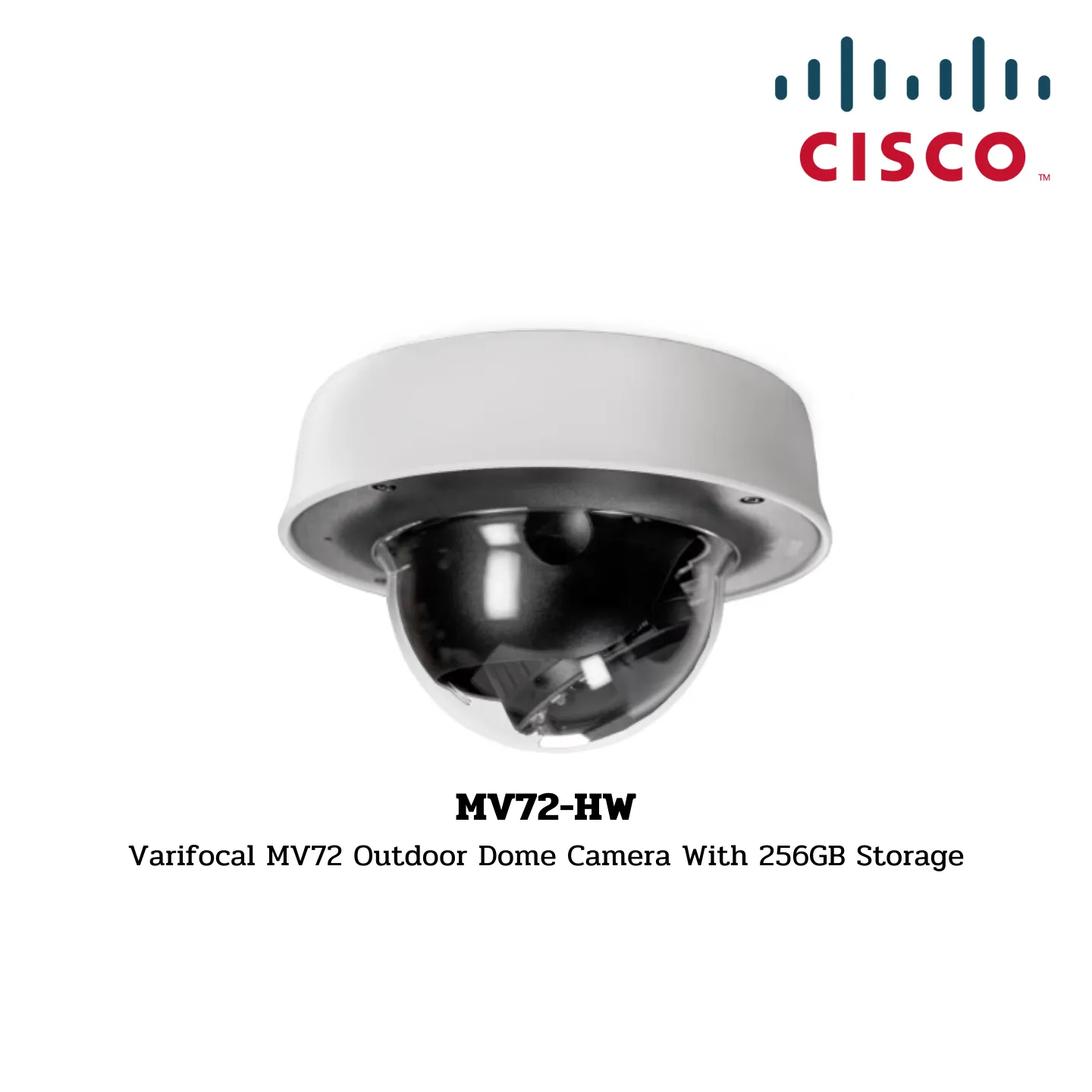

Cisco Outdoor Dome Camera รุ่น MV72-HW

MV72-HW
Varifocal MV72 Outdoor Dome Camera With 256GB Storage

• Camera Specifications:

  • Image Sensor: 1/3” 4MP (2688×1520) progressive CMOS
  • Storage: 256GB (MV72), 512GB (MV72X) high-endurance solid-state
  • Lens:
    • 3-9mm focal length
    • f/1.2-2.3 aperture
  • Field of View:
    • Horizontal: 36-112°
    • Vertical: 20-57°
    • Diagonal: 42-138°
  • Lens Adjustment: Tilt 65°, Rotation +/- 90°, Pan 354°
  • Shutter Speed: 1/30s to 1/32,000s
  • Illumination: Minimum 0.18 lux (standard), 0.01 lux (night mode), IR illuminators up to 30m
  • Heating Elements: Included

  Networking and Wireless:

  • Interfaces: 1x 10/100/1000 BASE-T Ethernet (RJ45), DSCP traffic marking
  • Supported Frequency Bands:
    • 2.4 GHz 802.11b/g/n
    • 5 GHz 802.11a/n/ac
  • Capabilities: MU-MIMO support, 20/40/80 MHz channels, up to 256 QAM
  • Antennas: Integrated omni-directional

  Video Specifications:

  • Recording:
    • 1080p HD (1920×1080) at 20fps (MV72)
    • 4MP at 15fps (MV72X)
  • Storage: Cloud-augmented edge storage
  • Retention: Up to 90 days (MV72X)
  • Streaming: Direct live streaming without client software, automatic cloud proxy
  • HDR: High Dynamic Range
  • Audio: Supported with built-in microphone

  Power:

  • Consumption: 25.5W maximum via 802.3at PoE

  Environment:

  • Operating Conditions: Temperature -40°C to 50°C (-40°F to 122°F)

  Data and Network Security:

  • Encryption: Full disk encryption (AES 256-bit), TLS certificates, two-factor authentication
  • Wireless Security: WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TTLS, TKIP, AES

  Physical Characteristics:

  • Dimensions: 165mm x 103mm
  • Weight: 1,247g
  • Connectors: Female RJ45 Ethernet, multicolor status LED, reset button, external microphone switch
  • Ratings: IK10+ vandal resistance, IP67 weather-proofing
