Z4-HW

Z4-HW

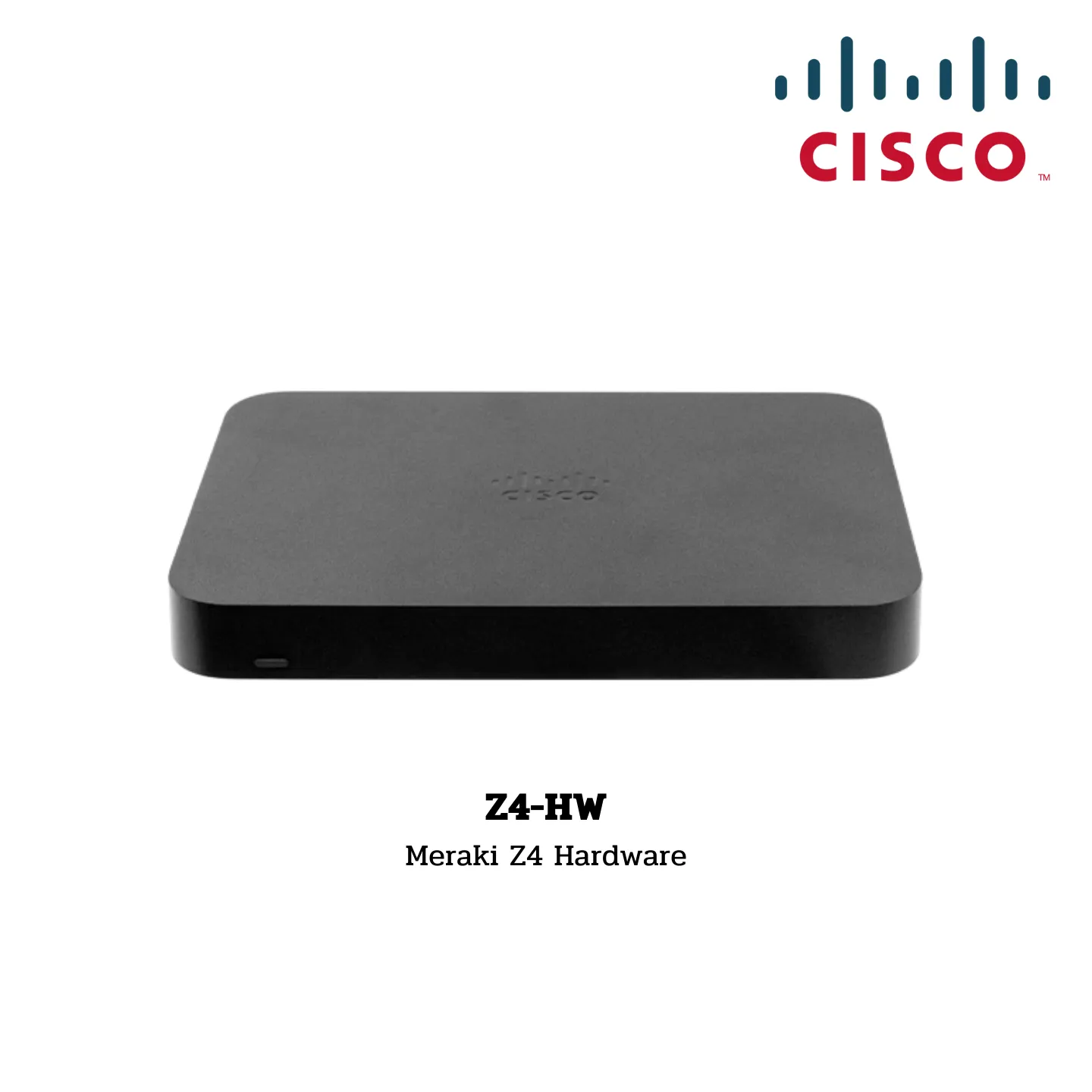

Meraki Z4 Hardware

• Specifications

  Context and Comparisons

  • Single WAN Uplink: Yes
  • Cellular Uplink: No
  • Stateful Firewall Throughput: 500 Mbps
  • Maximum VPN Throughput: 250 Mbps
  • Security Throughput: 300 Mbps
  • PoE Capabilities: Yes, 1x GbE RJ45 LAN Ports (802.3at)
  • WiFi: Dual-band 2×2 WiFi 6
  • Recommended Use Case: Up to 15 devices

  Throughput and Capabilities

  • Max Stateful Firewall Throughput in NAT Mode: 500 Mbps
  • Max VPN Throughput: 250 Mbps

  Physical

  • Mount Type: Desktop / Wall Mount
  • Dimensions (h x d x w): 7.25 x 4.84 x 1.10 in / 184.2 x 123 x 28 mm
  • Weight: 0.86 lbs / 0.391 kg
  • Power Supply: 50W DC
  • Power Load (idle/max): 11W / 42W
  • Operating Temperature: 32°F – 113°F (0°C – 45°C)
  • Humidity: 5% to 95%

  Ordering Guide

  • Z4-HW: Meraki Z4 Cloud Managed Teleworker Gateway

  Accessories

  • MA-PWR-50WAC: Meraki MX Replacement Power Adapter (Z4/C) (50 Watts AC)
  • MA-PWR-CORD-US: 1x AC Power Cable, US plug
  • MA-PWR-CORD-EU: 1x AC Power Cable, EU plug
  • MA-PWR-CORD-UK: 1x AC Power Cable, UK plug
  • MA-PWR-CORD-AU: 1x AC Power Cable, AU plug
