Switch H3C Gateway รุ่น WSG1840X

WSG1840X

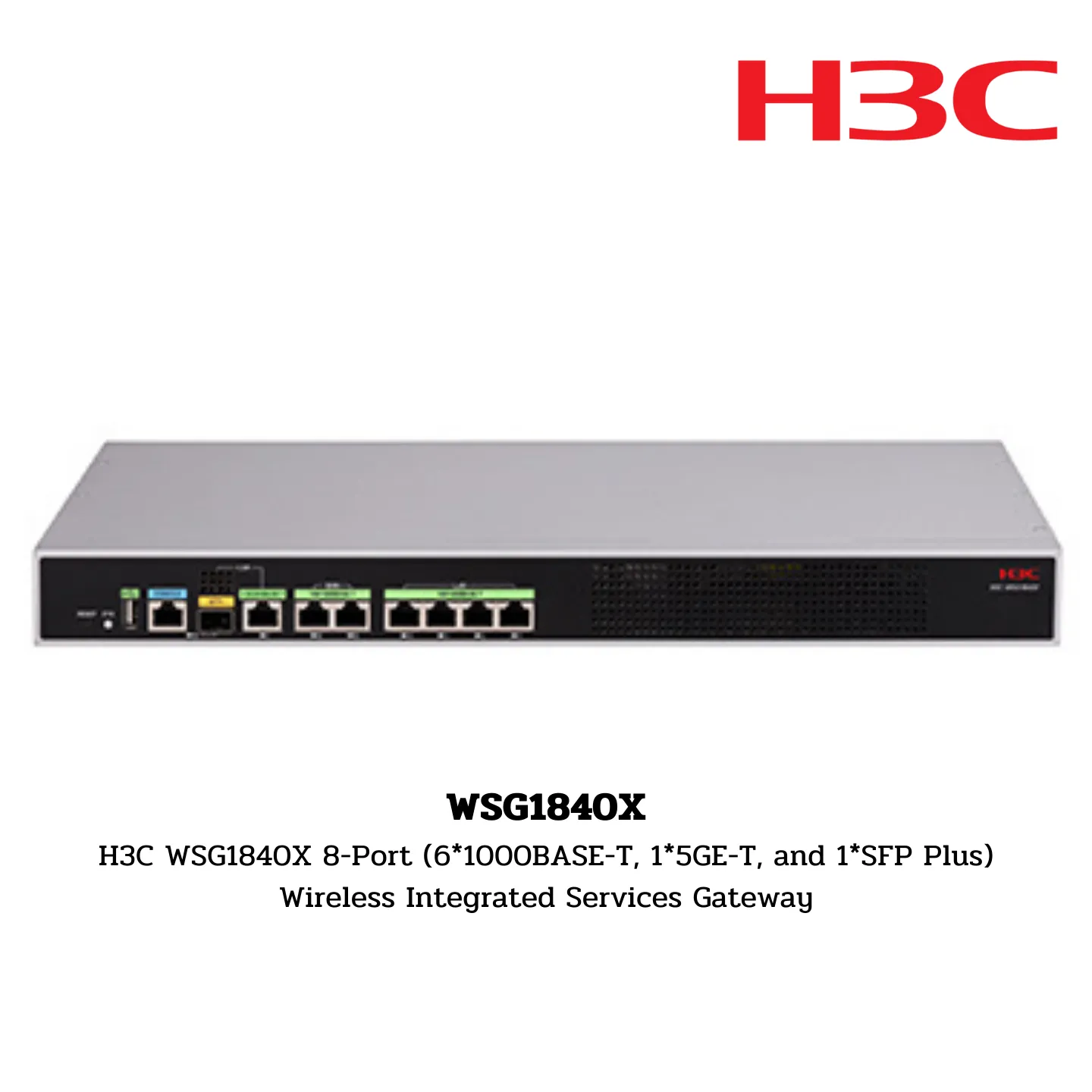

H3C WSG1840X 8-Port (6*1000BASE-T, 1*5GE-T, and 1*SFP Plus) Wireless Integrated Services Gateway

Hardware Specifications

Dimensions:

• 440 × 165 × 43.6 mm (W × D × H)

Weight:

• 1.8 kg

Wireless Throughput:

• 4 Gbps

Port Configuration:

• LAN: 1 × SFP Plus + 4 × GE + 1 × 5GE
• WAN: 2 × GE
• USB: 1

Power Supplies:

• 100V AC ~ 240V AC: 50/60Hz

Operating and Storage Temperature:

• Operating: 0℃ to 45℃
• Storage: –40℃ to 70℃

Operating and Storage Relative Humidity:

• 5% to 95%

Safety Compliance:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• EN 60601-1-2
• FDA 21 CFR Subchapter J

EMC:

• ETSI EN 300 386 V1.3.3:2005
• EN 55024: 1998+ A1: 2001 + A2: 2003
• EN 55022: 2006
• VCCI V-3: 2007
• ICES-003: 2004
• EN 61000-3-2: 2000+A1: 2001+A2: 2005
• EN 61000-3-3: 1995+A1: 2001+A2: 2005
• AS/NZS CISPR 22: 2004
• FCC PART 15: 2005
• GB 9254: 1998
• GB/T 17618: 1998

MTBF:

• ≥ 50,000 hours

Software Specifications

Basic Functions:

• Number of Managed APs by Default: 64 ordinary AP or 128 wall-plate AP
• Maximum Number of Managed APs: 128
• Maximum Users of Authentication: 2048

802.11 MAC:

• 802.11 Protocols: Supported
• Number of SSID of Whole Machine: 128
• SSID Hiding: Supported
• 11G Protection: Supported
• 11n Only: Supported
• Use Number Limit: Supported (SSID based, per RF based)
• Keepalive: Supported
• Idle: Supported
• Multi-country Code Assignment: Supported
• Wireless User Isolation: Supported (VLAN based wireless users 2-layer isolation, SSID based wireless user 2-layer isolation)
• 20MHz/40MHz Auto-switch in 40MHz Mode: Supported
• Local Forwarding: Local forwarding based on SSID+VLAN

CAPWAP:

• Automatic AP Registration: Supported
• AC Discovery (DHCP Option43, DNS): Supported
• IPv6 Tunnel: Supported
• Clock Synchronization: Supported
• Jumbo Frame Forwarding: Supported
• Assign Basic AP Network Parameter through AC: Supported (Static IP, VLAN, connected AC address)
• L2/L3 Connection between AP and AC: Supported
• NAT Traversal between AP and AC: Supported
• Roaming: Intra-AC, Inter-AP L2 and L3 roaming, Inter-AC, Inter-AP L2 and L3 roaming

GW Features:

• NAT: Supported
• PPPoE: Supported
• DDNS: Supported
• SSL VPN: Supported
• IPSEC VPN: Supported
• RIP: Supported
• GRE: Supported

Access Control:

• Open System, Shared-Key: Supported
• WEP-64/128, Dynamic WEP: Supported
• WPA, WPA2, WPA3: Supported
• TKIP: Supported
• CCMP: Supported (11n recommended)
• SSH v1.5/v2.0: Supported
• Portal Authentication: Supported (Remote Authentication, external server)
• Portal Page Redirection: Supported (SSID based, AP Portal page push)
• Portal By-pass Proxy: Supported
• 802.1x Authentication: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)
• Local Authentication: 802.1X, Portal, MAC authentication
• LDAP Authentication: 802.1X and Portal
• EAP-GTC and EAP-TLS Supported by 802.1X Login: Supported
• AP Location-based User Access Control: Supported
• Guest Access Control: Supported
• VIP Channel: Supported
• ARP Attack Detection: Supported (Wireless SAVI)
• SSID Anti-spoofing: SSID + user name binding
• AAA Server Selection Based on SSID and Domain: Supported
• AAA Server Backup: Supported
• Local AAA Server for Wireless User: Supported
• TACACS+: Supported

QoS:

• Priority Mapping: Supported
• L2-L4 Packet Filtering and Traffic Classification: Supported
• Rate Limit: Supported with granularity of 8Kbps
• 802.11e/WMM: Supported
• Access Control Based on User Profile: Supported
• Intelligent Bandwidth Limit (Equal Bandwidth Share Algorithm): Supported
• Intelligent Bandwidth Limit (User Specific): Supported
• Intelligent Bandwidth Guarantee: Supported (Free flow for packets coming from every SSID when traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested)
• QoS Optimization for SVP Phone: Supported
• CAC (Call Admission Control): Supported (based on user number/bandwidth)
• End-to-end QoS: Supported
• AP Upload Speed Limit: Supported

RF Management:

• Country Code Lock: Supported
• Static Channel and Power Configuration: Supported
• Auto Channel and Power Configuration: Supported
• Auto Transmission Rate Adjustment: Supported
• Coverage Hole Detection and Correction: Supported
• Load Balancing: Supported (based on traffic, user & frequency)
• Intelligent Load Balancing: Supported
• AP Load Balancing Group: Supported (auto-discovery and flexible setting)

Security:

• Static Blacklist: Supported
• Dynamic Blacklist: Supported
• White List: Supported
• Rogue AP Detection: Supported (SSID based, BSSID, device OUI)
• Rogue AP Countermeasure: Supported
• Flooding Attack Detection: Supported
• Spoof Attack Detection: Supported
• Weak IV Attack Detection: Supported
• WIPS/WIDS: Supported (7-layer mobile security)

Layer 2 Protocol:

• ARP (Gratuitous ARP): Supported
• 802.1p: Supported
• 802.1q: Supported (Maximum VLANs: 4094)
• 802.1x: Supported

IP Protocol:

• IPv4 Protocol: Supported
• Native IPv6: Supported
• IPv6 SAVI: Supported
• IPv6 Portal: Supported

Multicast:

• MLD Snooping: Supported
• IGMP Snooping: Supported
• Multicast Group: 256
• Multicast to Unicast (IPv4, IPv6): Supported (Set unicast limit based on operating environment)

Redundancy:

• 1+1 Failover between ACs: Supported
• Intelligent AP Sharing among ACs: Supported
• Remote AP: Supported

Management and Deployment:

• Network Management: WEB, SNMP v1/v2/v3, RMON
• Network Deployment: WEB, CLI, Telnet, FTP

Green Features:

• Scheduled Shutdown of AP RF Interface: Supported
• Scheduled Shutdown of Wireless Service: Supported
• Per-packet Power Adjustment (PPC): Supported

WLAN Application:

• RF Ping: Supported
• Remote Probe Analysis: Supported
• Packet Forwarding Fairness Adjustment: Supported
• 802.11n Packet Forwarding Suppression: Supported
• Access Based Traffic Shaping: Supported
• Co-AP Channel Sharing: Supported
• Co-AP Channel Reuse: Supported
• RF Interface Transmission Rate Adjustment Algorithm: Supported
• Drop Wireless Packet with Weak Signal: Supported
• Disable User Access with Weak Signal: Supported
• Disable Multicast Packet Caching: Supported
• Status Blink (Limited to Some APs): Supported

New Added Features:

• Policy Forwarding: Supported
• VLAN Pool: Supported
• Bonjour Gateway: Supported
• 802.11w: Supported
• 802.11k, v, r: Supported
• Hotspot2.0 (802.11u): Supported
• NAT: Supported
• VPN: Supported
