Switch H3C รุ่น 6520X-16XT-SI

6520X-16XT-SI

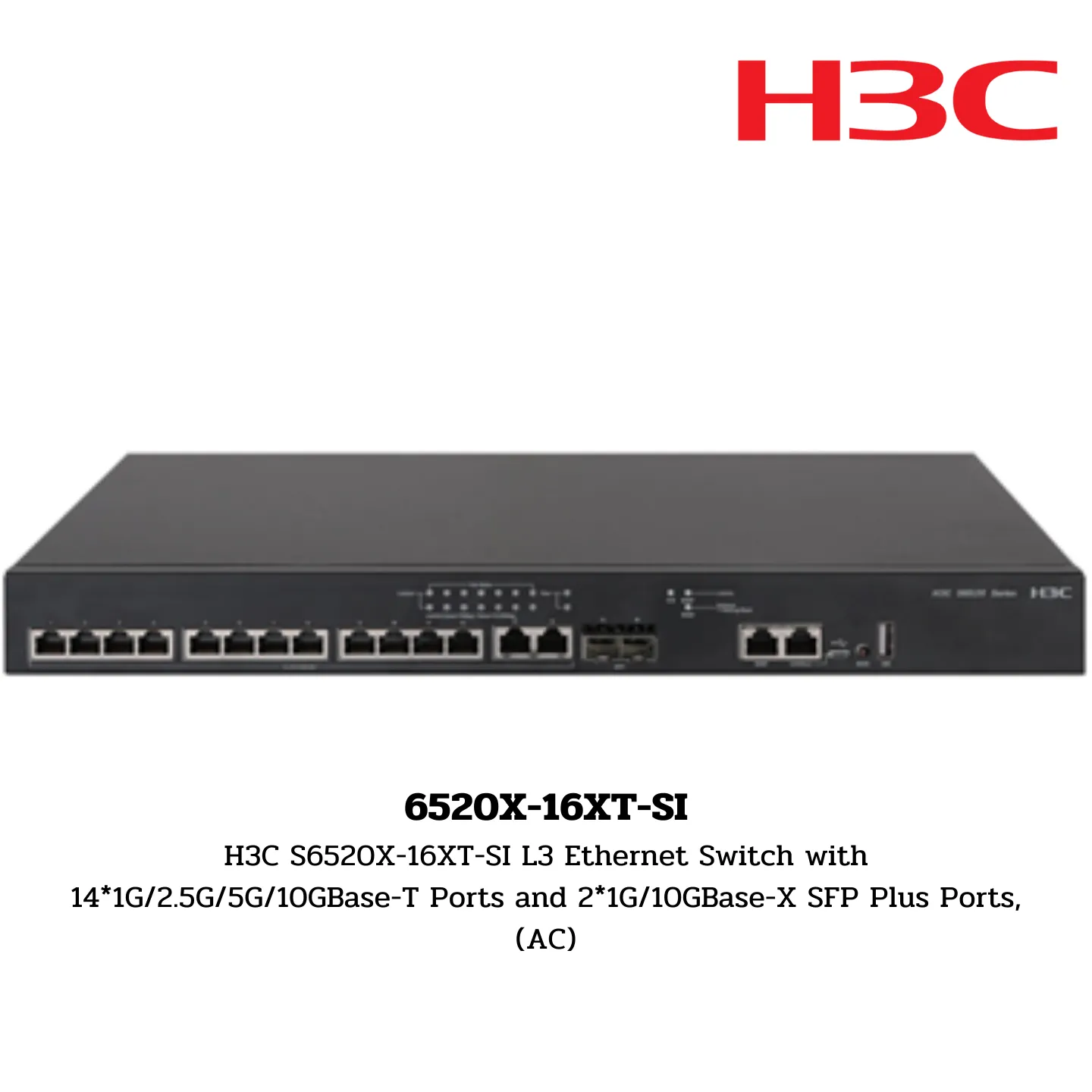

H3C S6520X-16XT-SI L3 Ethernet Switch with 14*1G/2.5G/5G/10GBase-T Ports and 2*1G/10GBase-X SFP Plus Ports,(AC)

Hardware Specifications

Port Switching Capacity:

• 320 Gbps

Packet Forwarding Rate:

• 240 Mpps

Box Switching Capacity:

• 1.44 Tbps

CPU:

• Dual-Core, 1.6 GHz

Flash/SDRAM:

• 1 GB / 2 GB

Buffer:

• 3 MB

Dimensions (W × D × H):

• 440 × 260 × 43.6 mm

Weight:

• ≤ 3.4 kg

Service Ports:

• 14 × 1G/2.5G/5G/10G Base-T Multi-giga ports
• 2 × 1G/10G SFP+ ports

Console Ports:

• 1

Management Ethernet Ports:

• 1

USB Ports:

• 1

Expansion Slots:

• N/A

Power Supply Slots:

• N/A

Idle Power Consumption:

• AC: 22.1W

Max. Power Consumption:

• AC: 48.3W

Input Voltage Range:

• AC Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
• DC: -48V ~ -60V

Operating Temperature:

• 0ºC to 45ºC (32°F to 113°F)
  • For altitudes from -60m to 5000m, the maximum operating temperature reduces by 0.33℃ for every 100m increase in altitude.

Storage Temperature:

• -40℃ to 70℃ (-40℉ to 158℉)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MTBF (Mean Time Between Failures):

• 58.1 years

MTTR (Mean Time to Repair):

• 1 hour
