IE4300-12P-AC H3C IE4000 Series Industrial Switch

IE4300-12P-AC

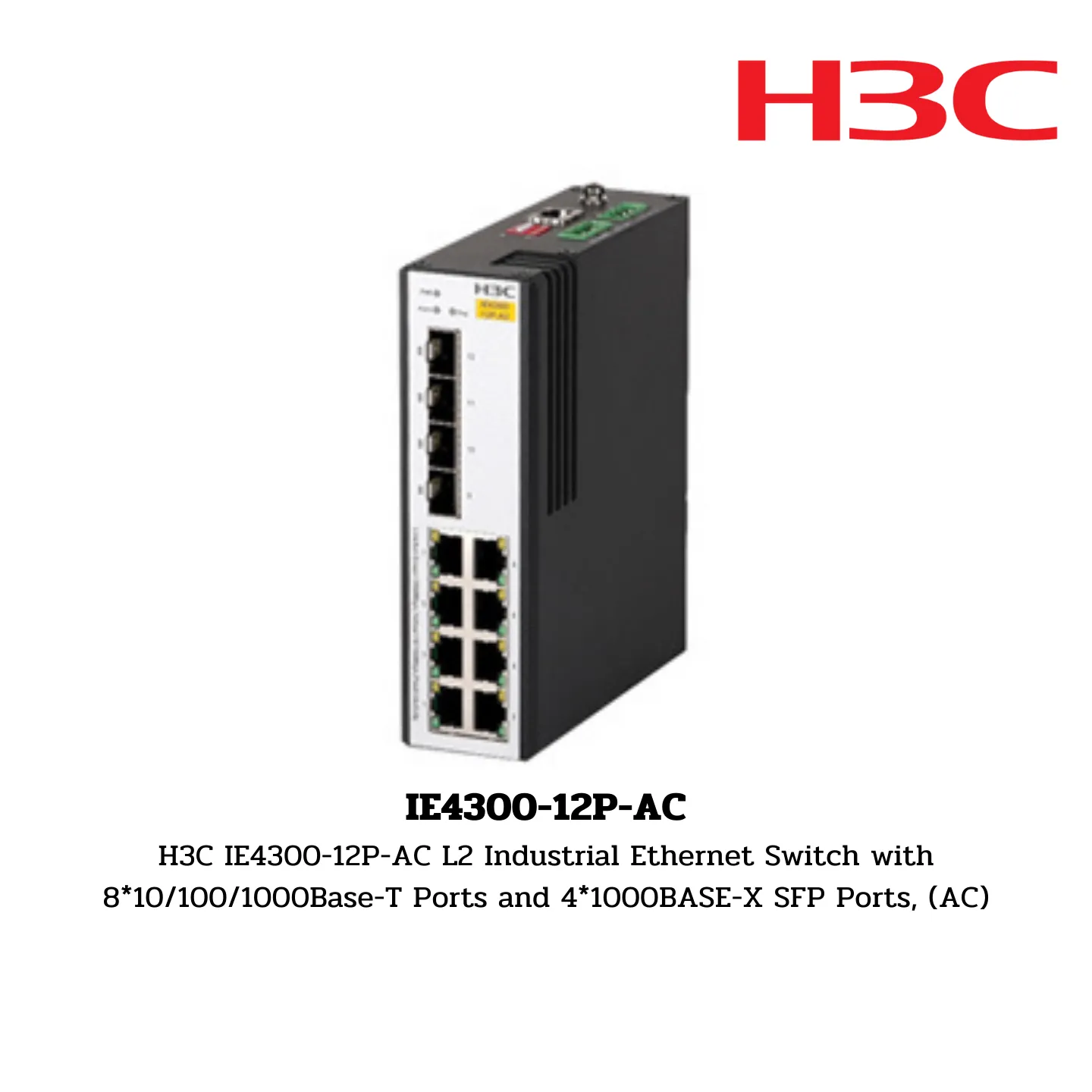

H3C IE4300-12P-AC L2 Industrial Ethernet Switch with 8*10/100/1000Base-T Ports and 4*1000BASE-X SFP Ports, (AC)

Brand:

• H3C

Hardware Specifications

Switching Capacity:

• 24Gbps

Forwarding Capacity:

• 17Mpps

Dimensions (W × D × H):

• 149 × 129.8 × 44mm

Weight:

• ≤ 1kg

10/100/1000 Base-T Ports:

• 8

SFP Ports:

• 4

Input Voltage:

• Rated voltage range: 100 to 240 VAC @ 50 or 60Hz
• Max voltage range: 85 to 264 VAC @ 45 to 65 Hz

Power Consumption:

• MIN: 7W
• MAX: 12W

PoE:

• /

Operating Temperature:

• -40℃ to 75℃

Storage Temperature:

• -40℃ to 75℃

Operating Relative Humidity (non-condensing):

• 5% to 95% RH

Operating Environment

• International Protection Marking IP40
• Lightning-proof Ethernet Port
• Electro Static Discharge
  • Air Discharge: ≥ ±8.0kV
  • Contact Discharge: ≥ ±6.0kV

Features

IE4300 Switch Series

• Cluster Management: Support
• Port Aggregation: Support
• Ethernet Switching: Store-and-Forward
• Jumbo Frame: Support

MAC Address Table

• 16K MAC Address
• Static MAC Address
• Black hole MAC Address
• MAC Address Learning Limit

VLAN

• Port-based VLAN
• MAC-based VLAN
• Protocol-based VLAN
• Voice VLAN
• Guest VLAN
• QinQ and Selective QinQ
• VLAN Mapping

ACL

• Time Range-based ACL
• Layers 2-4 ACL
• IPv4/IPv6 ACL
• Ingress ACL
• Rate-limited ACL

QoS

• Diff-Serv QoS
• Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR
• 802.1p DSCP remarking

DHCP

• DHCP Client
• DHCP Snooping
• DHCP Snooping Trust
• DHCP Snooping option 82 / DHCP Relay option 82

IP Services

• Static ARP
• Gratuitous ARP
• ARP anti-attack
• ARP Rate Limiting
• ICMP, ICMPv6

IP Routing

• Routed Port
• IPv4 Routing: Static Route, RIP
• IPv6 Routing: Static Route, Unicast Route

Multicast

• IGMP v1/v2/v3 Snooping
• IGMP Snooping Fast-leave
• IGMP Snooping Group-policy
• IGMP Snooping Proxy
• IPv4/IPv6 Multicast VLAN
• MLD v1/v2 Snooping
• MVR

Spanning Tree

• STP / RSTP / MSTP
• STP Root Guard
• BPDU Guard
• Loop Guard

Mirroring

• Port Mirroring
• Remote SPAN (RSPAN)

Security

• Hierarchical User Management and Password Protection
• 802.1X Authentication
• AAA Authentication
• Public Key Infrastructure (PKI)
• HWTACACS
• SSH 2.0
• IP/MAC/Port/VLAN Binding
• IP Source Guard
• HTTPs
• SSL
• Dynamic ARP Inspection, Preventing Man-in-the-Middle Attacks and ARP DoS Attacks
• SAVI

IEEE Standards

• IEEE 802.3x
• IEEE 802.3ad
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.1p
• IEEE 802.1x
• IEEE 802.1q
• IEEE 802.1d
• IEEE 802.1w
• IEEE 802.1s

Management and Maintenance

• Loading and Upgrading through Xmodem / FTP / TFTP
• Configuration through CLI, Telnet and Console Port
• TR069
• 802.1ag and 802.3ah
• SNMPv1/v2/v3
• iMC NMS
• RMON (Remote Network Monitoring)
• Web-based NMS
• System Log, Alarms based on Severities, and Output of Debugging Information
• Alarms based on Power Failure
• NTP
• Temperature Alarm
• Ping, Tracert, Telnet

Reliability

• Alarms based on Power Failure (only for IE4300 switch series)
• ERPS (G.8032)
• Alarm input/output connection
